Technical specifications
|
| Model: |

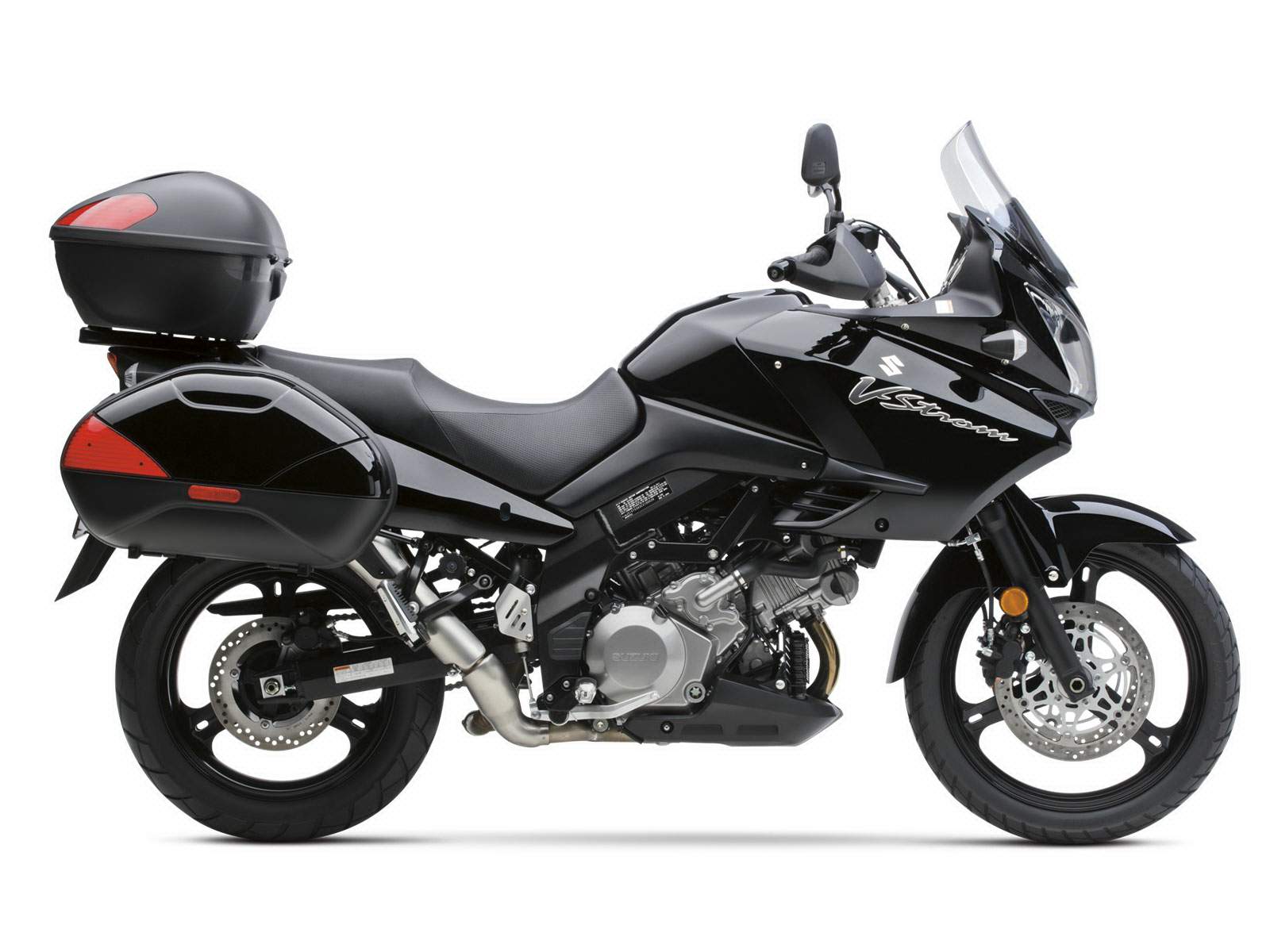

DL 1000 V-Strom |
| Years: |
2012-13 |
|
Engine:
|
Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
996 cc / 60.8 cu-in
|
|
Bore x Stroke:
|
98 X 66 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.3:1
|
|
Induction:
|
Fuel injection with 45mm throttle bodies
|
|
Ignition:
|
Electronic ignition
|
|
Spark Plug:
|
NGK, CR8EK
|
|
Starting:
|
Electric
|
|
Max Power:
|
72 kW / 98 hp @ 7400 rpm
|
|
Max Torque:
|
101 Nm / 10.3 kg-m / 74.5 lb-ft @ 6400 rpm
|
|
Clutch:
|
Wet, multiple discs, hydraulic
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Aluminium, twin spar
|
|
Front Suspension:
|
Telescopic, coil spring, oil damped, 43mm forks
|
|
Front Wheel Travel:
|
160 mm / 6.3 in
|
|
Rear Suspension:
|
Swingarm, coil spring, oil damped, adjustable for preload and rebound damping
|
|
Rear Wheel Travel:
|
162 mm / 6.4 in
|
|
Front Brakes:
|
2 x 310mm discs, 2 piston calipers
|
|
Rear Brakes:
|
Single 260 mm disc, 1 piston caliper.
|
|
Front Tyre:
|
110/80 R19
|
|
Rear Tyre:
|
150/70 R17
|
|
Trail:
|
110 mm / 4.3 in
|
|
Dimensions:
|
Length 2285 mm / 89.9 in Width 910 mm / 37.0 in Height 1335 mm / 52.5 in
|
|
Wheelbase:
|
1535 mm / 60.4 in
|
|
Ground clearance:
|
165 mm / 6.5 in
|
|
Seat Height:
|
840 mm / 33.1 in
|
|
Wet Weight:
|
236 Kg / 520 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 US gal / 4.8 Imp gal
|
|
Standing ¼ Mile:
|
12.2 sec / 181 km/h / 112.5 mph
|
|
Standing 0 - 1000m:
|
23.3 sec / 199 km/h / 123.7 mph
|
|
Top Speed:
|
207.5 km/h / 128.9 mph
|
