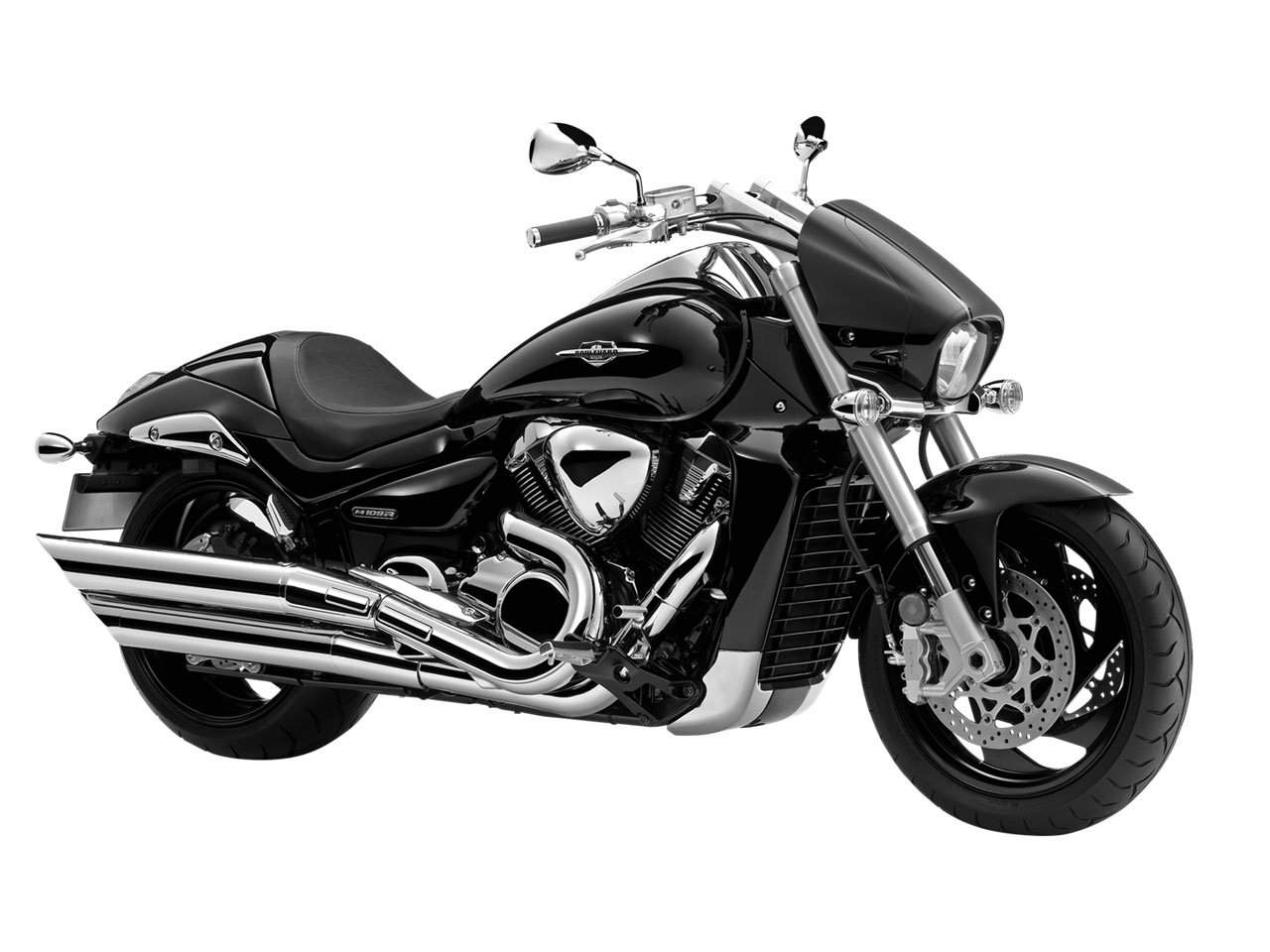

Suzuki Boulevard / Intruder M109R (2011) technical specifications

Suzuki Boulevard / Intruder M109R is produced in 2011. Engine is Four stroke, 54° V-Twin, displacement 1786 cc / 109 cu. in , produces power 92 kW / 123 hp @ 6200 rpm and 160 Nm / 16.3 kgf-m / 118 lb-ft @ 3200 rpm. Suzuki Boulevard / Intruder M109R wet weight is 347 kg / 764 lbs. Suzuki Boulevard / Intruder M109R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Boulevard / Intruder M109R
Years:	2011
Engine:	Four stroke, 54° V-Twin
Capacity:	1786 cc / 109 cu. in
Bore x Stroke:	112 x 90.5 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Lubrication:	Semi-dry sump
Induction:	EFI, 2 x 56mm throttle bodies
Ignition:	Electronic ignition (Transistorised)
Starting:	Electric
Max Power:	92 kW / 123 hp @ 6200 rpm
Max Torque:	160 Nm / 16.3 kgf-m / 118 lb-ft @ 3200 rpm
Clutch:	Wet multi-plate type
Transmission:	5 Speed
Final Drive:	Shaft
Primary Reduction:	1.647
Gear Ratio:	1st 2.188 (35/16) / 2nd 1.400 (28/20) / 3rd 1.038 (27/26) / 4th 0.828 (24/29) / 5th 0.686 (24/35)
Front Suspension:	Inverted, 46 mm stanchions
Front Wheel Travel:	130 mm / 5.1"
Rear Suspension:	Single damper, preload adjustable
Rear Wheel Travel:	120 mm / 4.7"
Front Brakes:	2 x 310 mm Discs, 2 piston calipers
Rear Brakes:	Single 274 mm disc, 2 piston caliper
Front Tyre:	130/70 R18
Rear Tyre:	240/40 R18
Dimensions:	Length 2450 mm / 95.5 in Width 875 mm / 34.4 in
Wheelbase:	1710 mm / 67.3 in
Ground Clearance:	130 mm / 5.1 in
Seat Height:	705 mm / 27.8 in
Wet Weight:	347 kg / 764 lbs
Fuel Capacity:	19 Litres / 5.1 US gal / 4.2 Imp gal
