Technical specifications
|
| Model: |

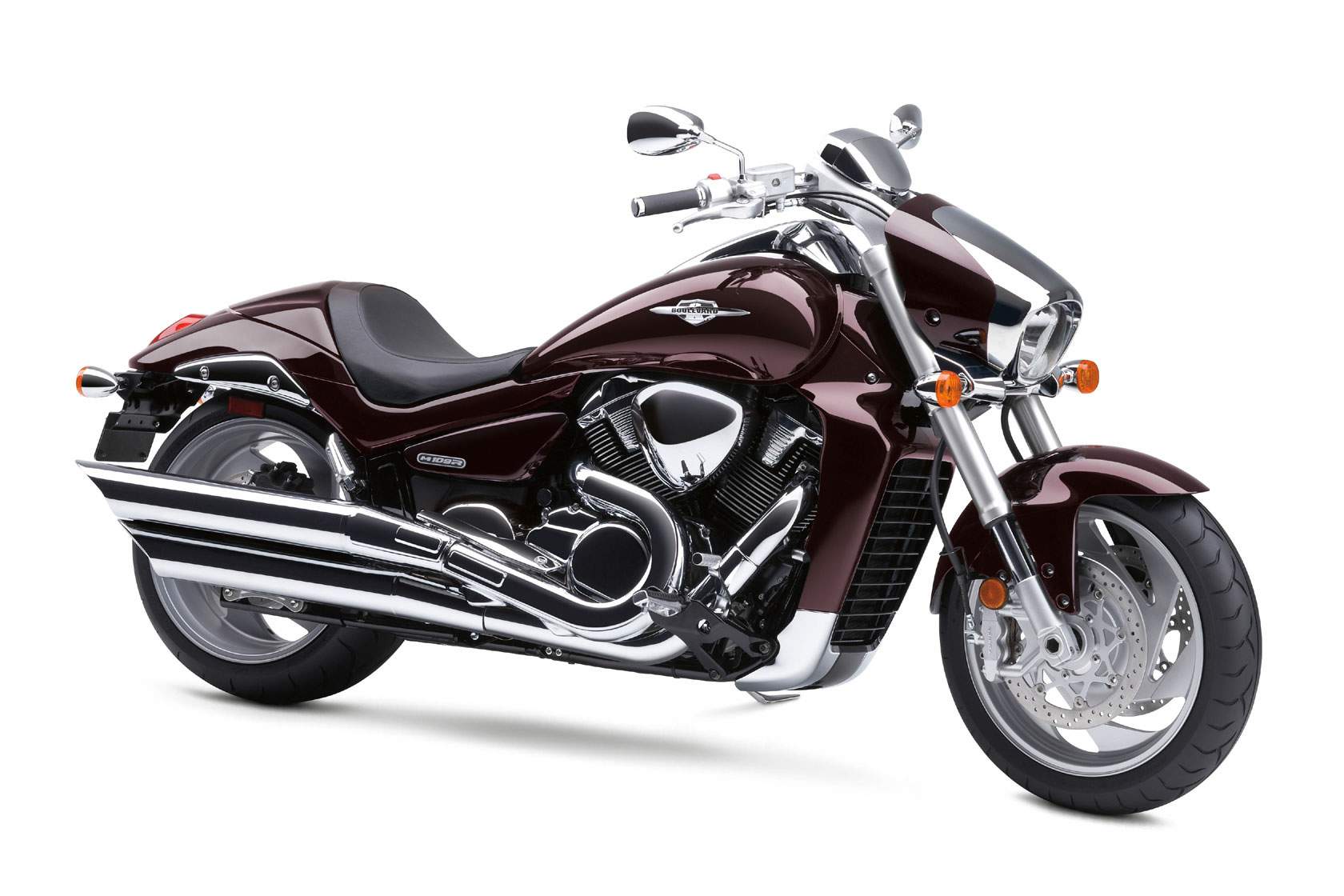

Boulevard / Intruder M109R |
| Years: |
2008-09 |
|
Engine:
|
Four stroke, 54° V-Twin
|
|
Capacity:
|
1786 cc / 109 cu. in
|
|
Bore x Stroke:
|
112 x 90.5 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.5:1
|
|
Lubrication:
|
Semi-dry sump
|
|
Induction:
|
EFI, 2 x 56mm throttle bodies
|
|
Ignition:
|
Electronic ignition (Transistorised)
|
|
Starting:
|
Electric
|
|
Max Power:
|
92 kW / 123 hp @ 6200 rpm
|
|
Max Torque:
|
160 Nm / 16.3 kgf-m / 118 lb-ft @ 3200 rpm
|
|
Clutch:
|
Wet multi-plate type
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Primary Reduction:
|
1.647
|
|
Gear Ratio:
|
1st 2.188 (35/16) / 2nd 1.400 (28/20) / 3rd 1.038 (27/26) / 4th 0.828 (24/29) / 5th 0.686 (24/35)
|
|
Front Suspension:
|
Inverted, 46mm stanchions
|
|
Front Wheel Travel:
|
130 mm / 5.1"
|
|
Rear Suspension:
|
Single damper, preload adjustable
|
|
Rear Wheel Travel:
|
120 mm / 4.7"
|
|
Front Brakes:
|
2 x 310 mm Discs, 2 piston calipers
|
|
Rear Brakes:
|
Single 274 mm disc, 2 piston caliper
|
|
Front Tyre:
|
130/70 R18
|
|
Rear Tyre:
|
240/40 R18
|
|
Dimensions:
|
Length 2450 mm / 95.5 in Width 875 mm / 34.4 in
|
|
Wheelbase:
|
1710 mm / 67.3 in
|
|
Ground Clearance:
|
130 mm / 5.1 in
|
|
Seat Height:
|
705 mm / 27.8 in
|
|
Wet Weight:
|
347 kg / 764 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.1 US gal / 4.2 Imp gal
|
