Technical specifications
|
| Model: |

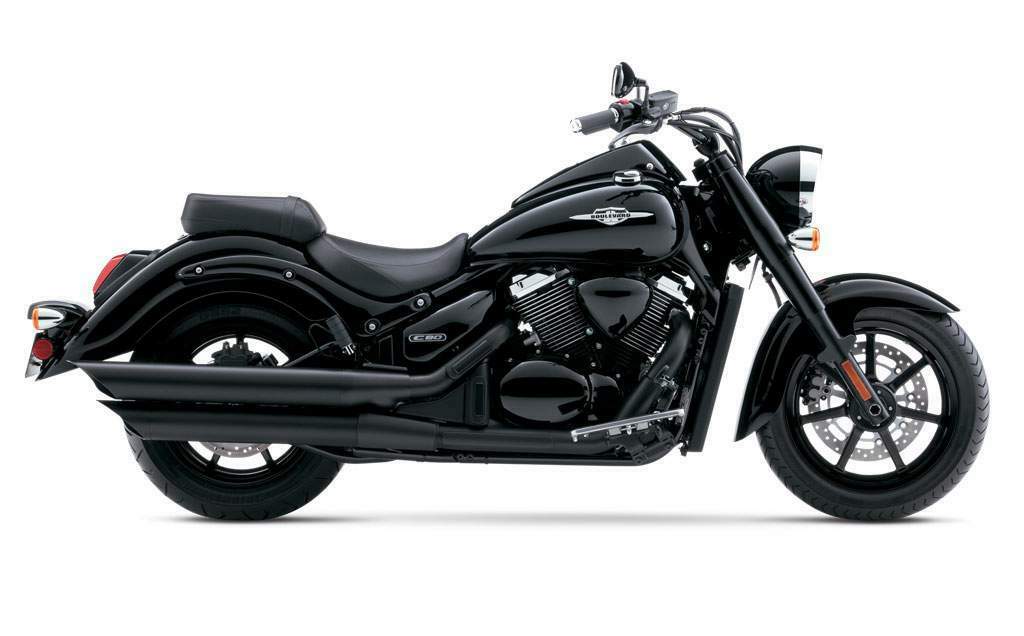

Boulevard C90 B.O.S.S |
| Years: |
2015-16 |
|
Engine:
|
Four stroke, 54° V-twin, SOHC, 3 valves per cylinder
|
|
Capacity:
|
1462 cc / 89.2 cu-in
|
|
Bore x Stroke:
|
96 x 101 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
9.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Fuel injected
|
|
Ignition:
|
Digital transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
49.2 kW / 66 hp @ 4800 rpm
|
|
Max Torque:
|
115 Nm /11.7 kgf-m / 84.8 ft-lbs @ 2800 rpm
|
|
Frame:
|
Double cradle steel frame
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
Telescopic, coil springs, oil damped
|
|
Rear Suspension:
|
Link type, coil spring, oil damped
|
|
Front Brakes:
|
Dual 300 mm discs, 4 piston caliper
|
|
Rear Brakes:
|
Single 180 mm disc, 2 piston caliper
|
|
Front Tyre:
|
130/80-17M/C 65H, tubeless
|
|
Rear Tyre:
|
200/60-16M/C 79H, tubeless
|
|
Rake:
|
32°
|
|
Dimensions:
|
Length: 2560 mm / 100.8 in Width: 990 mm / 39.0 in
|
|
Wheelbase:
|
1675 mm / 65.9 in
|
|
Ground Clearance:
|
140 mm / 5.5 in
|
|
Seat Height:
|
720 mm / 28.3 in
|
|
Wet Weight:
|
344 kg / 758 lbs.
|
|
Fuel Capacity:
|
18 Litres / 4.8 US gal
|
