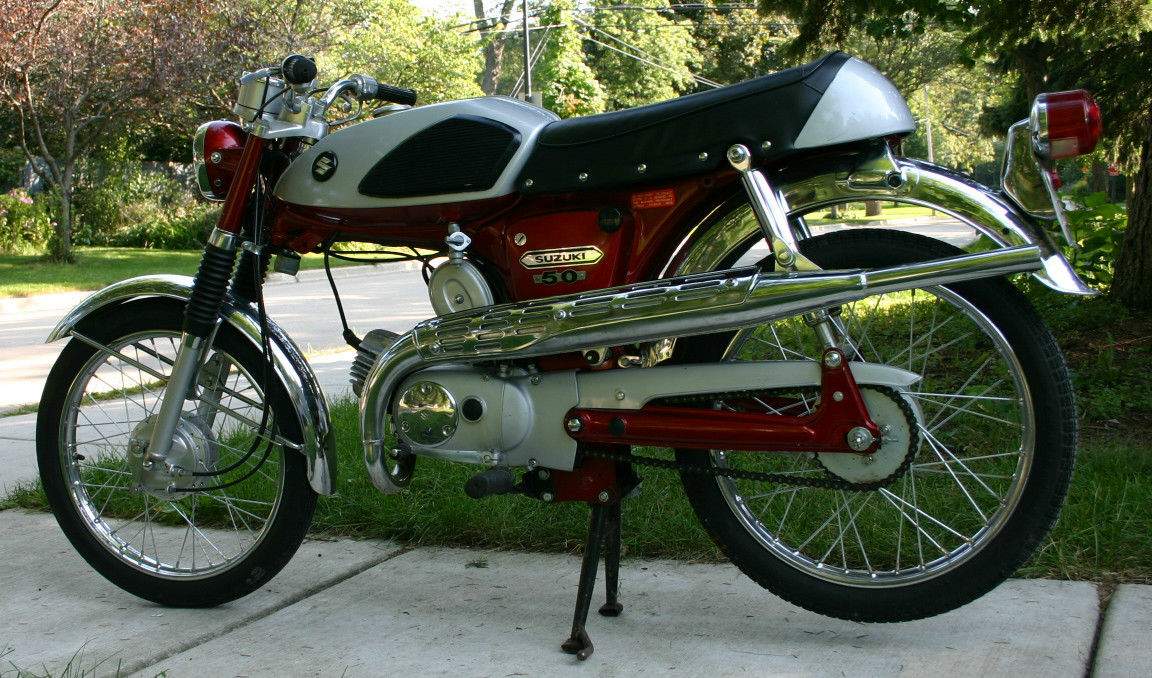

Suzuki AS 50 Maverick (1968-69) technical specifications
Suzuki AS 50 Maverick is produced in 1968-69. Engine is Two stroke, rotary valve, single cylinder, displacement 49 cc / 3.0 cu in , produces power 3.6 kW / 4.8 hp @ 8500 rpm and 4.13 Nm / 0.42 kgf-m / 3.05 ft-lb @ 8000 rpm. Suzuki AS 50 Maverick top speed is 95 km/h / 59 mph. Suzuki AS 50 Maverick weighs 73 kg / 165 lbs. Suzuki AS 50 Maverick has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | AS 50 Maverick |
| Years: | 1968-69 |
| Engine: | Two stroke, rotary valve, single cylinder |
| Capacity: | 49 cc / 3.0 cu in |
| Compression Ratio: | 6.7:1 |
| Cooling System: | Air cooled |
| Bore x Stroke: | 41 x 37.8 mm |
| Lubrication System: | Suzuki Posi-Force |
| Induction: | Carburetor VM16 |
| Starting: | Kick |
| Max Power: | 3.6 kW / 4.8 hp @ 8500 rpm |
| Max Torque: | 4.13 Nm / 0.42 kgf-m / 3.05 ft-lb @ 8000 rpm |
| Clutch: | Wet multi-plate |
| Transmission: | 5-Speed, constant mesh, return change |
| Final Drive: | Chain |
| Frame: | Pressed steel |
| Front Suspension: | Telescopic fork, oil damped |
| Rear Suspension: | Dual shock, swingarm, oil damped |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.25-17 4PR |
| Rear Tyre: | 2.25-17 4PR |
| Dimensions: | Length: 1785 mm / 70.3" Width: 630 mm / 24.8" Height: 895 mm / 35.3" |
| Wheelbase: | 1161 mm / 45.7" |
| Ground Clearance: | 150 mm / 5.9" |
| Dry Weight: | 73 kg / 165 lbs |
| Fuel Capacity: | 6.5 L / 1.73 US gal |
| Fuel Reserve: | 1 L / 2.1 US pt |
| Standing ¼ Mile: | 13.1 sec |
| Top Speed: | 95 km/h / 59 mph |
