Technical specifications
|
| Model: |

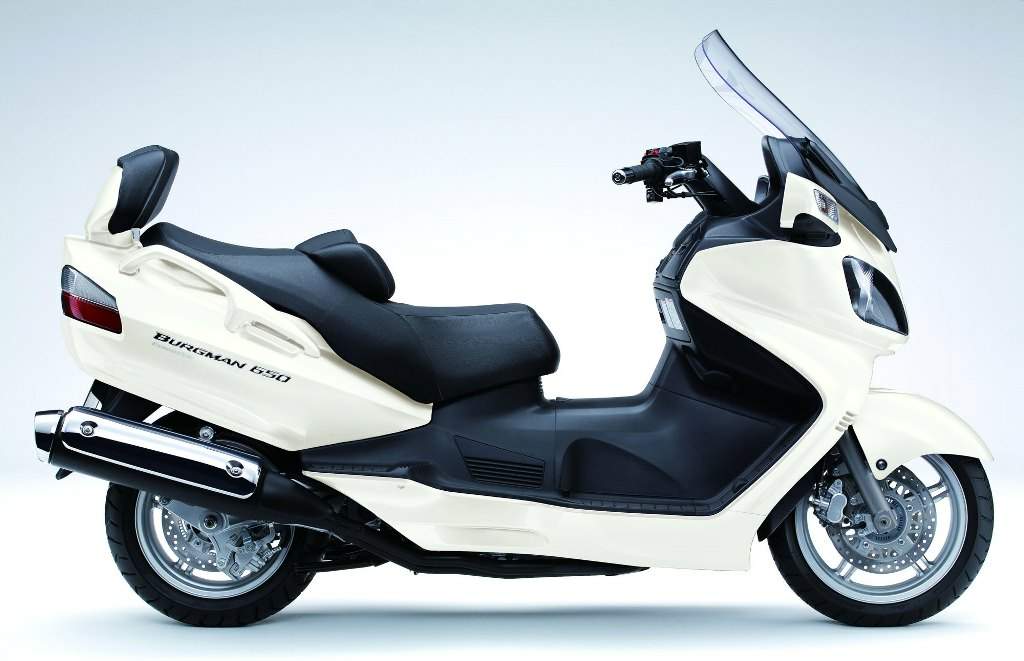

AN 650 Burgman |
| Years: |
2012-13 |
|
Engine:
|
Four stroke, twin cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
638 cc / 38.9 cu in
|
|
Bore x Stroke:
|
75.5 x 71.3 mm
|
|
Compression Ratio:
|
11.2:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Electronic fuel injection
|
|
Ignition:
|
Digital electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
40 kW / 55 hp @ 7000 rpm
|
|
Max Torque:
|
62 Nm / 6.3 kgf-m / 45.7 lb-ft @ 5000 rpm
|
|
Transmission:
|
Electronically-controlled, CVT- automatic and manual shift
|
|
Final Drive:
|
V-belt
|
|
Frame:
|
Tubular steel
|
|
Front Suspension:
|
Telescopic front fork with 41mm inner tubes, coil spring, oil damped
|
|
Rear Suspension:
|
Swingarm-style, twin preload-adjustable shock absorbers and a separate aluminum swingarm, coil spring, oil damped
|
|
Front Wheel Travel:
|
110 mm / 4.3"
|
|
Rear Wheel Travel:
|
100 mm / 3.9"
|
|
Front Brakes:
|
2 x 260 mm discs, 2 piston calipers, ABS
|
|
Rear Brakes:
|
Single 250 mm disc, 2 piston caliper, ABS
|
|
Front Tyre:
|
120/70 R15M/C 56H, tubeless
|
|
Rear Tyre:
|
160/60 R14M/C 65H, tubeless
|
|
Dimensions:
|
Length: 2265 mm / 89.2" Width: 810 mm / 31.9"
|
|
Wheelbase:
|
1585 mm / 62.4"
|
|
Seat Height:
|
755 mm / 29.7"
|
|
Ground Clearance:
|
125 mm / 4.9"
|
|
Dry Weight:
|
238 kg / 525 lbs
|
|
Wet Weight:
|
277 kg / 611 lbs
|
|
Fuel Capacity:
|
15 Litres / 4.0 US gal
|
|
Top Speed:
|
177 km/h / 110 mph
|
|
¼ Mile Acceleration:
|
16 sec
|
