1924 Sunbeam Model 4 de Luxe technical specifications
Technical specifications
|
|
|---|---|
| Model: | Model 4 de Luxe |
| Years: | 1924-26 |

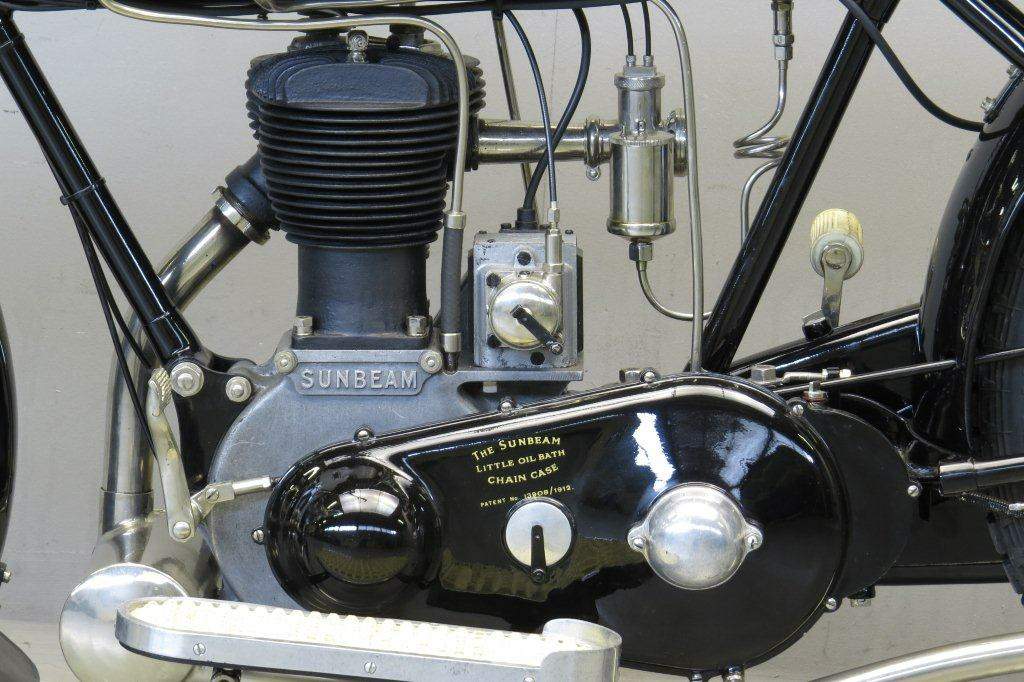

| Engine: | Single cylinder, side valve |
| Capacity: | 596 cc / 36.4 cu in |
| Bore x Stroke: | 85 x 105.5 mm |
| Cooling System: | Air cooled |
| Exhaust: | Single |
| Starting: | Kick |
| Power: | 3.4 kW / 4.5 hp |
| Transmission: | 3-Speed |
| Final Drive: | Chain |
| Frame: | Single downtube cradle |
| Front Suspension: | Druid forks |
| Rear Suspension: | Rigid, spring loaded saddle |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Wheels: | Steel, laced wire spokes |
