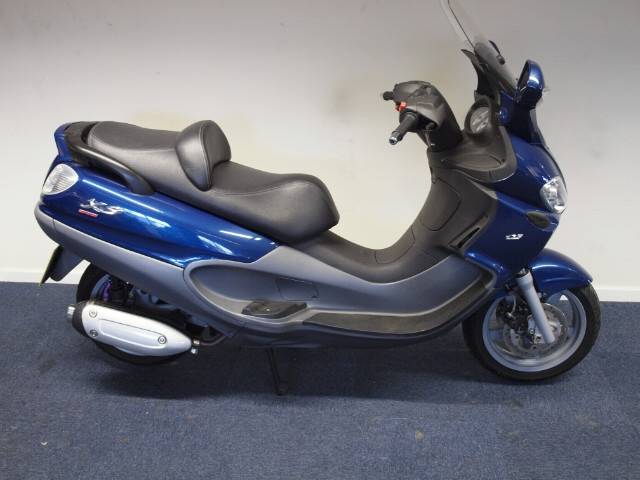

Piaggio X9 Evolution 500 (2001-04) technical specifications

Piaggio X9 Evolution 500 is produced in 2001-04. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 460 cc / 28.1 cub in. , produces power 29.1 kW / 39 hp @ 7250 rpm. Piaggio X9 Evolution 500 weighs 206 kg / 454 lbs. Piaggio X9 Evolution 500 has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	X9 Evolution 500
Years:	2001-04
Engine:	Four stroke, single cylinder, SOHC, 4 valve
Capacity:	460 cc / 28.1 cub in.
Bore x Stroke:	92 x 69 mm
Compression Ratio:	10.5:1
Cooling System:	Liquid cooled
Fuel System:	Electronic fuel injection
Starting:	Electric
Max Power:	29.1 kW / 39 hp @ 7250 rpm
Max Troque:	43 Nm / 4.4 kgf-m / 31.7 ft-lbs @ 5500 rpm
Transmission:	CVT, twist and go
Final Drive:	Belt
Front Suspension:	Hydraulic telescopic fork
Rear Suspension:	Dual, preload adjustable shocks
Front Brakes:	Double disc, 260 mm, 2 -piston, Brembo (ABS from 2006)
Rear Brakes:	Single disc, 240 mm, 2-piston caliper, Brembo (ABS from 2006)
Wheels:	Alloy rims and spokes
Front Tyre:	120/70 - 14 in.
Rear Tyre:	120/70 - 14 in.
Dimensions:	Length: 2130 mm / 83.9 in.
Wheelbase:	1529 mm / 60.2 in.
Seat Height:	780 mm / 30.7 in.
Dry Weight:	206 kg / 454 lbs
Fuel Capacity:	15 L / 3.9 US gal
Colours:	Silver, Black, Imperial blue
Review:	Motor Scooter Guide, Motorcyclist Online
