Piaggio X10 350 (2012) technical specifications

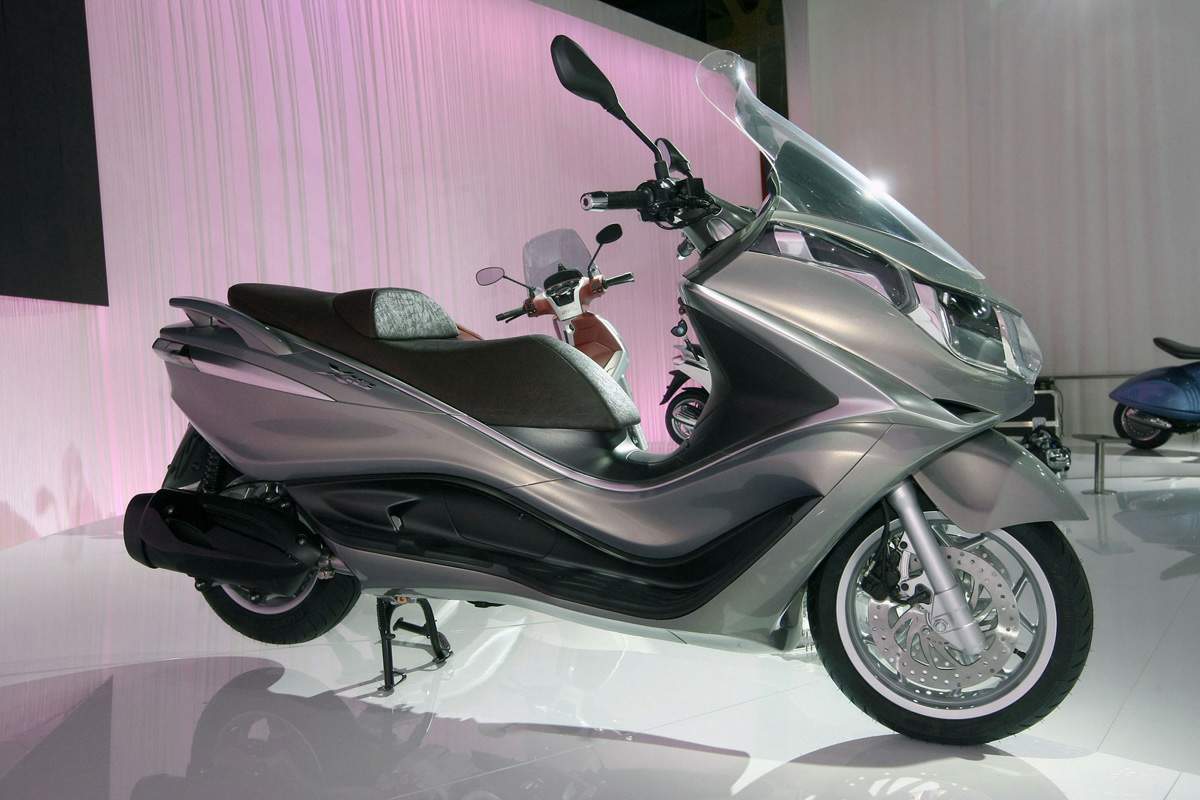

Piaggio X10 350 is produced in 2012. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 330 cc / 20.1 cub in. , produces power 24.6 kW / 33 hp @ 8250 rpm. Piaggio X10 350 weighs 196 kg / 432 lbs (200 kg / 440 lbs Executive version). Piaggio X10 350 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	X10 350
Years:	2012
Engine:	Four stroke, single cylinder, SOHC, 4 valve
Capacity:	330 cc / 20.1 cub in.
Bore x Stroke:	78 x 69 mm
Compression Ratio:	12.0:1
Cooling System:	Liquid cooled
Lubrication:	Dry sump
Fuel System:	EFI
Ignition:	Port Injected Alfa/n type with closed loop system, Lambda sensor in exhaust pipe and three-way double catalytic converter / Electric (Bendix) with automatic decompressor and automatic choke
Starting:	Electric with oil-bath free wheel
Clutch:	Automatic multi disc wet centrifugal
Max Power:	24.6 kW / 33 hp @ 8250 rpm
Max Toque:	32.3 Nm / 3.29 kgf-m / 23.8 ft-lb @ 6250 rpm
Transmission:	VT automatic transmission with centrifugal clutch
Final Drive:	Belt
Frame:	Double-cradle chassis in high strength steel tube
Front Suspension:	Hydraulic telescopic fork, Ø35 mm
Front Wheel Travel:	115 mm / 4.5 in.
Rear Suspension:	Two double-acting hydraulic shock absorbers with adjustable spring preloading in 4 positions.
Rear Wheel Travel:	100 mm / 3.9 in.
Front Brakes:	Single 280mm disc (ABS standard on Executive version)
Rear Brakes:	Single 240mm disc (ABS standard on Executive version)
Front Rim:	3.50 x 15 in.
Front Tyre:	120/70 - 15 in
Rear Rim:	4.00 x 13 in.
Rear Tyre:	150/70 - 13 in
Dimensions:	Length: 2265 mm / 89.2 in. Width: 800 mm / 31.5 in.
Wheelbase:	1625 mm / 64.0 in.
Seat Height:	760 mm / 29.9 in.
Dry Weight:	196 kg / 432 lbs (200 kg / 440 lbs Executive version)
Fuel Capacity:	15.5 L / 4.1 US gal
Reserve:	2 L / 0.5 US gal
