Technical specifications
|
| Model: |

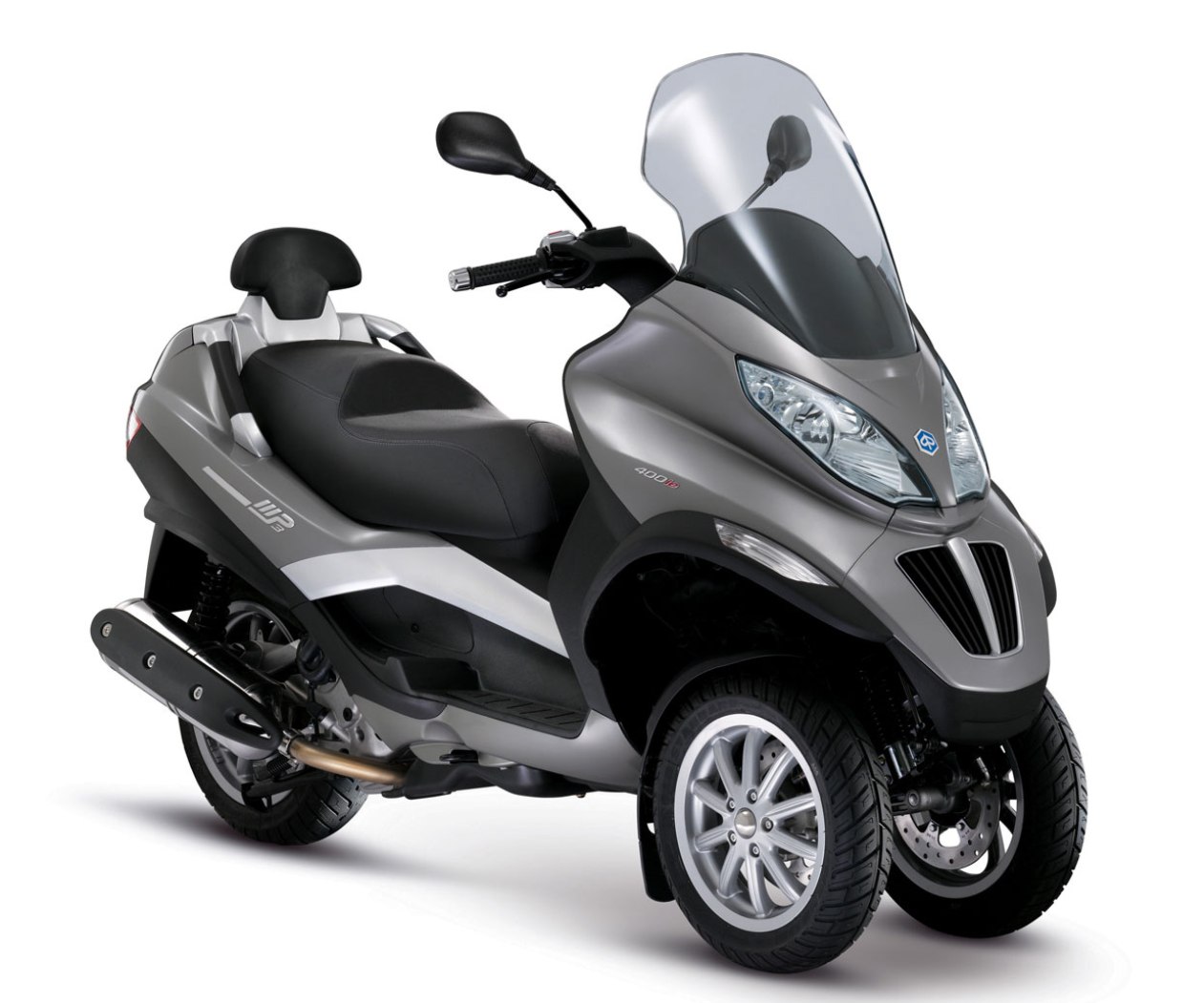

MP3 400 ie |
| Years: |
2012-13 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve Piaggio MASTER, catalysed
|
|
Capacity:
|
398.9 cc / 24.3 cub in.
|
|
Bore x Stroke:
|
69 x 85.5 mm
|
|
Compression Ratio:
|
10.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Fuel System:
|
EFI
|
|
Ignition:
|
Electronic inductive discharge, integrated variable timing
|
|
Starting:
|
Electric
|
|
Max Power:
|
25 kW / 34 hp @ 7500 rpm
|
|
Max Toque:
|
37 Nm / 27.3 lb-ft. @ 5000 rpm
|
|
Transmission:
|
CVT, Twist and go
|
|
Frame:
|
Twin cradle, tubes of high tensile steel
|
|
Front Suspension:
|
Parallelogram composed of four aluminium arms supporting two steering tubes cantilevers
|
|
Front Wheel Travel:
|
85mm / 3.3 in.
|
|
Rear Suspension:
|
Two dual effect hydraulic shock absorbers and adjustable spring pre-load
|
|
Rear Wheel Travel:
|
110mm / 4.3 in.
|
|
Front Brakes:
|
2 x 240mm discs 2 piston caliper, ABS
|
|
Rear Brakes:
|
Single 240mm disc, 2 piston caliper, ABS
|
|
Front Tyre:
|
120/70-12 in.
|
|
Rear Tyre:
|
140/70-15 in/
|
|
Wheelbase:
|
1549 mm / 61 in.
|
|
Seat Height:
|
785 mm / 30.9 in.
|
|
Wet Weight:
|
238 kg / 524 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.2 US gal
|
