Technical specifications
|
| Model: |

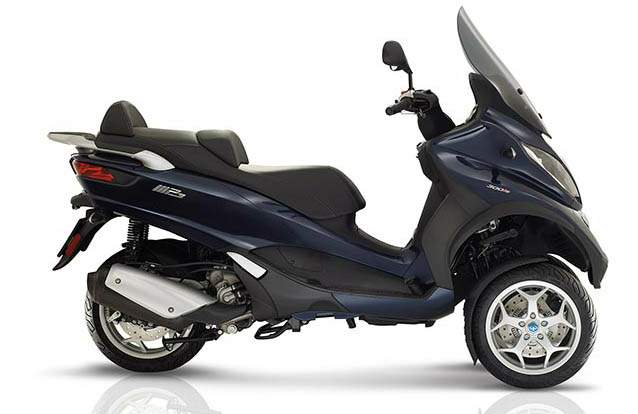

MP3 300 Sport / Business ABS ASR |
| Years: |
2016- |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
278 cc / 17.0 cub in.
|
|
Bore x Stroke:
|
75 mm x 63 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
Fuel system: Electronic fuel injection
|
|
Emission:
|
Euro 2
|
|
Ignition:
|
Port Injected Alfa/n type with closed loop system, Lambda sensor in exhaust pipe and three-way double catalytic converter
|
|
Starting:
|
Electric
|
|
Max Power:
|
16.6 kW / 22.8 hp @ 7500 rpm
|
|
Max Toque:
|
24 Nm / 17.7 lb-ft @ 5750 rpm
|
|
Clutch:
|
Automatic, centrifugal dry clutch
|
|
Transmission:
|
CVT with torque server
|
|
Final Drive:
|
Belt
|
|
Frame:
|
Double cradle in high strength tubular steel
|
|
Front Suspension:
|
Tilting parallelogram with 4 arms supporting 2 steering tubes.
|
|
Front Wheel Travel:
|
85 mm / 3.3 in.
|
|
Rear Suspension:
|
Two double acting hydraulic shock absorbers
|
|
Rear Wheel Travel:
|
110 mm / 4.3 in
|
|
Front Brakes:
|
2x 240mm discs, One disc brake per wheel, c 2 piston caliper
|
|
Rear Brakes:
|
Single 240mm disc
|
|
Wheels:
|
Aluminium alloy
|
|
Front Tyre:
|
2 x 110/70 -13
|
|
Rear Tyre:
|
140/60-14
|
|
Dimensions:
|
Length 2160 mm / 85.0 in Width 760 mm / 29.9 in Height 1350 mm / 53.1 in
|
|
Wheelbase:
|
1550 mm / 61.0 in.
|
|
Seat Height:
|
780 mm / 30.7 in.
|
|
Dry Weight:
|
211 kg / 465 lbs
|
|
Fuel Capacity:
|
10.8 Litres / 2.8 US gal
|
