Technical specifications
|
| Model: |

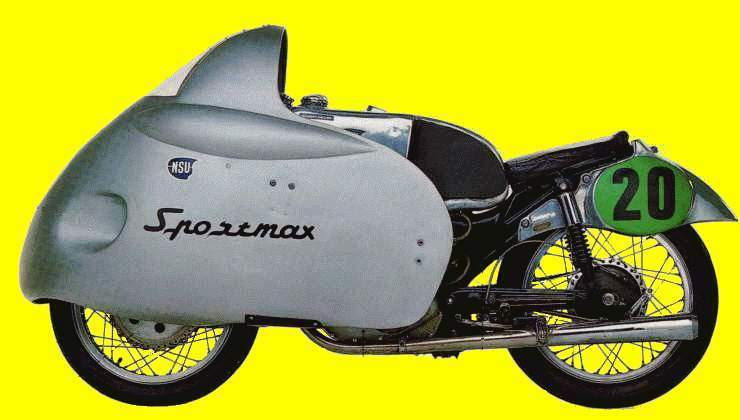

Sportmax |
| Years: |
1954-56 |
|
Engine:
|
Single cylinder, 4 stroke, OHC
|
|
Capacity:
|
247 cc / 15 cub in
|
|
Bore x Stroke:
|
69 x 66 mm
|
|
Cooling:
|
Air/Oil cooled
|
|
Lubrication:
|
Dry sump
|
|
Clutch:
|
Multi-plate
|
|
Starting:
|
Kick start
|
|
Ignition:
|
Coil
|
|
Carburetor:
|
BING 2/26/25
|
|
Exhaust System:
|
Twin, steel
|
|
Max Power:
|
20.6 kW / 28 hp @ 10 00 rpm
|
|
Compression Ratio:
|
7.4:1
|
|
Transmission:
|
Four speed block
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Single-bar stamped plate with engine protection and suspended
|
|
Front suspension:
|
Swining link suspension
|
|
Rear suspension:
|
Telescopic suspension
|
|
Brakes (front and back):
|
Drum
|
|
Wet Weight:
|
155 kg / 342 lbs
|
|
Top Speed:
|
212 km/h / 131.7+ mph
|
