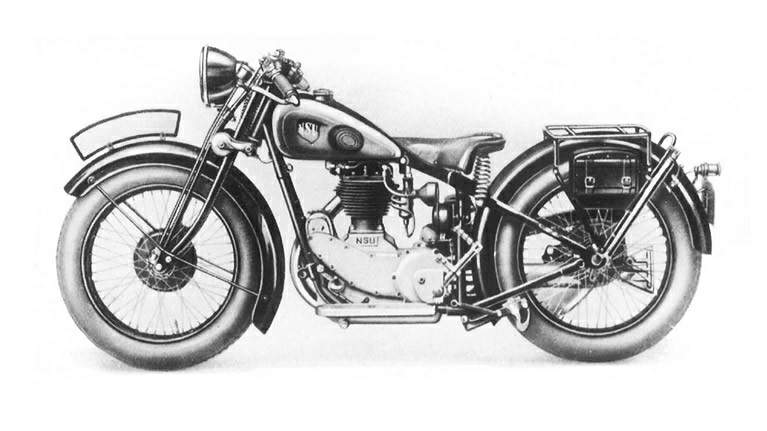

NSU 501 OSL (1930-36) technical specifications
NSU 501 OSL is produced in 1930-36. Engine is Single cylinder, 4 stroke, OHC, displacement 494 cc / 30.1 cub in , produces power 8.1 kW / 11 hp @ 5020 rpm. NSU 501 OSL top speed is 100 km/h / 62 mph. NSU 501 OSL weighs 165 kg / 364 lbs. NSU 501 OSL has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 501 OSL |
| Years: | 1930-36 |
| Engine: | Single cylinder, 4 stroke, OHC |
| Capacity: | 494 cc / 30.1 cub in |
| Bore x Stroke: | 80 x 99 |
| Cooling: | Air/Oil cooled |
| Lubrication: | Gear driven oil pump |
| Ignition: | Magneto |
| Starting: | Kick start |
| Max Power: | 8.1 kW / 11 hp @ 5020 rpm |
| Compression: | 1:6 |
| Transmission: | 3 Speed |
| Final Drive: | Chain in oil bath |
| Font Suspension: | Spring loaded fork |
| Frame: | Steel, double pipe |
| Wheels: | 19 in, spokes, high pressure tyres |
| Rear Brake: | Internal shoe |
| Dry Weight: | 165 kg / 364 lbs |
| Top Speed: | 100 km/h / 62 mph |
