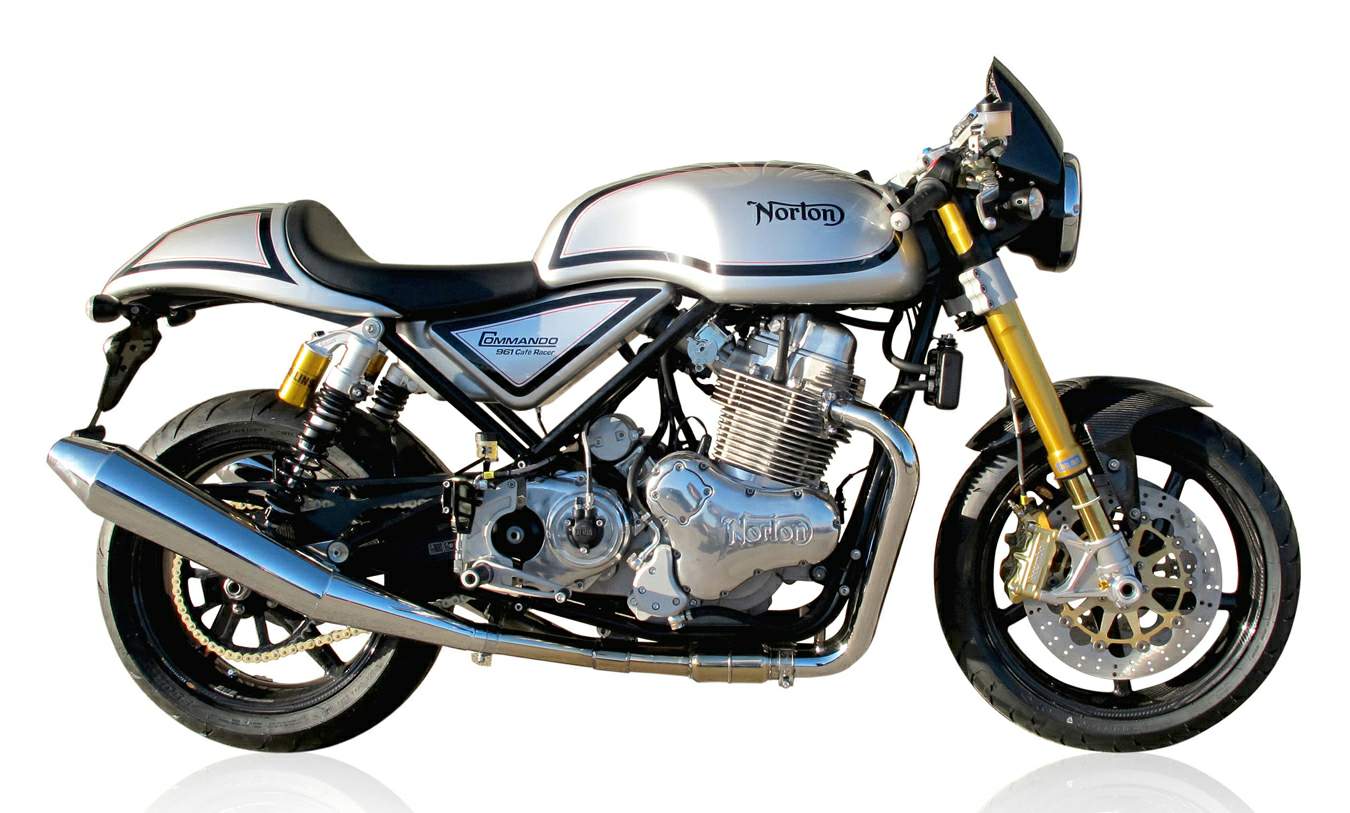

Norton Commando 961 Café Racer (2014-15) technical specifications

Norton Commando 961 Café Racer is produced in 2014-15. Engine is Four stroke, parallel twin with push-rod valve actuation, 3 bearing crank balancer shaft, 2 valves per cylinder, displacement 961 cc / 58.6 cu in , produces power 59.7 kW / 80 hp @ 6500 rpm and 90 Nm / 9.2 kgf-m / 65 ft-lb @ 5200 rpm. Norton Commando 961 Café Racer weighs 188 kg / 415 lbs. Norton Commando 961 Café Racer has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Commando 961 Café Racer
Years:	2014-15
Engine:	Four stroke, parallel twin with push-rod valve actuation, 3 bearing crank balancer shaft, 2 valves per cylinder
Capacity:	961 cc / 58.6 cu in
Bore x Stroke:	88 x 79 mm
Compression Ratio:	10.1:1
Cooling System:	Air cooled
Lubrication:	Dry sump
Exhaust:	Café Sports exhaust, Euro 3 compliant
Induction:	Fuel injected
Ignition:	Electronic
Starting:	Electric
Max Power:	59.7 kW / 80 hp @ 6500 rpm
Max Torque:	90 Nm / 9.2 kgf-m / 65 ft-lb @ 5200 rpm
Clutch:	Wet multi-plate with hydraulic lifter
Transmission:	5 Speed, constant mesh
Final Drive:	Chain, 525 "O" ring
Frame:	Tubular steel with integral oil tank
Rake:	24.5°
Trail:	99 mm / 3.9 in
Front Suspension:	Ø43 mm Öhlins USD, adjustable preload, compression, and rebound damping.
Front Wheel Travel:	115 mm / 4.53 in
Rear Suspension:	Öhlins reservoir-style twin shocks, adjustable ride height, preload, compression, and rebound damping.
Rear Wheel Travel:	100 mm / 3.94 in
Front Brakes:	Brembo 2 x Ø320 mm fully-floating high carbon stainless steel discs, 4 piston Brembo radially mounted calipers. Brembo front brake master cylinder with integral reservoir
Rear Brakes:	Brembo single Ø220 mm disc, 2 piston caliper. Brembo rear brake master cylinder
Front Wheel:	3.50 x 17", 36 spoke
Rear Wheel:	5.50 x 17", 40 spoke
Front Tyre:	120/70 -17"
Rear Tyre:	180/55 -17"
Wheelbase:	1420 mm / 55.9 in
Seat Height:	813 mm / 32 in
Dry Weight:	188 kg / 415 lbs
Fuel Capacity:	17 Litres / 4.5 US gal
