Technical specifications
|
| Model: |

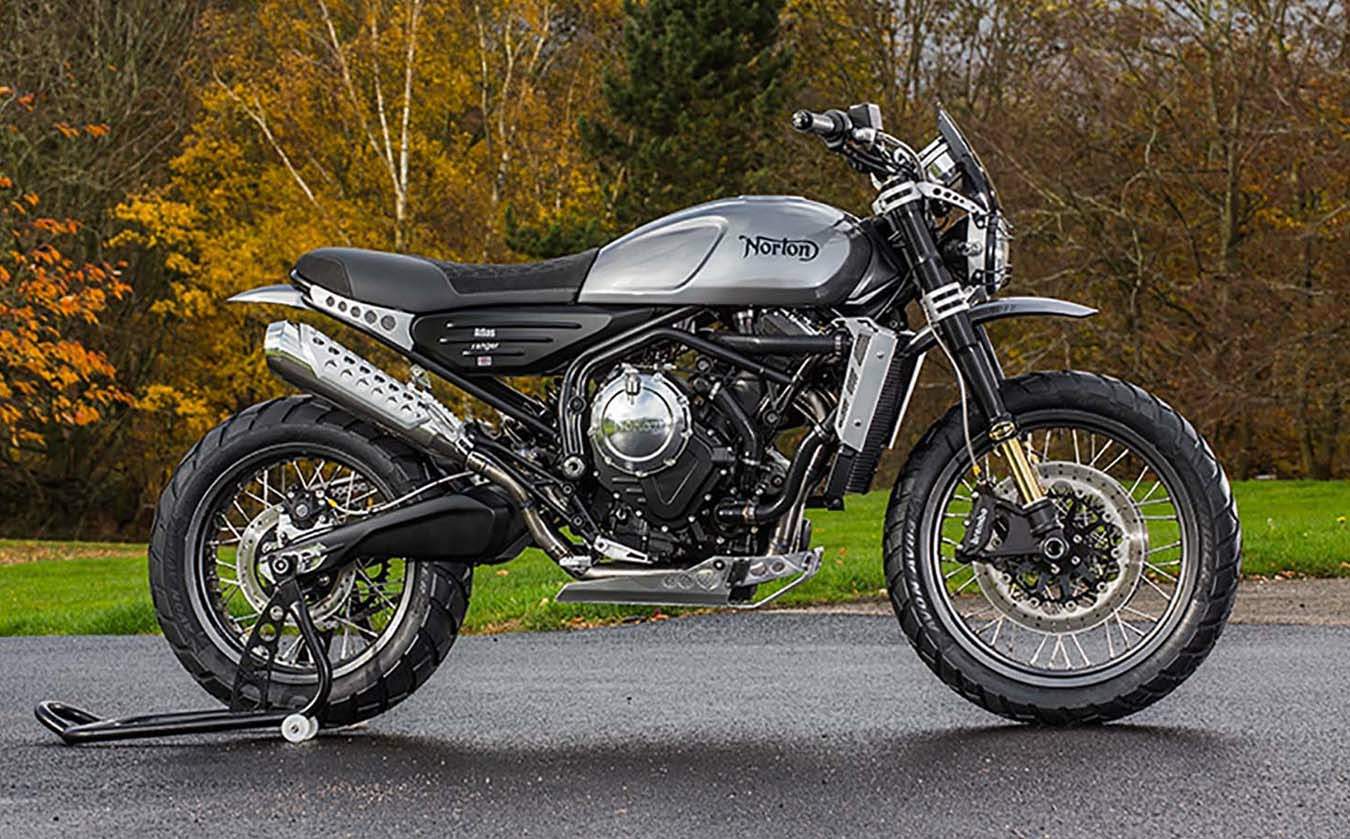

Atlas Ranger |
| Years: |
2019 |
|
Engine:
|
Four stroke, parallel twin. 270 degree firing order. Chain driven DOHC, with idler gear.
|
|
Capacity:
|
650 cc / 39.6 cu-in
|
|
Bore x Stroke:
|
82 x 61.5mm
|
|
Compression Ratio:
|
11.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Emission:
|
Euro 4, Full compliance including secondary air injection and EVAP.
|
|
Induction:
|
Electronic fuel injection system. 4 fuel injectors. Full drive-by-wire system.
|
|
Lighting:
|
Full LED lighting system including super bright high and low beam, daytime running lights, rear lamp and indicators.
|
|
Starting:
|
Electric
|
|
Max Power:
|
84 hp / 62.6 kW @ 11000rpm
|
|
Max Torque:
|
64 Nm / 47.9 lb-ft
|
|
Transmission:
|
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Twin tube seamless steel perimeter chassis with aluminium swingarm mount. Swingarm, Braced twin spar cast aluminium.
|
|
Front Suspension:
|
50mm diameter Roadholder USD forks. Preload, compression and rebound adjustable
|
|
Front Wheel Travel:
|
200 mm / 7.8 in
|
|
Rear Suspension:
|
Roadholder monoshock with rising rate linkage and piggyback reservoir. Adjustable preload.
|
|
Rear Wheel Travel:
|
200 mm / 7.8 in
|
|
Front Brakes:
|
2 x 320mm full floating Brembo discs. Radially mounted twin Brembo monoblock callipers with ABS. Brembo master cylinder.
|
|
Rear Brakes:
|
Single 245mm Brembo disc. Brembo twin piston rear calliper with ABS. Brembo master cylinder.
|
|
Front Wheel:
|
19 in spoke wheel with Titanium coloured aluminium rim
|
|
Rear Wheel:
|
17 inch spoke wheel with Titanium coloured aluminium rim
|
|
Front Tyre:
|
120/70 R19 Avon Trekrider tyre
|
|
Rear Tyre:
|
170/60 R17 Avon Trekrider tyre
|
|
Headstock Angle:
|
24.2°
|
|
Wheelbase:
|
1470 mm / 57.8 in
|
|
Seat Height:
|
867 mm / 34.1 in
|
|
Dry Weight:
|
178 kg / 392.4 lbs
|
|
Fuel Capacity:
|
15 Litres / 3.9 US gal
|
