MV Agusta Superveloce 800 S (2021) technical specifications

MV Agusta Superveloce 800 S technical specifications

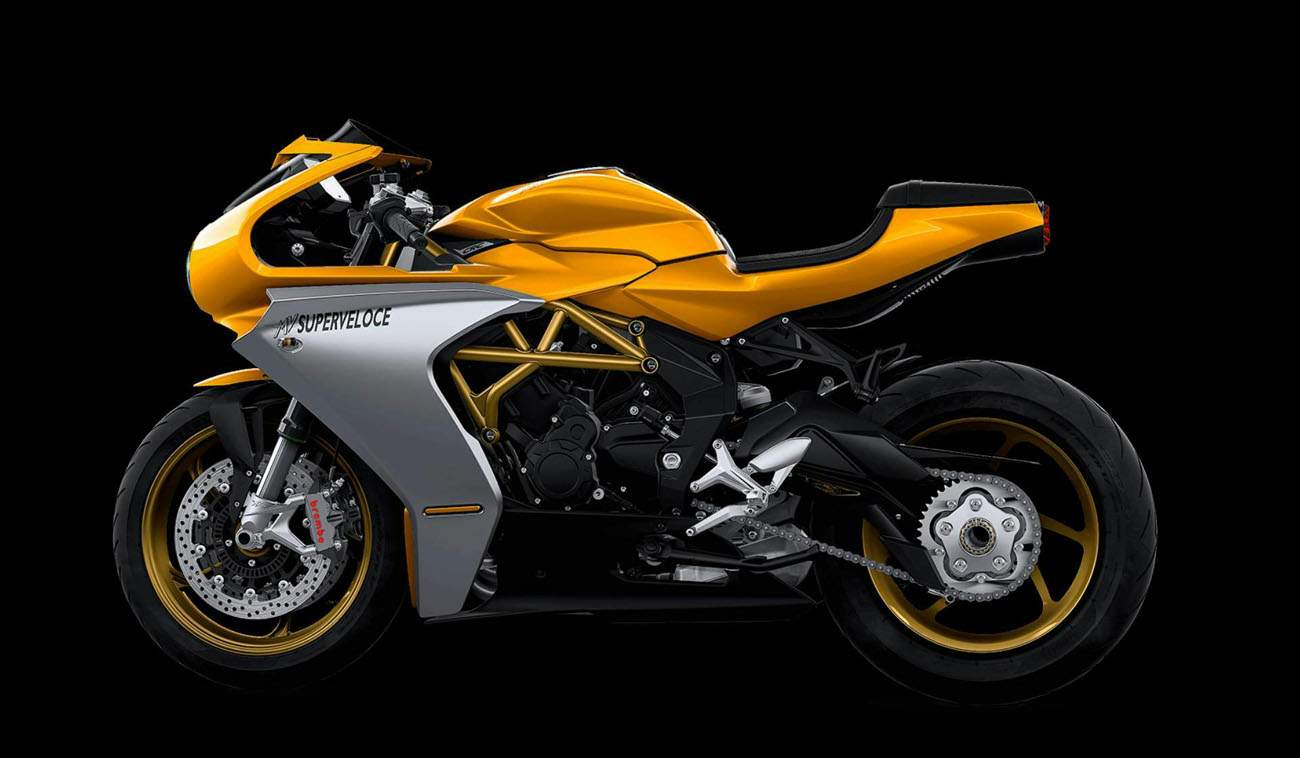

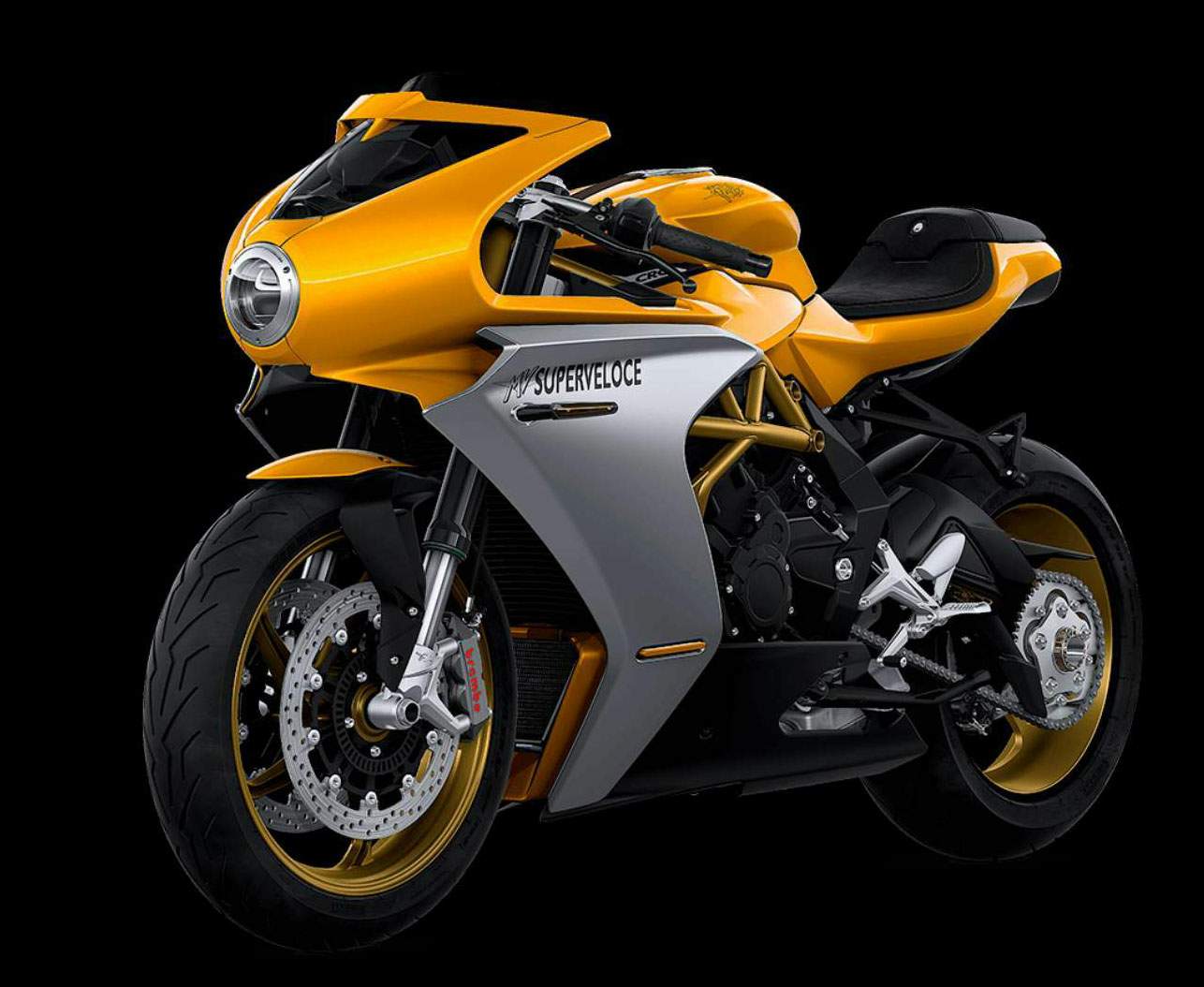

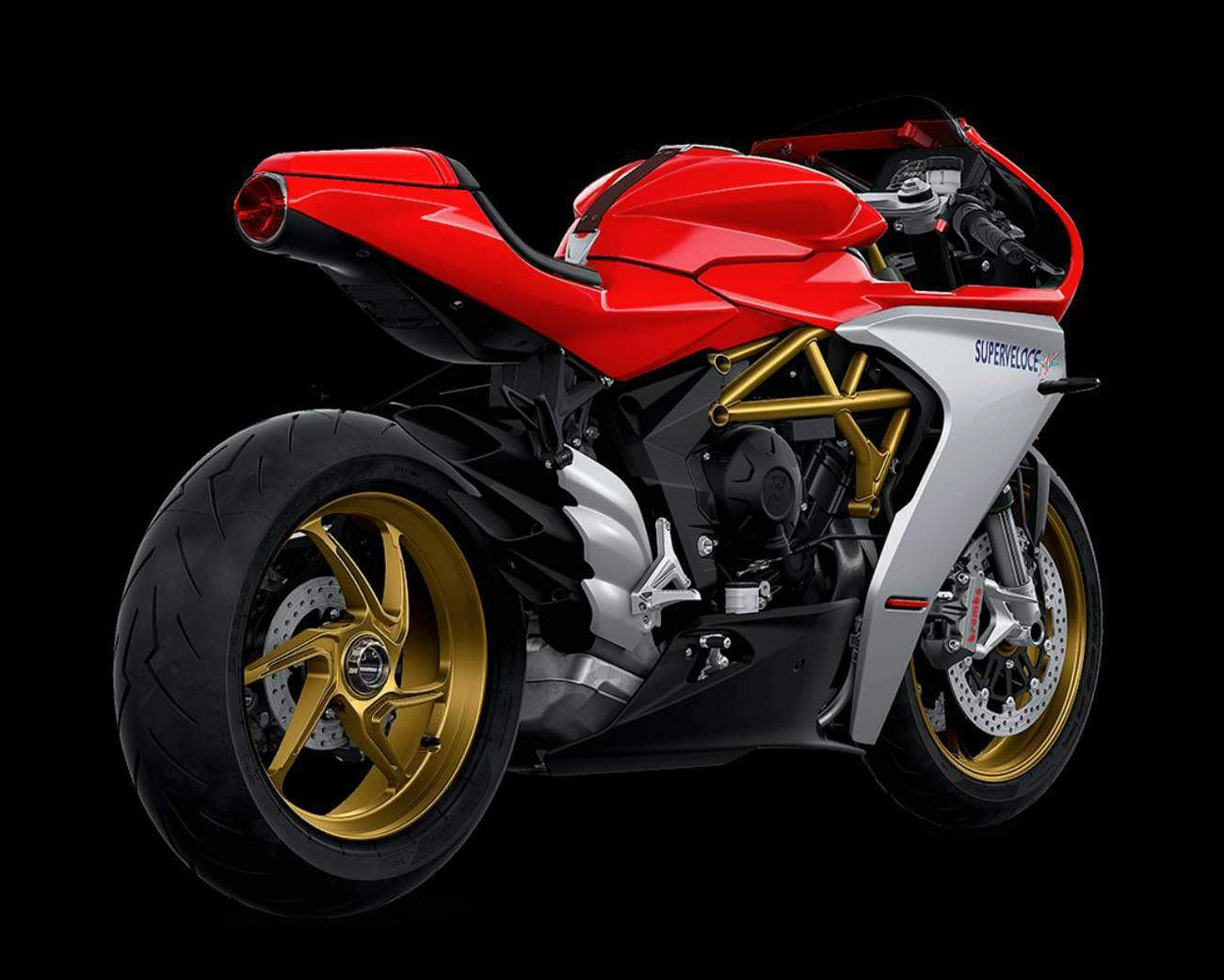

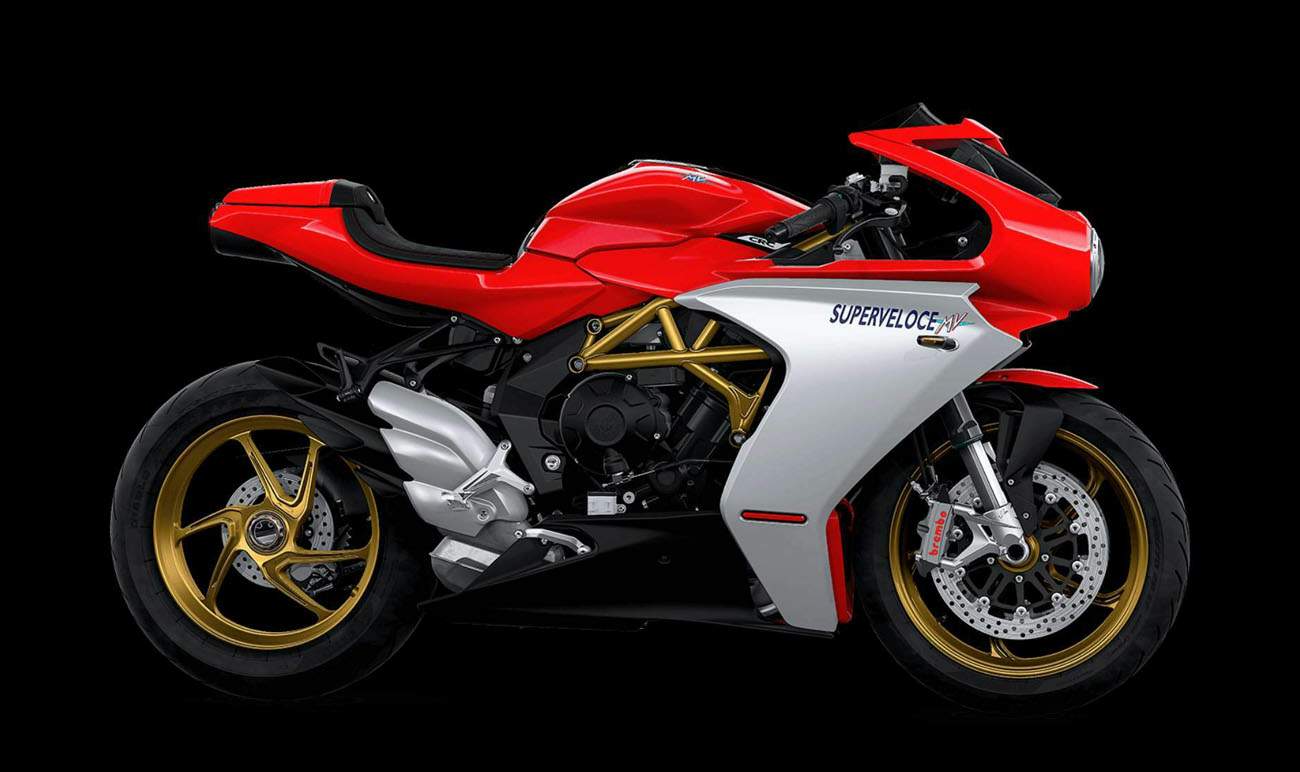

MV Agusta Superveloce 800 S is produced in 2021. Engine is Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder, displacement 798 cc / 48.7 cu-in , produces power 147 hp / 108 kW @ 13000 rpm and 88 Nm / 65 lb-ft @ 10100 rpm. MV Agusta Superveloce 800 S weighs 173 kg / 381.4 lbs. MV Agusta Superveloce 800 S has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Superveloce 800 S
Years: 2021
Engine: Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder
Capacity: 798 cc / 48.7 cu-in
Bore x Stroke: 79 x 54.3 mm
Cooling System: Cooling with separated liquid and oil radiators
Compression Ratio: 13.3:1
Exhaust: Arrow three-exit exhaust system (for track use only)
Emission: EURO5
Engine Management System: Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors Engine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention
Starting: Electric
Max Power: 147 hp / 108 kW @ 13000 rpm
Max Torque: 88 Nm / 65 lb-ft @ 10100 rpm
Electronic Quick Shift: MV EAS 3.0 (Electronically Assisted Shift Up & Down)
Clutch: Wet, multi-disc slipper clutch
Transmission: Cassette-style 6-speed, constant mesh
Primary Drive: 22/41
Final Drive: Chain
Gear Ratio: 1st 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Final Drive Ratio: 17/43
Frame: ALS Steel tubular trellis with aluminium alloy rear swing arm pivot plates
Front Suspension: 43mm Marzocchi USD telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, single sided swing arm material Aluminium alloy
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 320mm floating discs, Brembo radial-type monobloc 4 piston calipers
Rear Brakes: Single 220mm disc, Brembo 2 piston caliper
ABS: Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
Wheels: Aluminium alloy spokes
Front Wheel: 3.50 x 17
Rear Wheel: 5.50 x 17
Front Tyre: 120/70 - ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II
Rear Tyre: 180/55 - ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II
Trail: 99 mm / 3.89 in
Dimensions: Length: 2015 mm / 79.92 in Width: 760 mm / 28.74 in
Wheelbase: 1380 mm / 54.33 in
Ground Clarence: 120 mm / 4.72 in
Seat Height: 830 mm / 32.7 in
Dry Weight: 173 kg / 381.4 lbs
Dry Weight Race Kit: 165 kg / 363.7 lbs
Fuel Capacity: 16.5 Litres / 4.36 US gal
