MV Agusta Superveloce 800 Alpine Limited Edition (2021) technical specifications
MV Agusta Superveloce 800 Alpine Limited Edition is produced in 2021. Engine is Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder, displacement 798 cc / 48.7 cu-in , produces power 148 hp / 108 kW @ 13000 rpm and 88 Nm / 65 lb-ft @ 10100 rpm. MV Agusta Superveloce 800 Alpine Limited Edition weighs 173 kg / 381.4 lbs. MV Agusta Superveloce 800 Alpine Limited Edition has 9 photos.
Technical specifications
+ Add to 'Compare list'Model: | Superveloce 800 Alpine Limited Edition |
Years: | 2021 |
Production: | 110 Units |
Engine: | Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder |
Capacity: | 798 cc / 48.7 cu-in |
Bore x Stroke: | 79 x 54.3 mm |
Cooling System: | Cooling with separated liquid and oil radiators |
Compression Ratio: | 13.3:1 |

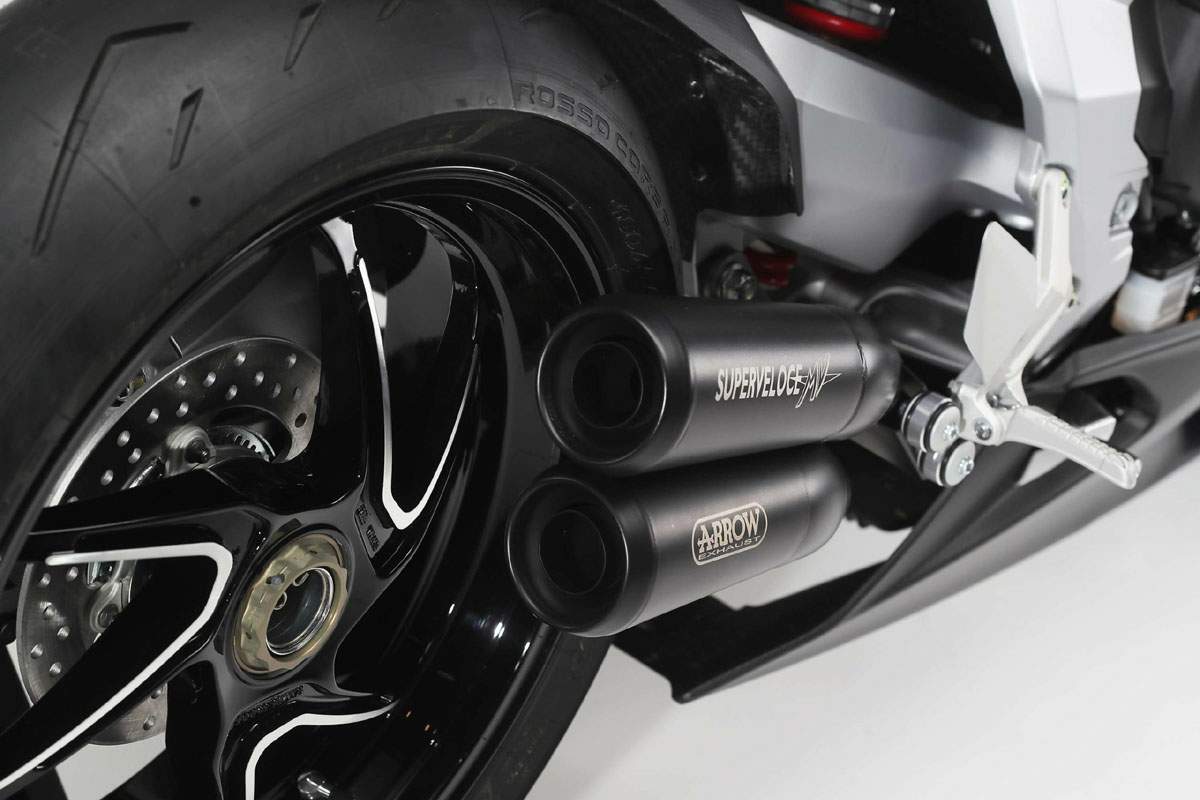

Exhaust: | Arrow three-exit exhaust system (for track use only) |
Emission: | EURO5 |
Engine Management System: | Integrated ignition - injection system MVICS (Motor & Vehicle Integrated Control System) with six injectors Engine control unit Eldor EM2.0, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention |
Starting: | Electric |
Max Power: | 148 hp / 108 kW @ 13000 rpm |
Max Power Race Kit: | 153 hp / 112,5 kW @ 13250 rpm (racing kit with SC exhaust and dedicated ECU map version) |
Max Torque: | 88 Nm / 65 lb-ft @ 10100 rpm |
Electronic Quick Shift: | MV EAS 2.0 (Electronically Assisted Shift Up & Down) |
Clutch: | Wet, multi-disc slipper clutch |
Transmission: | Cassette-style 6-speed with clutchless shifting |
Primary Drive: | 22/41 |
Final Drive: | Chain |
Gear Ratio: | 1st 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29 |
Final Drive Ratio: | 17/43 |
Frame: | ALS Steel tubular trellis with aluminium alloy rear swing arm pivot plates |
Front Suspension: | 43mm Marzocchi USD telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment |
Front Wheel Travel: | 125 mm / 4.9 in |
Rear Suspension: | Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, single sided swing arm material Aluminium alloy |
Rear Wheel Travel: | 130 mm / 5.1 in |
Front Brakes: | 2x 320mm floating discs, Brembo radial-type monobloc 4 piston calipers |
Rear Brakes: | Single 220mm disc, Brembo 2 piston caliper |
ABS: | Bosch 9 Plus w/ Race Mode and rear-wheel lift mitigation |
Wheels: | Aluminium alloy |
Front Wheel: | 3.50 x 17 |
Rear Wheel: | 5.50 x 17 |
Front Tyre: | 120/70 - ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II |
Rear Tyre: | 180/55 - ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II |
Trail: | 99 mm / 3.89 in |
Dimensions: | Length: 2030 mm / 79.92 in Width: 730 mm / 28.74 in |
Wheelbase: | 1380 mm / 54.33 in |
Ground Clarence: | 120 mm / 4.72 in |
Seat Height: | 830 mm / 32.7 in |
Dry Weight: | 173 kg / 381.4 lbs |
Dry Weight Race Kit: | 165 kg / 363.7 lbs |
Fuel Capacity: | 16.5 Litres / 4.36 US gal |
