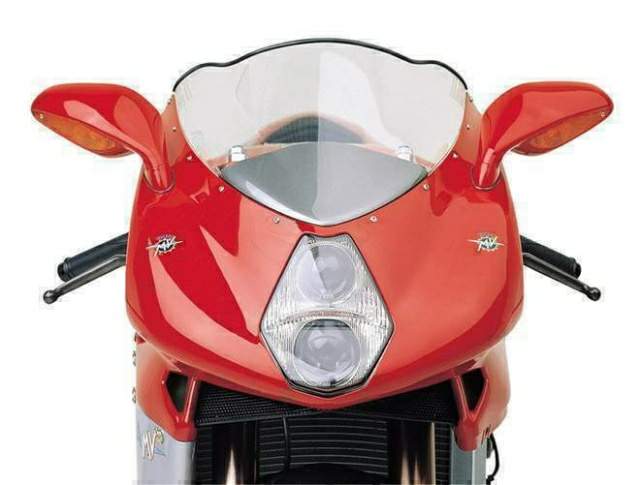

MV Agusta F4 750S EVO 3 (2003) technical specifications

MV Agusta F4 750S EVO 3 is produced in 2003. Engine is Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder., displacement 749.4 cc / 45.7 cu-in , produces power 137 hp / 99.9 kW @ 12600 rpm and 81.4 Nm / 60.0 lb-ft @ 10500 rpm. MV Agusta F4 750S EVO 3 weighs 189 kg / 396.8 lbs. MV Agusta F4 750S EVO 3 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F4 750S EVO 3
Years:	2003
Engine:	Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder.
Capacity:	749.4 cc / 45.7 cu-in
Bore x Stroke:	73.8 x 43.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.0:1
Induction:	Fuel Injection
Ignition:	Multipoint electronic
Starting:	Electric
Max Power:	137 hp / 99.9 kW @ 12600 rpm
Max Torque:	81.4 Nm / 60.0 lb-ft @ 10500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Front Suspension:	Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment 49mm diameter
Front Wheel TraveL:	118 mm / 4.6 in
Rear Suspension:	Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2x 310mm discs 6 piston calipers
Rear Brakes:	Single 210mm disc 4 piston caliper
Front Tyre:	120/65 ZR17
Rear Tyre:	190/50 ZR17
Wheelbase:	1412 mm / 55.6 in
Seat Height:	790 mm / 31.1 in
Dry Weight:	189 kg / 396.8 lbs
Fuel Capacity:	21 Litres / 5.8 US gal
