MV Agusta F4 (2010) technical specifications

MV Agusta F4 technical specifications

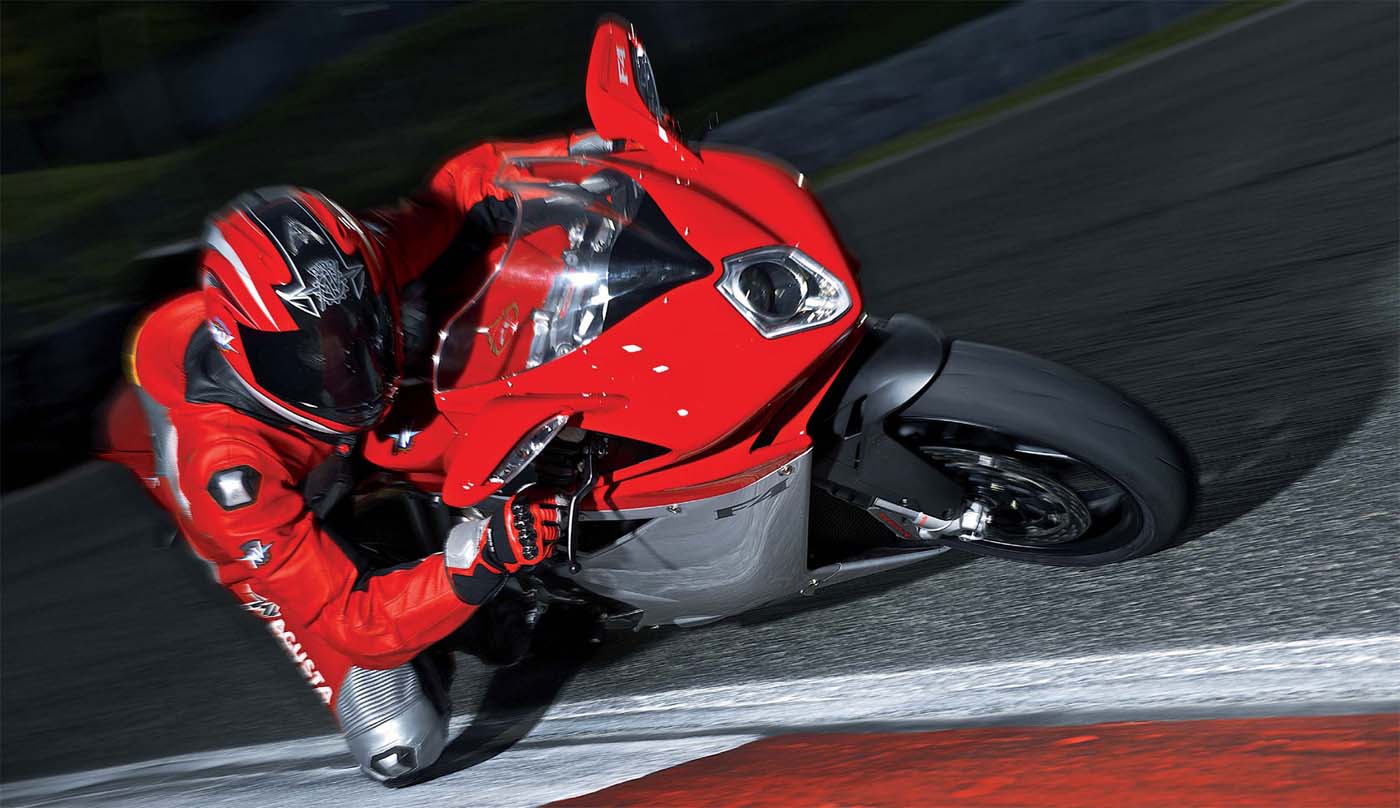

MV Agusta F4 is produced in 2010. Engine is Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 137 kW / 186 hp @ 12900 rpm and 114 Nm / 11.4 kgf-m @ 9500 rpm. MV Agusta F4 weighs 192 Kg / 42 lbS. MV Agusta F4 has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: F4
Years: 2010
Engine: Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 76 x 55 mm
Cooling System: Liquid cooled
Compression Ratio: 13.1:1
Induction: Magneti Marelli IAW 7BM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; Sequential timed "Multipoint" electronic injection ; Variable height intake ducts with Torque Shift System (TSS)
Ignition: Multipoint” electronic injection
Starting: Electric
Max Power: 137 kW / 186 hp @ 12900 rpm
Max Power Restricted Version: 73 kW / 100 hp @ 9200 rpm
Max Torque: 114 Nm / 11.4 kgf-m @ 9500 rpm
Max Torque Restricted Version: 90 Nm / 9.0 kgf-m @ 5500 rpm
Clutch: Wet, multi disc
Transmission: 6 Speed
Final Drive: Chain
Gear Ratio: 1st 13/38 -128,2 km/h 79.6 mph @ 13500 rpm 2nd 16/34 - 176,4 km/h 109.5 mph @ 13500 rpm 3rd 18/32 - 210,8 km/h 130.9 mph @ 13500 rpm 4th 20/30 - 249,8 km/h 155.1 mph @ 13500 rpm 5th 22/29 - 284,3 km/h 176.5 mph @ 13500 rpm 6th 19/23 - 05,0 km/h 189.4 mph @ 13500 rpm
Frame: CrMo Steel tubular trellis (TIG welded), Aluminium alloy
Front Suspension: 50mm "UPSIDE - DOWN" telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment, Aluminium alloy Single sided swing arm
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 210mm disc 4 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/55 ZR17
Dimensions: Length 2100 mm / 82.63 in Width 750 mm / 29.51 in
Wheelbase: 1430 mm / 56.2 in
Seat Height: 860 mm / 33.8 in
Dry-Weight: 192 Kg / 42 lbS
Fuel Capacity: 17 Litres / 4.4 US gal
Road Test: IN MOTO
