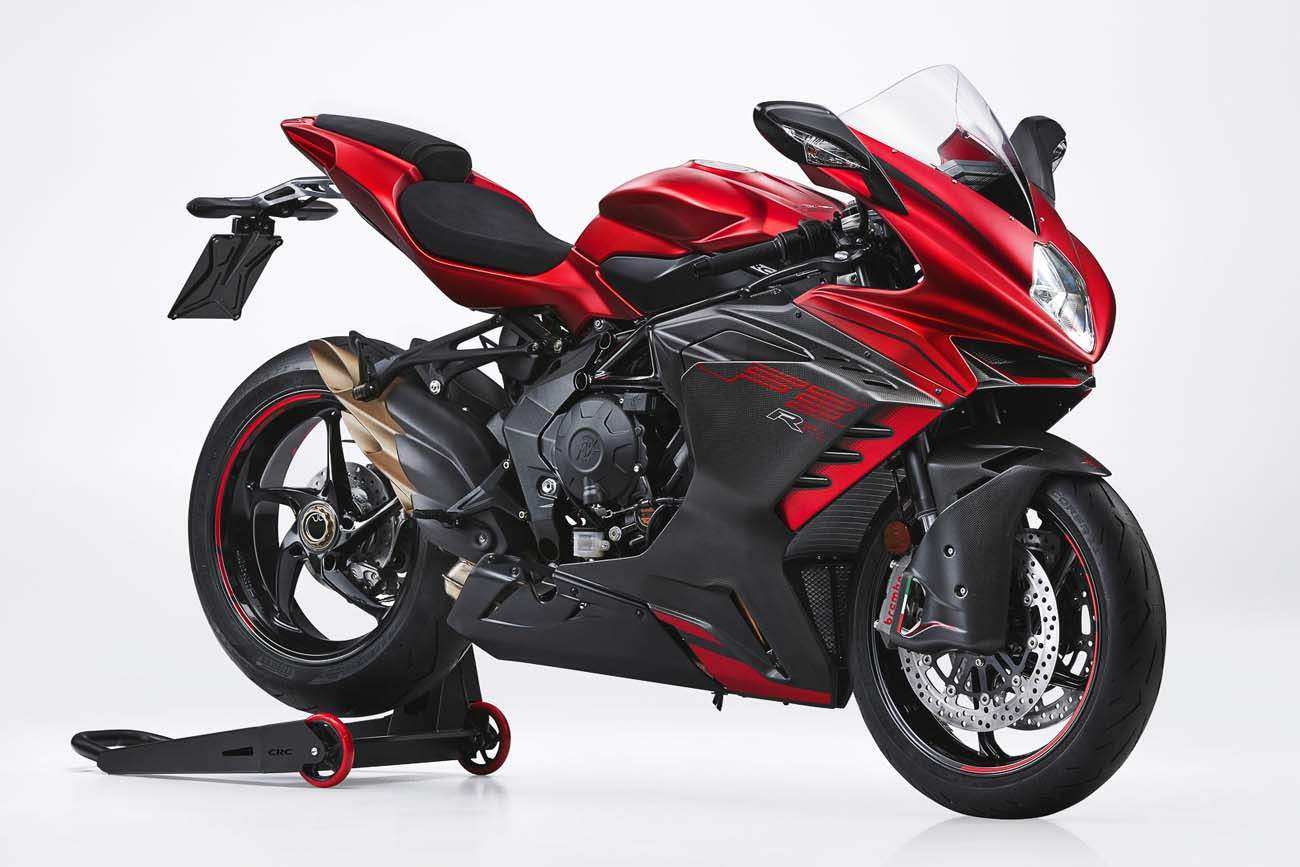

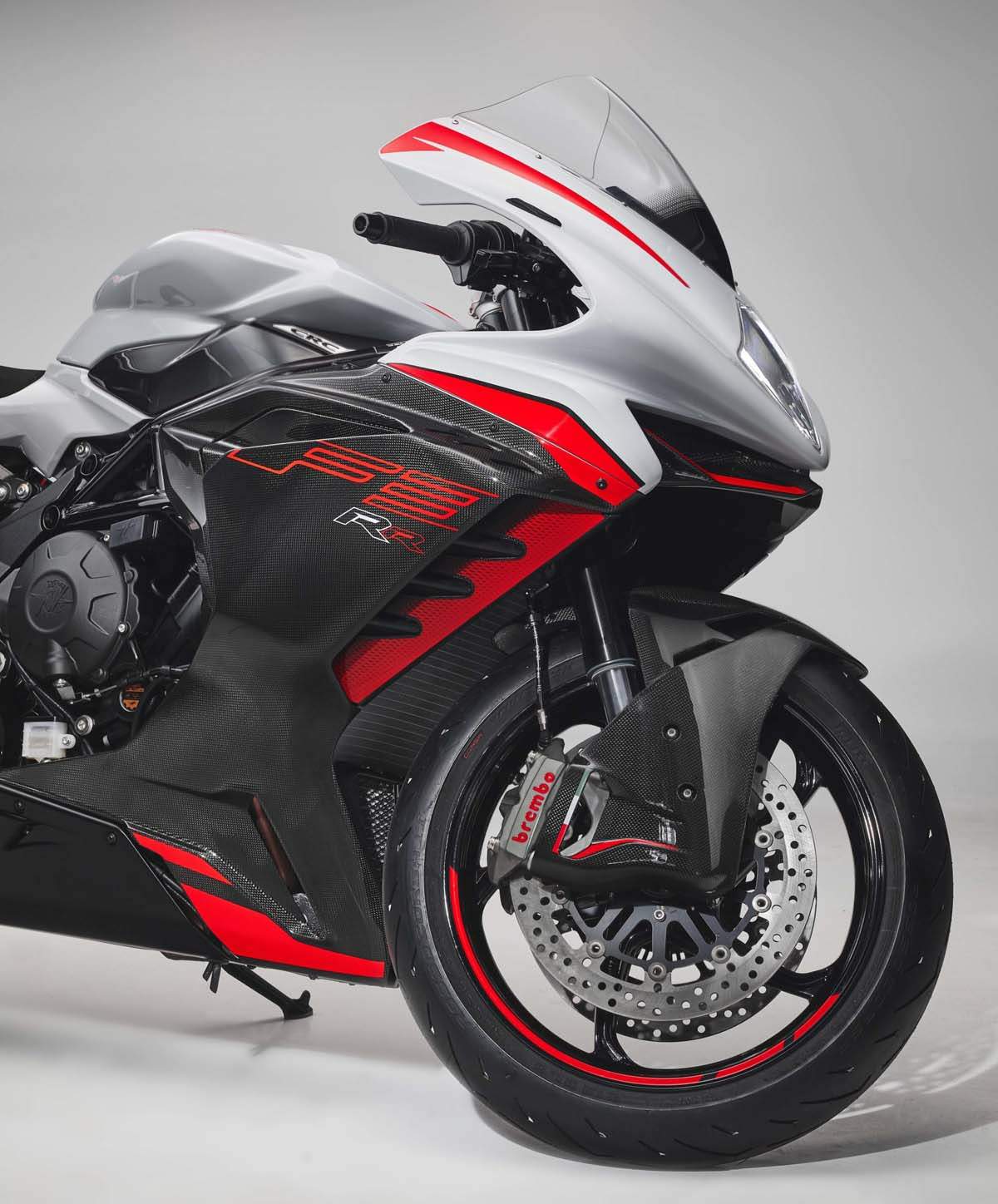

MV Agusta F3 800RR (2022) technical specifications
MV Agusta F3 800RR is produced in 2022. Engine is Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder, Titanium intake and exhaust valves, displacement 798 cc / 48.6 cu-in , produces power 147 hp / 108.0 kW @ 13000 rpm and 88.0 Nm / 64.9 lb-ft @ 10100 rpm. MV Agusta F3 800RR weighs 173 kg /381.4 lbs - 165 kg / 363.8 lbs. MV Agusta F3 800RR has 11 photos.
Technical specifications
+ Add to 'Compare list'Model: | F3 800RR |
Years: | 2022 |
Engine: | Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder, Titanium intake and exhaust valves |
Capacity: | 798 cc / 48.6 cu-in |
Bore x Stroke: | 79.0 x 54.3 mm |
Compression Ratio: | 13.3:1 |
Cooling System: | Cooling with separated liquid and oil radiators |
Emission: | EURO5 |
Induction: | Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body bore 50 mm diameters full ride by wire Mikuni, pencil-coil with ion- sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention |
Ignition: | Digital CDI |
Starting: | Electric |
Max Power: | 147 hp / 108.0 kW @ 13000 rpm |
Max Torque: | 88.0 Nm / 64.9 lb-ft @ 10100 rpm |
Electronic quick-shift: | MV EAS 3.0 (Electronically Assisted Shift Up & Down) |
Clutch: | Wet, multi plate with slipper clutch |
Transmission: | Cassette style, six speed, constant mesh |
Final Drive: | Chain |
Gear Ratio: | 1st: 13/37 2nd: 16/34 3rd: 18/32 4 th 19/30 5th 21/30 6 th 22/29 |
Final Drive Ratio: | 17/43 |
Primary Drive: | 22/41 |
Frame: | ALS Steel tubular trellis, Aluminium alloy rear swing arm pivot plates |
Front Suspension: | 43 mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment |
Front Wheel Travel: | 125 mm / 4.92 in |
Rear Suspension: | Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, Aluminium alloy single sided swing arm |
Rear Wheel Travel: | 130 mm / 5.12 in |
Front Brakes: | 2x 320mm Double floating discs, with steel braking disc and flange, Brembo radial-type monobloc, with 4 piston calipers |
Rear Brakes: | Single 220mm disc, Brembo with 2 piston caliper |
Rim Front: | Aluminium alloy 3.50 x 17 |
Rim Rear: | Aluminium alloy 5.50 x 17 |
Front Tyre: | 120/70 - ZR 17 M/C (58 W) |
Rear Tyre: | 180/55 - ZR 17 M/C (73 W) |
Rake: | 23.6° |
Trail: | 99 mm / 3.89 in |
Dimensions: | Length 2030 mm / 79.92 in Width 730 mm / 28.74 in |
Wheelbase: | 1380 mm / 54.33 in |
Seat Height: | 830 mm / 32.68 in |
Ground Clearance: | 120 mm / 4.72 in |
Dry Weight: | 173 kg /381.4 lbs - 165 kg / 363.8 lbs |
Fuel Capacity: | 16.5 Litres / 4.36 US gal |
