MV Agusta F3 800RC Reparto Corse (2018) technical specifications

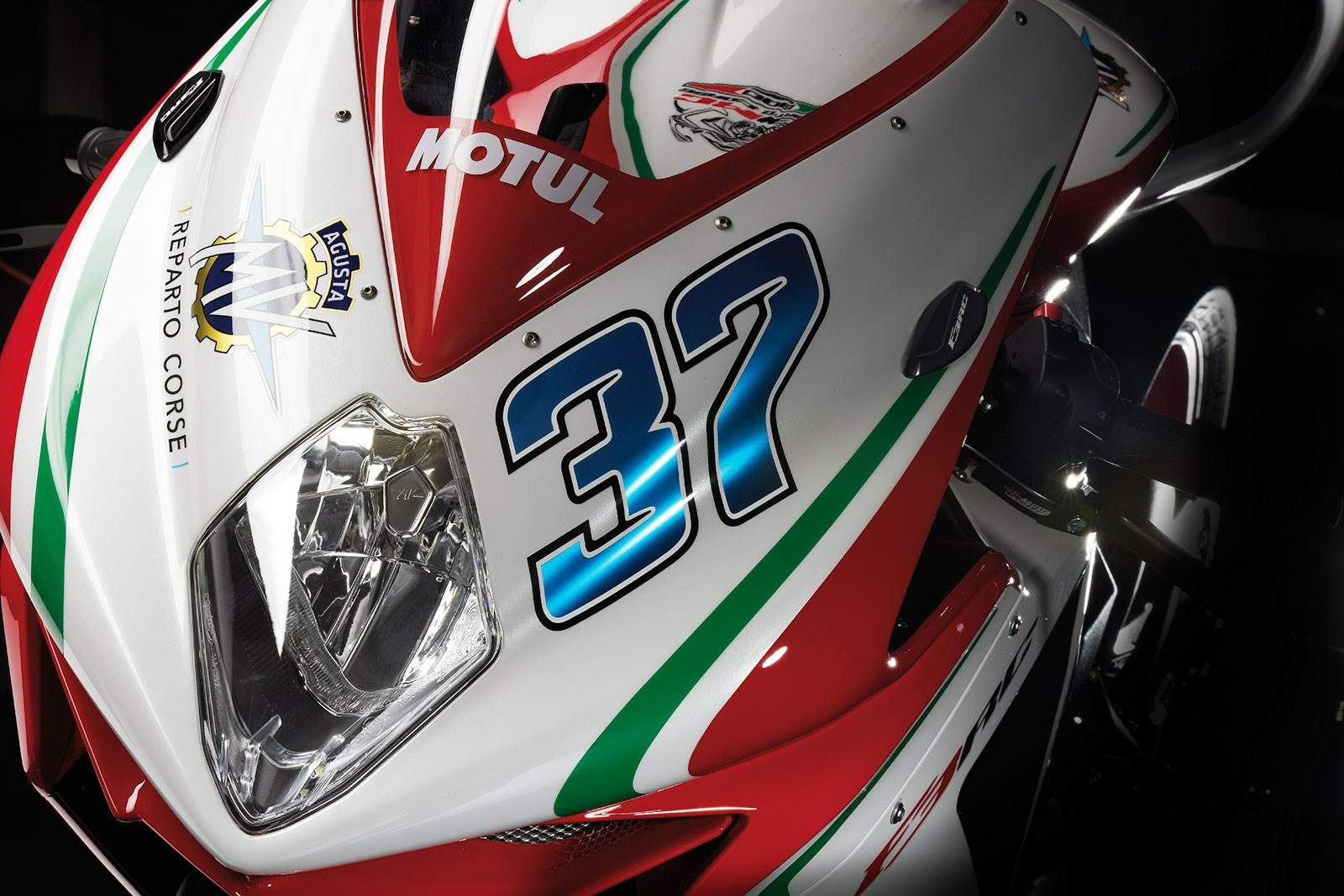

MV Agusta F3 800RC Reparto Corse is produced in 2018. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, Titanium intake and exhaust valves, displacement 798 cc / 48.6 cu-in , produces power 148 hp / 108.0 kW) @ 13000 rpm and 88.0 Nm / 64.9 lb-ft @ 10600 rpm. MV Agusta F3 800RC Reparto Corse weighs 173 kg / 381.4 lbs. MV Agusta F3 800RC Reparto Corse has 10 photos.

Technical specifications

+ Add to 'Compare list'

Model:	F3 800RC Reparto Corse
Years:	2018
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, Titanium intake and exhaust valves
Capacity:	798 cc / 48.6 cu-in
Bore x Stroke:	79.0 x 54.3 mm
Compression Ratio:	13.3:1
Cooling System:	Liquid Cooled
Emission:	Euro 4
Induction:	Integrated ignition – injection system MVICS (Motor & Vehicle Integrated Control System) with six injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention Electronic quick shift MV EAS (Electronically Assisted Shift)
Ignition:	Digital CDI
Alternator:	350 W at 5000 r.p.m.
Starting:	Electric
Max Power:	148 hp / 108.0 kW) @ 13000 rpm
Max Torque:	88.0 Nm / 64.9 lb-ft @ 10600 rpm
Clutch:	Wet, multi plate with slipper clutch
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st: 13/37 2nd: 16/34 3rd: 18/32 4 th 19/30 5th 21/30 6 th 22/29
Final Drive Ratio:	17/43
Primary Drive:	19/36
Frame:	ALS Steel tubular trellis, Rear swing arm pivot plates: material Aluminium alloy
Front Suspension:	43 mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel:	125 mm / 4.92 in
Rear Suspension:	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment
Rear Wheel Travel:	123 mm / 4.84 in
Front Brakes:	2x 320mm Double floating discs, 4 pistons calipers
Rear Brakes:	Single 220mm disc, single piston calipers
Rim Front:	Aluminium alloy 3.50 ” x 17 ”
Rim Rear:	Aluminium alloy 5.50 ” x 17 ”
Front Tyre:	120/70 - ZR 17 M/C (58 W)
Rear Tyre:	180/55 - ZR 17 M/C (73 W)
Rake:	23.6°
Trail:	99 mm / 3.89 in
Dimensions:	Length 2060 mm./ 81.01 in Width 725 mm / 28.54 in
Wheelbase:	1380 mm / 54.33 in
Seat Height:	805 mm / 31.6 in
Ground Clearance:	125 mm / 4.92 in
Dry Weight:	173 kg / 381.4 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
