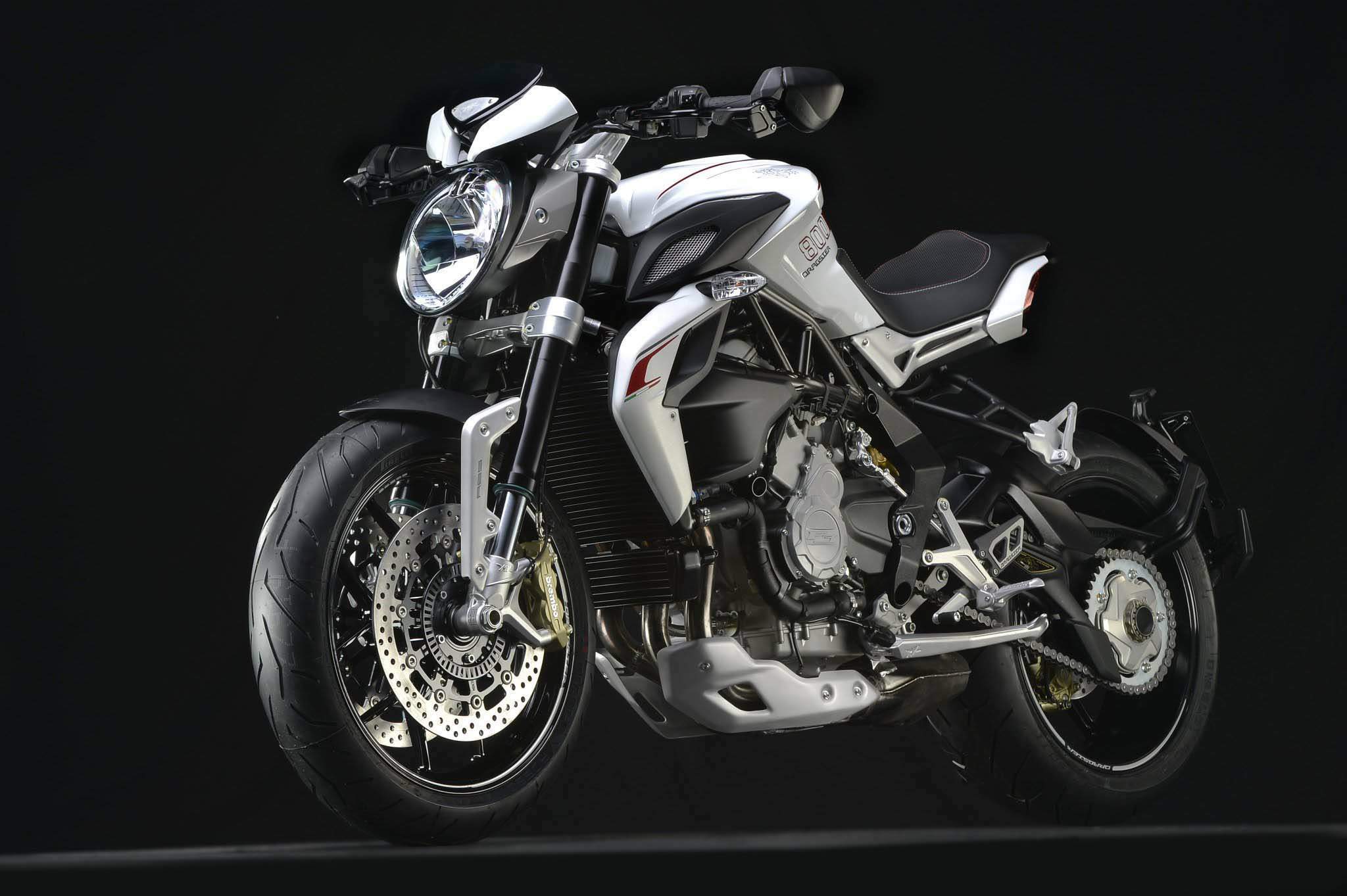

MV Agusta Brutal 800 Dragster (2014-15) technical specifications

MV Agusta Brutal 800 Dragster is produced in 2014-15. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,, displacement 798 cc / 48.7 cu-in , produces power 92 kW / 125 hp @ 11600 rpm and 81 Nm / 8.25 kgf-m @ 9600 rpm.. MV Agusta Brutal 800 Dragster weighs 167 Kg / 368.2 lbs. MV Agusta Brutal 800 Dragster has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Brutal 800 Dragster
Years:	2014-15
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,
Capacity:	798 cc / 48.7 cu-in
Bore x Stroke:	79 x 54.3 mm
Cooling System:	Liquid Cooled
Compression Ratio:	13.3;1
Induction:	Integrated ignition - injection system MVICS (Motor & Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Ignition:	Multipoint electronic injection
Starting:	Electric
Alternator:	350 Wat 5000 r.p.m. 12V-8.6Ah
Max Power:	92 kW / 125 hp @ 11600 rpm
Max Torque:	81 Nm / 8.25 kgf-m @ 9600 rpm.
Clutch:	Wet, multi-disc with mechanical drive Cassette style
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st: 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Final Drive Ratio:	16/41
Frame:	ALS Steel tubular trellis Aluminium alloy
Front Suspension:	Marzocchi "UPSIDE DOWN" telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment 43 mm
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Aluminium alloy
Rear Wheel Travel:	125 mm / 4.9 in
Front Brakes:	2x 320mm floating discs 4 piston calipers
Rear Brakes:	Single 220mm disc 2 piston caliper
Rim Front:	Aluminium alloy 3.50 " x 17 '
Rim Rear:	Aluminium alloy 5.50 " x 17 '
Front Tyre:	120/70 – ZR 17
Rear Tyre:	200/50 – ZR 17
Trail:	95 mm / 3.74 in.
Dimensions:	Length 2060 mm / 81.0 in Width 825 mm / 32.4 in
Wheelbase:	1380 mm / 54.3 in
Ground Clarence:	160 mm / 6.3 in
Seat Height:	811 mm / 31.9 in
Dry Weight:	167 Kg / 368.2 lbs
Fuel Capacity:	16.6 Litres / 4.3 US gal
Reserve:	5 Litres 1.3 US gal
