MV Agusta 800S Super America (1976) technical specifications

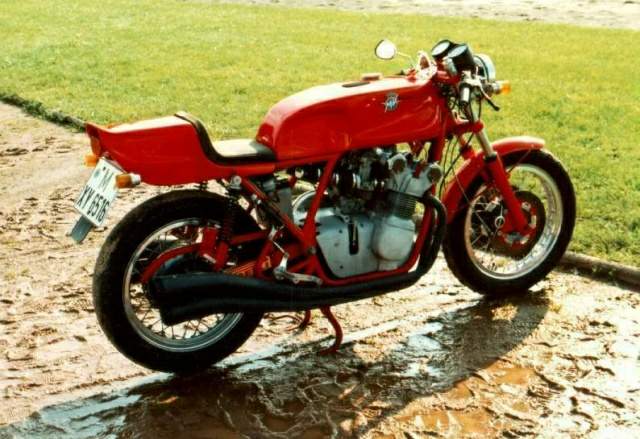

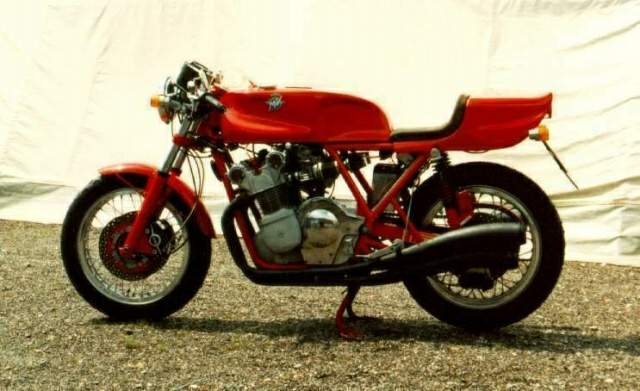

MV Agusta 800S Super America is produced in 1976. Engine is Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder, displacement 787.7 cc / 48.0 cu-in , produces power 75 hp / 56 kW @ 8500 rpm. MV Agusta 800S Super America has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 800S Super America |
| Years: | 1976 |
| Engine: | Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder |
| Capacity: | 787.7 cc / 48.0 cu-in |
| Bore x Stroke: | 67 x 56 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.5;1 |
| Lubrication: | Wet sump |
| Induction: | 4x DeU'Orto UB24B2 e UB24BS2.carburetors |
| Ignition: | Distributor |
| Starting: | Electric |
| Max Power: | 75 hp / 56 kW @ 8500 rpm |
| Clutch: | Multiple disc in oil bath. |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 11.68 / 2nd 8.45 / 3rd 6.47 4th 5.44 / 5th 4.98 |
| Frame: | Tubular steel, welded, double cradle |
| Front Suspension: | 35mm Ceriani telescopic forks |
| Rear Suspension: | Dual Marzocchi shocks preload adjustable |
| Front Brakes: | 2x 275mm discs |
| Rear Brakes: | 200mm Drum |
| Front Tyre: | 90/90 -18 |
| Rear Tyre: | 100/90 -18 |
| Dimensions: | Length: 2210 mm / 87.0 in Width: 720 mm / 28.3 in |
| Wheelbase: | 1390 mm / 54.7 in |
| Seat Height: | 775 mm / 30,5 in |
| Weight: | 235 kg / 518 lbs |
| Fuel Capacity: | 24 Litres / 6.3 US gal |
| Review: | Motorrad September |
