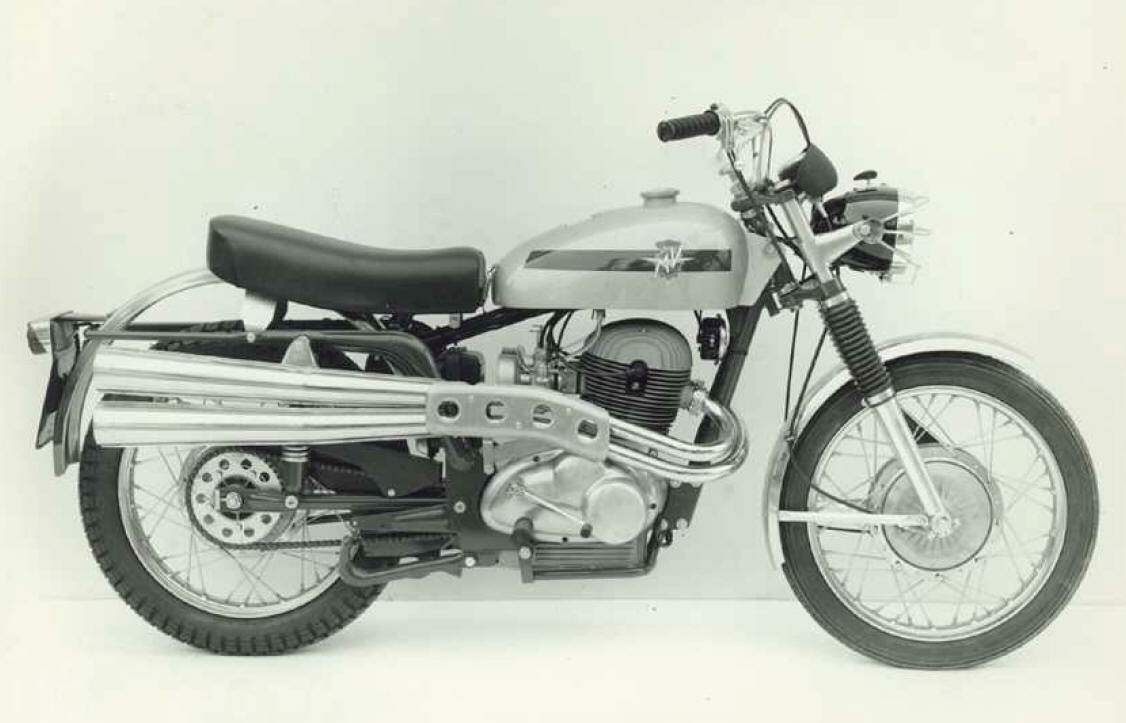

MV Agusta 250 Scrambler B (1967-69) technical specifications
MV Agusta 250 Scrambler B is produced in 1967-69. Engine is Four stroke, parallel twin, pushrod, 2 valve per cylinder, displacement 247 , produces power 19 hp / @ 7000 rpm. MV Agusta 250 Scrambler B weighs 142 kg / 313 lbs. MV Agusta 250 Scrambler B has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 250 Scrambler B |
| Years: | 1967-69 |
| Engine: | Four stroke, parallel twin, pushrod, 2 valve per cylinder |
| Capacity: | 247 |
| Bore x Stroke: | 53 x 56 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Lubrication: | Wet sump |
| Induction: | 2x 22 mm carburettor |
| Ignition: | Dynamo |
| Starting: | Kick |
| Max Power: | 19 hp / @ 7000 rpm |
| Clutch: | Wet multiple plate clutch |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Single beam tubular and pressed steel |
| Front Suspension: | Telescopic hydraulic fork |
| Rear Suspension: | Swingarm with hydraulic shocks |
| Front Brakes: | 180mm Drum |
| Rear Brakes: | 150mm Drum |
| Front Tyre: | 2.75- 18 |
| Rear Tyre: | 3.25- 18 |
| Dimensions: | Length: 1960 mm / 77.1 in Width: 620 mm / 24.4 in |
| Wheelbase: | 1300 mm / 51.2 in |
| Dry Weight: | 142 kg / 313 lbs |
| Fuel Capacity: | 13 Litres / 3.4 US gal |
