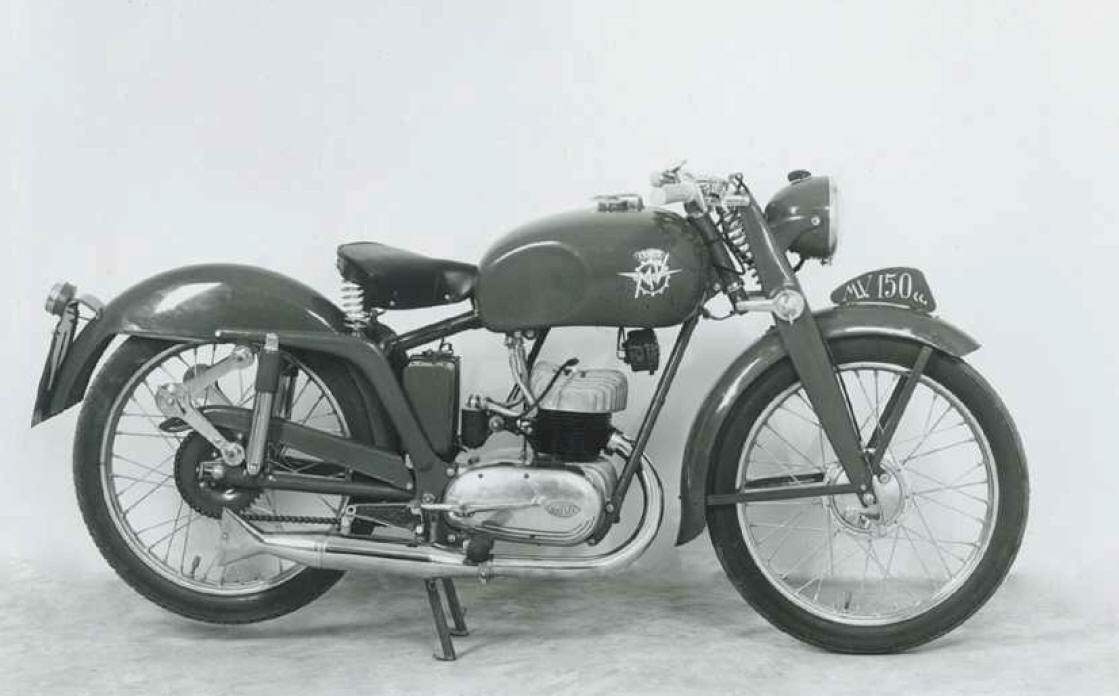

MV Agusta 150 Sport E (1952-53) technical specifications
MV Agusta 150 Sport E is produced in 1952-53. Engine is Two stroke, single cylinder, displacement 148 cc / 9.0 cu-in , produces power 6.7 kW / 9.0 hp @. MV Agusta 150 Sport E has 1 photos.
Technical specifications
+ Add to 'Compare list'Model: | 150 Sport E |
Years: | 1952-53 |
Engine: | Two stroke, single cylinder |
Capacity: | 148 cc / 9.0 cu-in |
Bore x Stroke: | 56 x 60 mm |
Cooling System: | Air cooled |
Compression Ratio: | 7.5:1 |
Induction: | 20 mm carburettor |
Lubrication: | 5% mixture |
Ignition: | Flywheel-magneto |
Starting: | Kick |
Max Power: | 6.7 kW / 9.0 hp @ |
Clutch: | Wet multiple plate clutch |
Transmission: | 4 Speed |
Final Drive: | Chain |
Frame: | Double cradle tubular and pressed steel |
Front Suspension: | Telescopic hydraulic fork |
Rear Suspension: | Swingarm with dual shocks |
Front Brakes: | 150mm Drum |
Rear Brakes: | 125mm Drum |
Front Tyre: | 2 50 19 |
Rear Tyre: | 2 50 19 |
Dimensions: | Length: 1920 mm / 75.5 in Width: 620 mm / 24.4 in |
Wheelbase: | 1270 mm / 50.0 in |
Weight: | 92 kg / 202.8 lbs |
Fuel Capacity: | 14 Litres / 3.7 US gal |
