Moto Guzzi V85 TT Guardia dOnore (2022) technical specifications

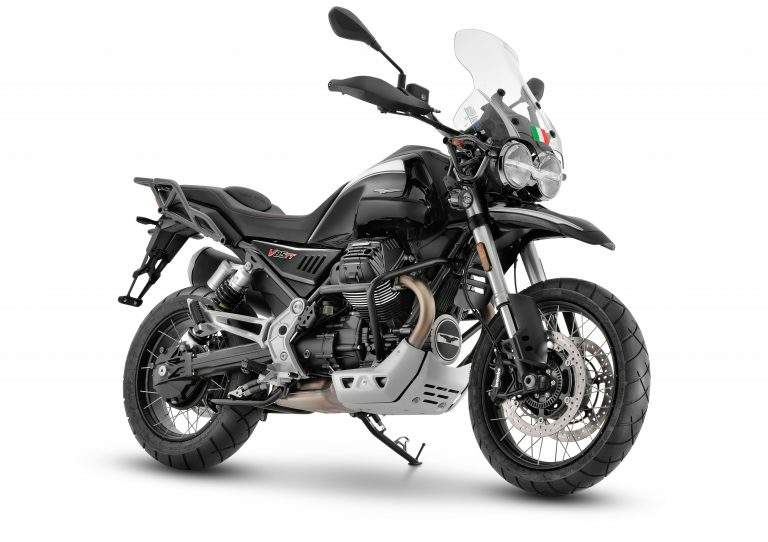

Moto Guzzi V85 TT Guardia dOnore is produced in 2022. Engine is Four stroke, Transversal 90° V-twin, 2-valves per cylinder, titanium intake, displacement 853 cc / 52.0 cu in , produces power 76 hp / 56 kW @ 7500 rpm (Also available at 35 kW, A2 driver license) and 82 Nm / 60.4 lb-ft @ 5000 rpm. Moto Guzzi V85 TT Guardia dOnore weighs 209 kg / 460.7 lbs. Moto Guzzi V85 TT Guardia dOnore has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	V85 TT Guardia dOnore
Years:	2022
Engine:	Four stroke, Transversal 90° V-twin, 2-valves per cylinder, titanium intake
Capacity:	853 cc / 52.0 cu in
Bore x Stroke:	84 x 77 mm
Cooling System:	Air/oil cooled
Compression Ratio:	10.5:1
Emission:	EURO5
Induction:	Electronic injection; Ø 52 mm single throttle body, Ride-by-Wire
Ignition:	Electronic
Starting:	Electric
Max Power:	76 hp / 56 kW @ 7500 rpm (Also available at 35 kW, A2 driver license)
Max Torque:	82 Nm / 60.4 lb-ft @ 5000 rpm
Clutch:	Dry single disc
Transmission:	6 Speed
Final Drive:	Shaft, double universal joint and double bevel gear units, 8:33 ratio
Gear Ratios:	1st 16/39 = 1: 2.437 2nd 18/32 = 1: 1.778 3rd 21/28 = 1: 1.333 4th 24/26 = 1: 1.083 5th 25/24 = 1: 0.960 6th 27/24 = 1: 0.889
Frame:	High strength steel tubular frame
Front Suspension:	41 mm hydraulic telescopic USD fork, with adjustable spring preload and hydraulic rebound
Front Wheel Travel:	170 mm / 6.7 in
Rear Suspension:	Swingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2x 320mm stainless steel floating discs, Brembo radial-mounted calipers with 4 opposed pistons
Rear Brakes:	Single 260 mm stainless steel disc, floating caliper with 2 pistons
ABS:	Standard double channel ABS
Wheels:	Cross Spoked
Front Wheel:	2.50 x 19
Rear Wheel:	4.25 x 17
Front Tyre:	110/80 R19 With air chamber
Rear Tyre:	150/70 R17 With air chamber
Seat Height:	830 mm / 32.6 in
Dry Weight:	209 kg / 460.7 lbs
Wet Weight:	230 kg / 507 lbs
Fuel Capacity:	23 Litres / 6.0 US gal
