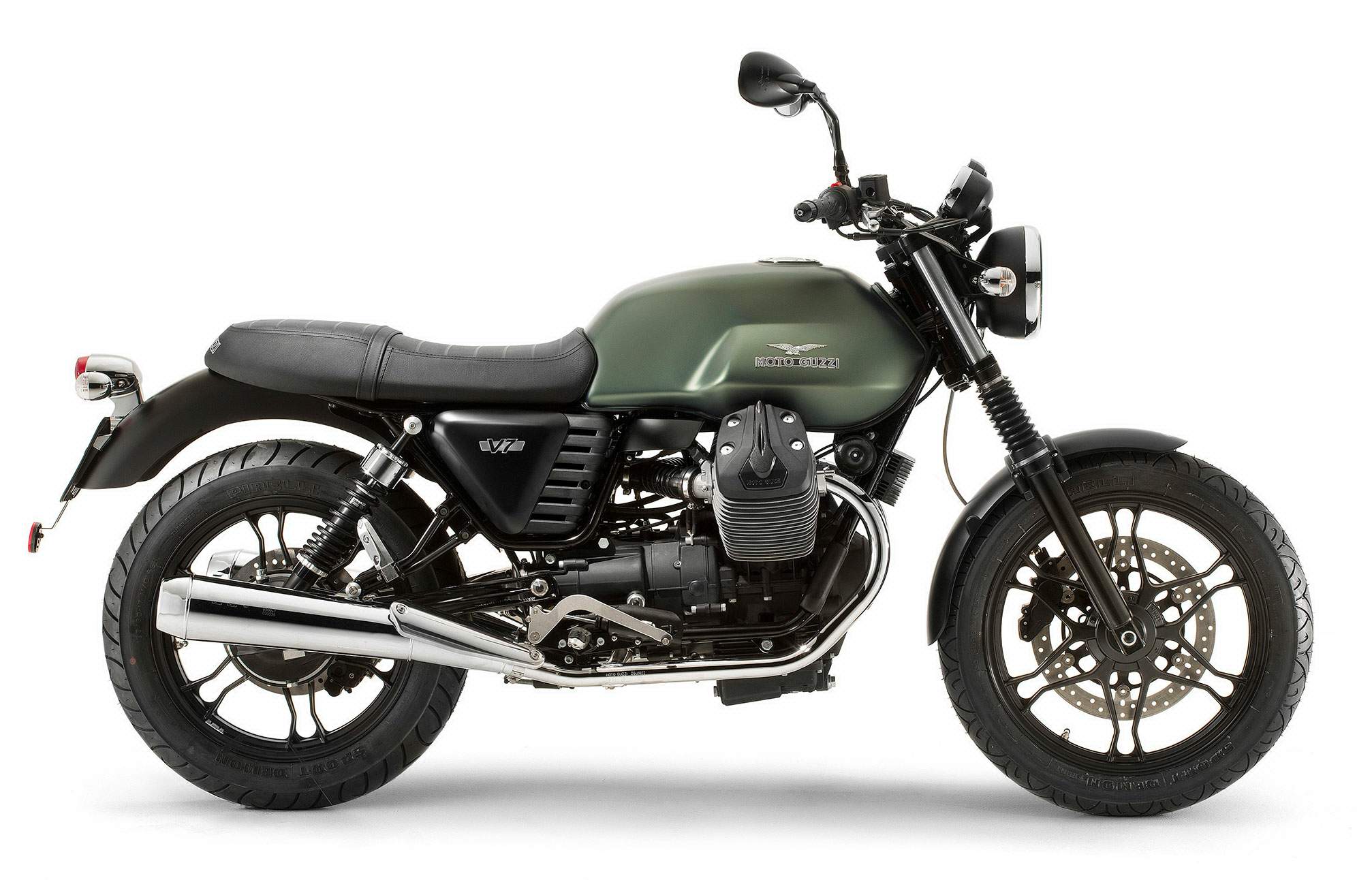

Moto Guzzi V7 Stone (2014) technical specifications
Moto Guzzi V7 Stone is produced in 2014. Engine is Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder., displacement 744 cc / 45.4 in , produces power 37.5 kW / 51hp @ 6200 rpm and 58 Nm / 40.3 lb-ft @ 5000 rpm. Moto Guzzi V7 Stone weighs 179 kg / 395 lbs. Moto Guzzi V7 Stone has 5 photos.
Technical specifications
+ Add to 'Compare list'Model: | V7 Stone |
Years: | 2014 |
Engine: | Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder. |
Capacity: | 744 cc / 45.4 in |
Bore x Stroke: | 80 x 74 mm |
Cooling System: | Air cooled |
Compression Ratio: | 9.6:1 |
Induction: | Weber- Marelli electronic injection |
Ignition: | Magneti Marelli electronic digital |
Battery: | 12 V - 330 Watt Voltage 12 V - 14 Amp/h |
Head Lamp: | 12 V - 55/60 W |
Starting: | Electric |
Exhaust system: | 3 way catalytic converter with twin oxygen sensor |
Max Power: | 37.5 kW / 51hp @ 6200 rpm |
Max Torque: | 58 Nm / 40.3 lb-ft @ 5000 rpm |
Clutch: | Single disc, dry, with cush drive |
Transmission: | 5 Speed |
Final Drive: | Shaft, ratio 4.825 |
Gear Ratios: | 1st 11/26 = 1 : 2.3636 2nd 14/23 = 1 : 1.6429 3rd 18/23 = 1 : 1.2778 4th 18/19 = 1 : 1.0556 5t 25/22 = 1 : 0.9 |
Frame: | Detachable tubular duplex cradle |
Front Suspension: | Marzocchi Ø 40 mm telescopic front forks |
Front Wheel Travel: | 130 mm / 5.1 in |
Rear Suspension: | Swinging arm in light cast alloy with two dampers and adjustable preload |
Rear Wheel Travel: | 118 mm / 4.6 in |
Front Brakes: | Single 320mm disc 2 piston caliper |
Rear Brakes: | Single 260mm disc 2 piston caliper |
Wheels: | Cast aluminum alloy multi-spoke black anodized rims |
Front wheel: | 18", 100/90 |
Rear wheel: | 17", 130/80 |
Front Tyre: | 100/70-18 |
Rear Tyre: | 130/80-17 |
Trail: | 109 mm |
Steering Rake: | 27°50' |
Steering Angle: | 32° |
Dimensions: | Length 2185 mm / 86 in Width 800 mm / 31.8 in Height 1115 mm / 43.8 in |
Wheelbase: | 1449 mm / 57.0 in |
Seat Height: | 805 mm / 31.7 in |
Ground Clearance: | 182 mm / 7.2 in |
Dry Weight: | 179 kg / 395 lbs |
Wet Weight: | 198 kg / 436 lbs |
Fuel Capacity: | 22 Litres / 5.8 gal |
Reserve: | 3.7 Litres |
