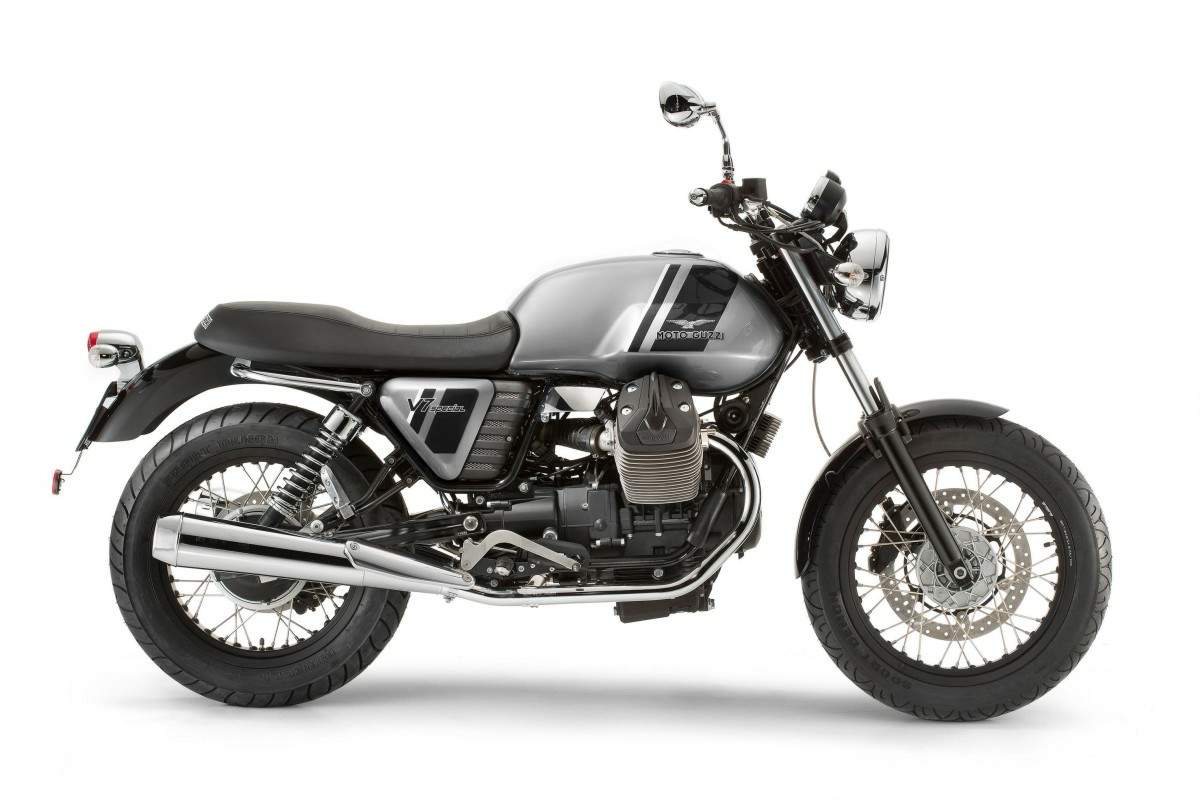

Moto Guzzi V7 Special (2013) technical specifications
Moto Guzzi V7 Special is produced in 2013. Engine is Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder., displacement 744 cc / 45.4 in , produces power 37.5 kW / 51 hp @ 6200 rpm and 58 Nm / 40.3 lb-ft @ 5000 rpm. Moto Guzzi V7 Special weighs 179 kg / 395 lbs. Moto Guzzi V7 Special has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | V7 Special |
| Years: | 2013 |
| Engine: | Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder. |
| Capacity: | 744 cc / 45.4 in |
| Bore x Stroke: | 80 x 74 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.6:1 |
| Induction: | Weber- Marelli electronic injection |
| Ignition: | Magneti Marelli electronic digital |
| Battery: | 12 V - 330 Watt Voltage 12 V - 14 Amp/h |
| Alternator: | 12 V - 55/60 W |
| Starting: | Electric |
| Exhaust system: | 3 way catalytic converter with twin oxygen sensor |
| Max Power: | 37.5 kW / 51 hp @ 6200 rpm |
| Max Torque: | 58 Nm / 40.3 lb-ft @ 5000 rpm |
| Clutch: | Single disc, dry, with cush drive |
| Transmission: | 5 Speed |
| Final Drive: | Shaft, ratio 4.825 |
| Gear Ratios: | 1st 11/26 = 1 : 2.3636 2nd 14/23 = 1 : 1.6429 3rd 18/23 = 1 : 1.2778 4th 18/19 = 1 : 1.0556 5th 25/22 = 1 : 0.9 |
| Frame: | Detachable tubular duplex cradle |
| Front Suspension: | Marzocchi Ø 40 mm telescopic front forks |
| Front Wheel Travel: | 130 mm / 5.1 in |
| Rear Suspension: | Swinging arm in light cast alloy with two dampers and adjustable preload |
| Rear Wheel Travel: | 118 mm / 4.6 in |
| Front Brakes: | Single 320mm disc 2 piston caliper |
| Rear Brakes: | Single 260mm disc 2 piston caliper |
| Wheels: | Cast aluminum alloy multi-spoke black anodized rims |
| Front wheel: | 18", 100/90 |
| Rear wheel: | 17", 130/80 |
| Front Tyre: | 100/70-18 |
| Rear Tyre: | 130/80-17 |
| Trail: | 109 mm |
| Steering Rake: | 27°50' |
| Steering angle: | 32° |
| Dimensions: | Length 2185 mm / 86 in Width 800 mm / 31.8 in Height 1115 mm / 43.8 in |
| Minimum ground clearance: | 182 mm / 7.2 in |
| Wheelbase: | 1449 mm / 57.0 in |
| Seat Height: | 805 mm / 31.7 in |
| Dry Weight: | 179 kg / 395 lbs |
| Wet Weight: | 198 kg / 436 lbs |
| Fuel Capacity: | 22 Litres / 5.8 gal |
| Reserve: | 3.7 Litres |
