Technical specifications
|
| Model: |

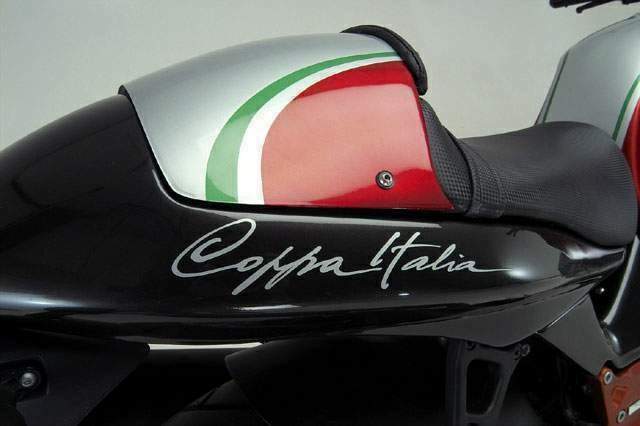

V11 Coppa Italia |
| Years: |
2002-03 |
|
Engine:
|
Four stroke, 90° V twin, longitudinally mounted, OHV, 4 valve per cylinder.
|
|
Capacity:
|
1064 cc / 64.9 cu-in
|
|
Bore x Stroke:
|
92 x 80 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.8:1
|
|
Induction:
|
Magneti Marelli IAW Multipoint phased sequential fuel injection
|
|
Ignition:
|
Magneti Marelli IAW electronic digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
91 hp / 66.3 kW @ 7800 rpm
|
|
Max Torque:
|
94 Nm / 69.3 lb-ft @ 6000 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
43mm Öhlins upside-down forks, adjustable compression
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Cantilever swingarm, Sachs Boge mono shock, adjustable compression and rebound damping
|
|
Rear Wheel Travel:
|
128 mm / 5.0 in
|
|
Front Brakes:
|
2x 320mm discs 4 piston calipers
|
|
Rear Brakes:
|
Single 282mm disc 2 piston caliper
|
|
Front Tyre:
|
120/70-17
|
|
Rear Tyre:
|
170/60-17
|
|
Trail:
|
103 mm / 4.1 in
|
|
Dimensions:
|
Length 2150 mm / 84.6 in Width 810 mm / 31.9 in
|
|
Wheelbase:
|
1490 mm / 58.7 in
|
|
Seat Height:
|
800 mm / 31.5 in
|
|
Ground Clearance:
|
178 mm / 7.0 in
|
|
Dry Weight:
|
226.0 kg / 498.2 lbs
|
|
Fuel Capacity:
|
20.7 Litres / 5.4 US gal
|
|
Consumption Average:
|
18.0 km/lit
|
|
Standing ¼ Mile:
|
12.6 sec
|
|
Top Speed:
|
214 km/h
|
