Moto Guzzi V-7 750 Sport (1971-72) technical specifications

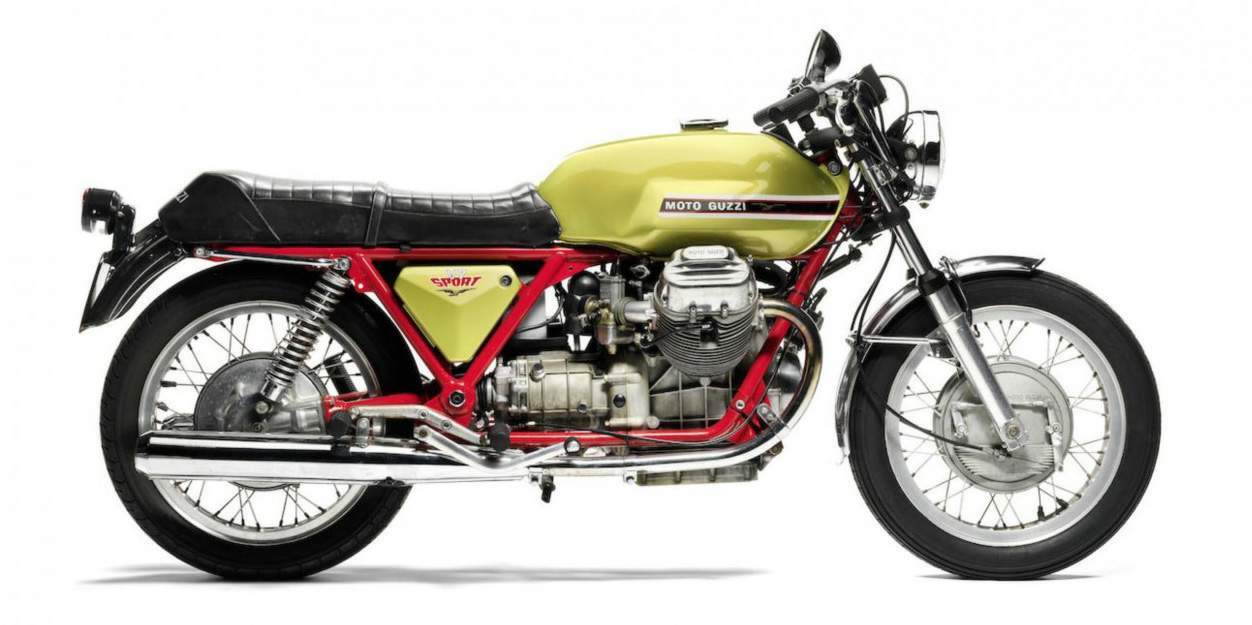

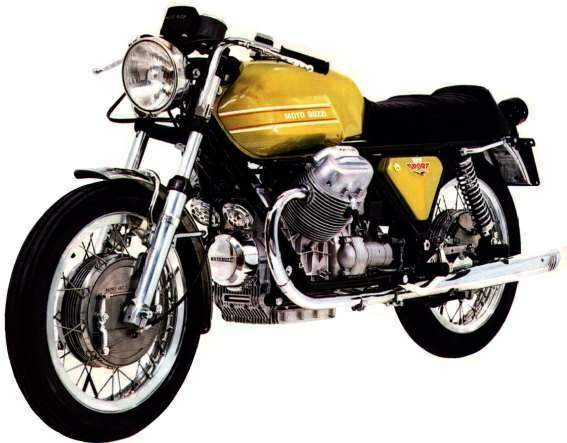

Moto Guzzi V-7 750 Sport is produced in 1971-72. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder, displacement 748.4 cc / 45.6 cu-in , produces power 70 hp / 32 kW @ 6300 rpm and NA. Moto Guzzi V-7 750 Sport weighs 206 kg / 454 lbS. Moto Guzzi V-7 750 Sport has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	V-7 750 Sport
Years:	1971-72
Engine:	Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder
Capacity:	748.4 cc / 45.6 cu-in
Bore x Stroke:	83 x 70 mm
Cooling System:	Air cooled
Compression Ratio:	9.8:1
Induction:	2x 30mm Dell'Orto VHB 30CD carburetors
Ignition:	Battery with double contact breaker with automatic advance
Starting:	Electric
Max Power:	70 hp / 32 kW @ 6300 rpm
Max Torque:	NA
Transmission:	5 Speed
Final Drive:	Shaft
Front Suspension:	Telehydraulic forks
Rear Suspension:	Swinging arm with hydraulic dampers preload adjustable
Front Brakes:	2x 220mm drum, Double-sided with twin leading shoes per side drum.
Rear Brakes:	220mm drum
Front Tyre:	90/90-18
Rear Tyre:	110/90-18
Dimensions:	Length 2200 mm / 85 in Width 710 mm / 28 in
Wheelbase:	1500 mm / 58 in
Seat Height:	760 mm / 30 in
Dry Weight:	206 kg / 454 lbS
Wet Weight:	227 kg / 500 lbs
Fuel Capacity:	17 Litres / 4.4 US gal
