Moto Guzzi V-7 700 (1967-68) technical specifications

Moto Guzzi V-7 700 technical specifications

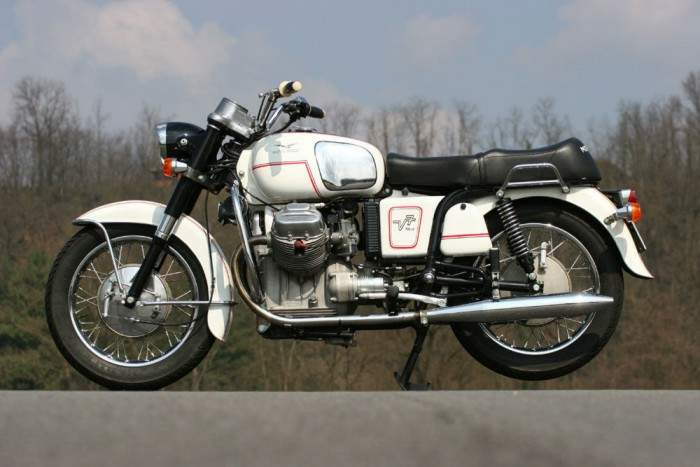

Moto Guzzi V-7 700 is produced in 1967-68. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder, displacement 703 cc / 43.9 cu-in , produces power 50 hp / 37.2 kW @ 6300 rpm and 49 Nm / 36 lb-ft @ 5000 rpm. Moto Guzzi V-7 700 weighs 228 kg / 502.6 lbs. Moto Guzzi V-7 700 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: V-7 700
Years: 1967-68
Engine: Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder
Capacity: 703 cc / 43.9 cu-in
Bore x Stroke: 80 x 70 mm
Cooling System: Air cooled
Compression Ratio: 9.0:1
Induction: Dell'orto SS I 29 DS carburetor
Ignition: Battery & coil
Starting: Electric
Max Power: 50 hp / 37.2 kW @ 6300 rpm
Max Torque: 49 Nm / 36 lb-ft @ 5000 rpm
Clutch: Twin driven dry plates
Transmission: 4 Speed
Final Drive: Shaft
Front Suspension: Telehydraulic forks
Rear Suspension: Swinging arm with hydraulic dampers.
Front Brakes: 2x 220mm drum
Rear Brakes: 220mm drum
Front Tyre: 4.00 -18
Rear Tyre: 4.00 -18
Dry Weight: 228 kg / 502.6 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
