Moto Guzzi NTX 750 (1989-95) technical specifications

Moto Guzzi NTX 750 technical specifications

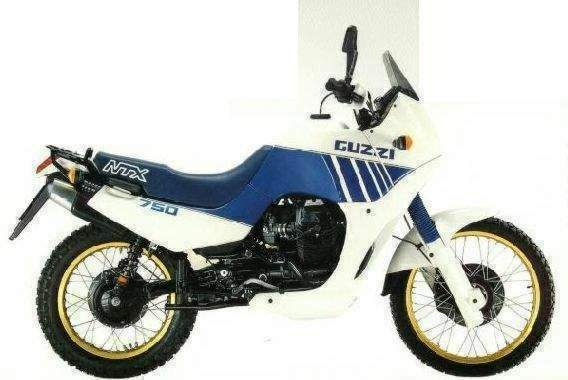

Moto Guzzi NTX 750 is produced in 1989-95. Engine is Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder., displacement 743.8 cc / 45.4 cu-in , produces power 52 hp / 38 kW @ 6600 rpm and 59 Nm / 6.1 kgf-m @ 4700 rpm. Moto Guzzi NTX 750 top speed is 164.8 km/h. Moto Guzzi NTX 750 wet weight is 202.0 kg / 445.3 lbs. Moto Guzzi NTX 750 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: NTX 750
Years: 1989-95
Engine: Four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Capacity: 743.8 cc / 45.4 cu-in
Bore x Stroke: 84 x 74 mm
Cooling System: Air cooled
Compression Ratio: 9.7:1
Induction: 2x 30mm Dell'Orto carburetors
Ignition: Electronic
Starting: Electric
Max Power: 52 hp / 38 kW @ 6600 rpm
Max Power Rear Tyre: 46.1 hp @ 6300rpm
Max Torque: 59 Nm / 6.1 kgf-m @ 4700 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Telescopic forks non adjustable
Rear Suspension: Dual shock air assisted, 5-way preload adjustment.
Front Brakes: Single 260mm disc
Rear Brakes: Single 260mm disc
Front Tyre: 3.00 S21
Rear Tyre: 4.00 S18
Wet Weight: 202.0 kg / 445.3 lbs
Fuel Capacity: 33 Litres / 8.7 US gal
Consumption Average: 15.0 km/lit
Braking 60 - 0 / 100 - 0: 15.6 m / 42.2 m
Standing ¼ Mile: 14.4 sec / 141.3 km/h
Top Speed: 164.8 km/h
Related links: Moto Guzzi V-Twin Off Roaders - Improbable Italian Enduros
