Moto Guzzi NTX 350 (1987-) technical specifications

Moto Guzzi NTX 350 technical specifications

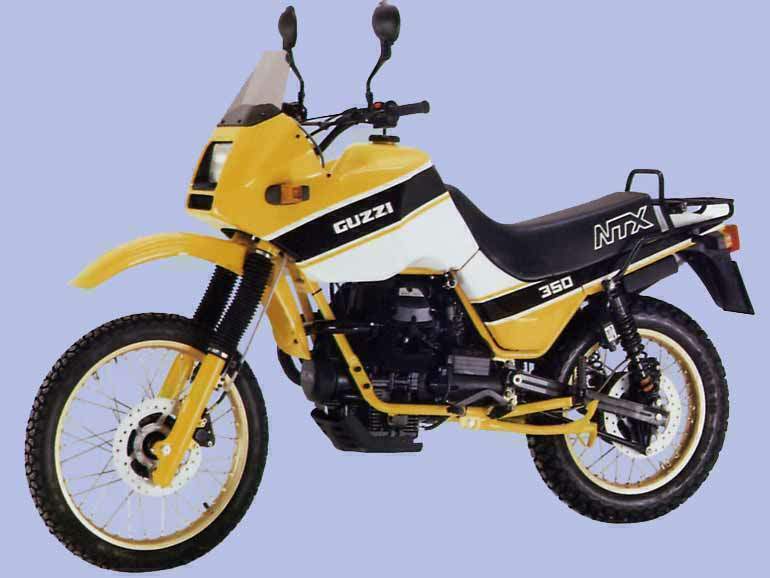

Moto Guzzi NTX 350 is produced in 1987-. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder., displacement 346.2 cc / 21.1 cu-in , produces power 35 hp / 26 kW @ 8100 rpm and 27.3 Nm / 20.2 lb-ft @ 6500 rpm. Moto Guzzi NTX 350 top speed is 139.7 km/h. Moto Guzzi NTX 350 weighs 165 kg / 363.7 lbs. Moto Guzzi NTX 350 has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: NTX 350
Years: 1987-
Engine: Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Capacity: 346.2 cc / 21.1 cu-in
Bore x Stroke: 66 x 50.6 mm
Cooling System: Air cooled
Compression Ratio: 10.5:1
Induction: 2x Dell'Orto PHBH 28 carburetors
Ignition: Electronic
Starting: Electric
Max Power: 35 hp / 26 kW @ 8100 rpm
Max Power Rear Tyre: 30 hp / 22.3 kW @ 7800 rpm
Max Torque: 27.3 Nm / 20.2 lb-ft @ 6500 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: Hydraulic telescopic forks
Rear Suspension: Twin shocks
Front Brakes: Single 260mm disc 2 piston caliper
Rear Brakes: Single 260mm disc 1 piston caliper
Front Tyre: 3.00_21
Rear Tyre: 4.00 _18
Dry Weight: 165 kg / 363.7 lbs
Wet Weight: 182 kg / 401 lbs
Fuel Capacity: 32 Litres / 8.4 US gal
Consumption Average: 16.7 km/lit
Braking 60 - 0 / 100 - 0: 16.8 m /46.6 m
Standing ¼ Mile: 16.9 sec / 117.9 km/h
Top Speed: 139.7 km/h
