Moto Guzzi Nevada 350 (1994-97) technical specifications

Moto Guzzi Nevada 350 technical specifications

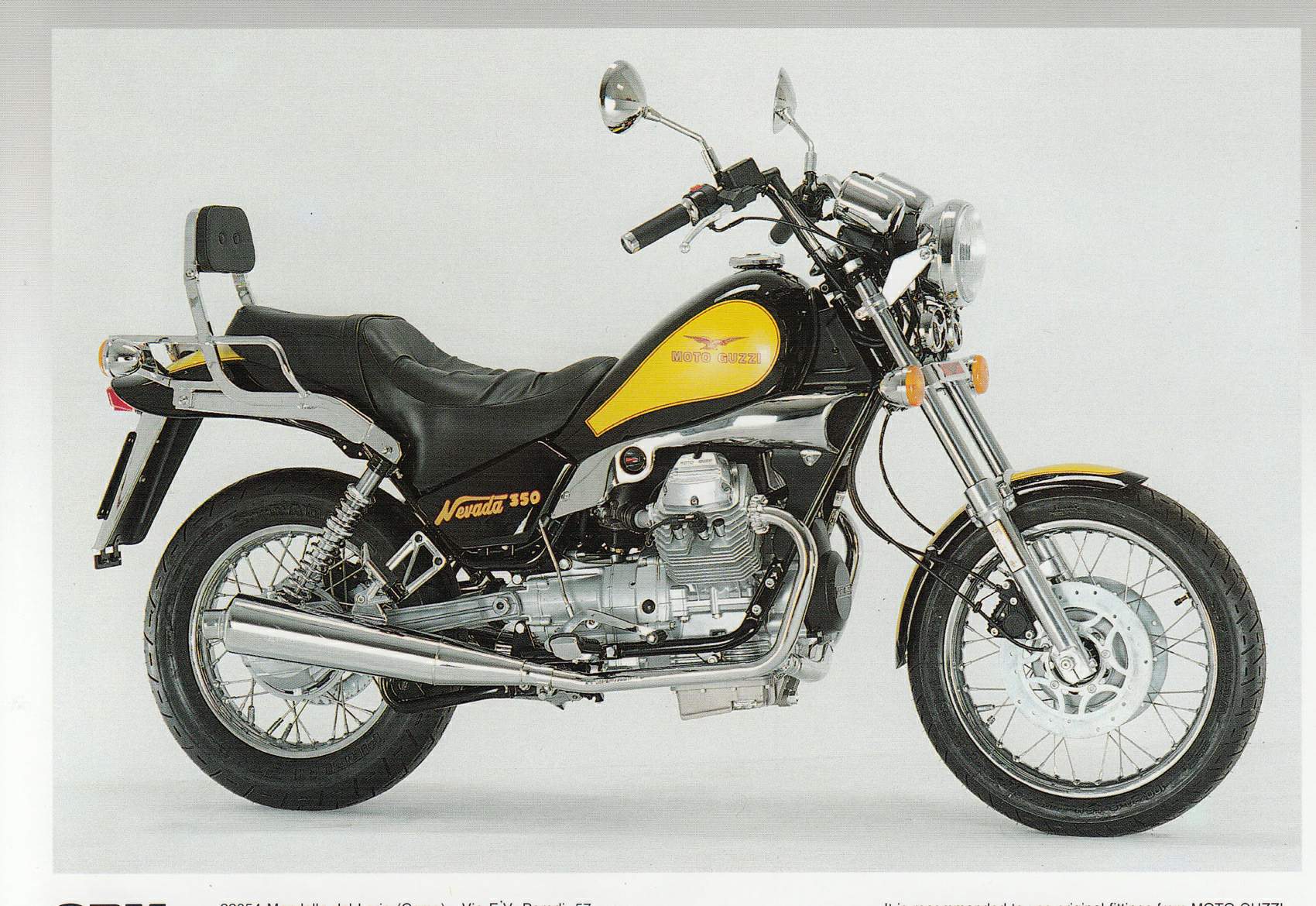

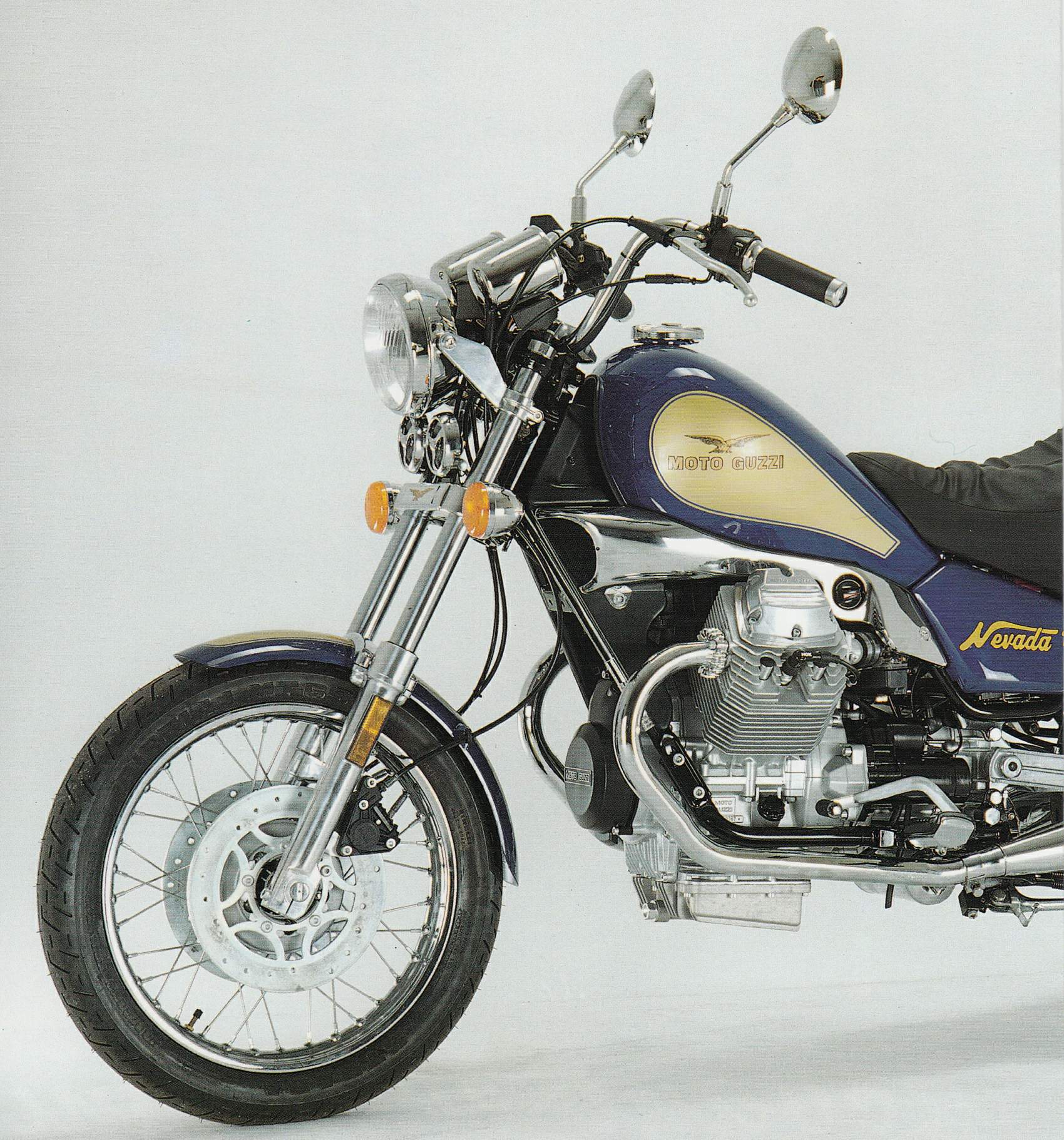

Moto Guzzi Nevada 350 is produced in 1994-97. Engine is Four stroke, 90°V twin, longitudinally mounted, OHV, 2 valve per cylinder., displacement 346 cc / 21.1 cu-in , produces power 22 kW / 30 hp @ 8200 rpm and 30 Nm / 3.1 kgf-m @ 6200 rpm. Moto Guzzi Nevada 350 top speed is 145.8 km/h. Moto Guzzi Nevada 350 weighs 175 kg / 386 lbs. Moto Guzzi Nevada 350 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Nevada 350
Years: 1994-97
Engine: Four stroke, 90°V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Capacity: 346 cc / 21.1 cu-in
Bore x Stroke: 66 x 50.6 mm
Cooling System: Air cooled
Compression Ratio: 10.6 :1
Lubrication: Pressure pump
Induction: 2x Dell'Orto PHBH 28 carburetors
Ignition: Electronic Motoplat double pick-up
Starting: Electric
Max Power: 22 kW / 30 hp @ 8200 rpm
Max Torque: 30 Nm / 3.1 kgf-m @ 6200 rpm
Clutch: Dry single plate
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Moto Guzzi hydropneumatic telescopic fork with pressure equalizer
Rear Suspension: Swinging fork, light alloy die-casting, with Bitubo adjustable shock-absorber
Front Brakes: 2x 270mm discs
Rear Brakes: Single 260mm disc
Wheels: Spokes with light a
Front Tyre: 100/90 H18
Rear Tyre: 130/90 H16
Dry Weight: 175 kg / 386 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
Standing ¼ Mile: 16.2 sec / 123.2 km/h
Top Speed: 145.8 km/h
