Moto Guzzi MGS-01 Corsa (2004-05) technical specifications

Moto Guzzi MGS-01 Corsa technical specifications

Moto Guzzi MGS-01 Corsa is produced in 2004-05. Engine is Air cooled, four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder., displacement 1225 cc / 76.6 cu-in , produces power 122 hp / 89.1 kW @ 8000 rpm and 83.2 lb-ft / 112.8 Nm @ 640 rpm. Moto Guzzi MGS-01 Corsa weighs 192 kg / 423.3 lbs. Moto Guzzi MGS-01 Corsa has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: MGS-01 Corsa
Years: 2004-05
Engine: Air cooled, four stroke, V twin, longitudinally mounted, OHV, 4 valve per cylinder.
Capacity: 1225 cc / 76.6 cu-in
Bore x Stroke: 100 x 78 mm
Compression Ratio: 11.0;1
Induction: 50mm Marelli infection
Ignition: Digital
Starting: Electric
Max Power: 122 hp / 89.1 kW @ 8000 rpm
Max Torque: 83.2 lb-ft / 112.8 Nm @ 640 rpm
Transmission / Drive: 6 Speed
Final Drive: Shaft
Frame: Rectangular section single-beam
Front Suspension: 43mm Öhlins upside-down forks, adjustable compression
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: aluminium-plate swinging fork with Öhlins shock absorber, fully adjustable
Rear Wheel Travel: 110 mm / 4.3 in

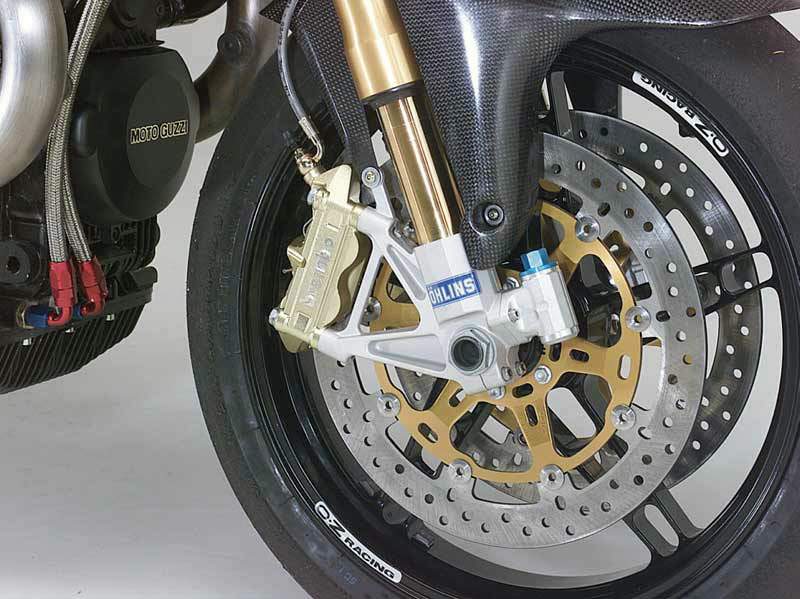

Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 282mm disc 2 piston caliper
Front Tyre: 120/70 -17
Rear Tyre: 180/55 -17
Rake: 23.5°
Trail: 95 mm / 3.7 in
Dimensions: Height 1180 mm / 46.5 in Length 2010 mm / 79.1 in Width 780 mm / 30.7 in
Wheelbase: 1428 mm / 56.2 in
Seat Height: 820 mm / 32.3 in
Dry Weight: 192 kg / 423.3 lbs
Fuel Capacity: 20 Litres / 5.2 US gal
