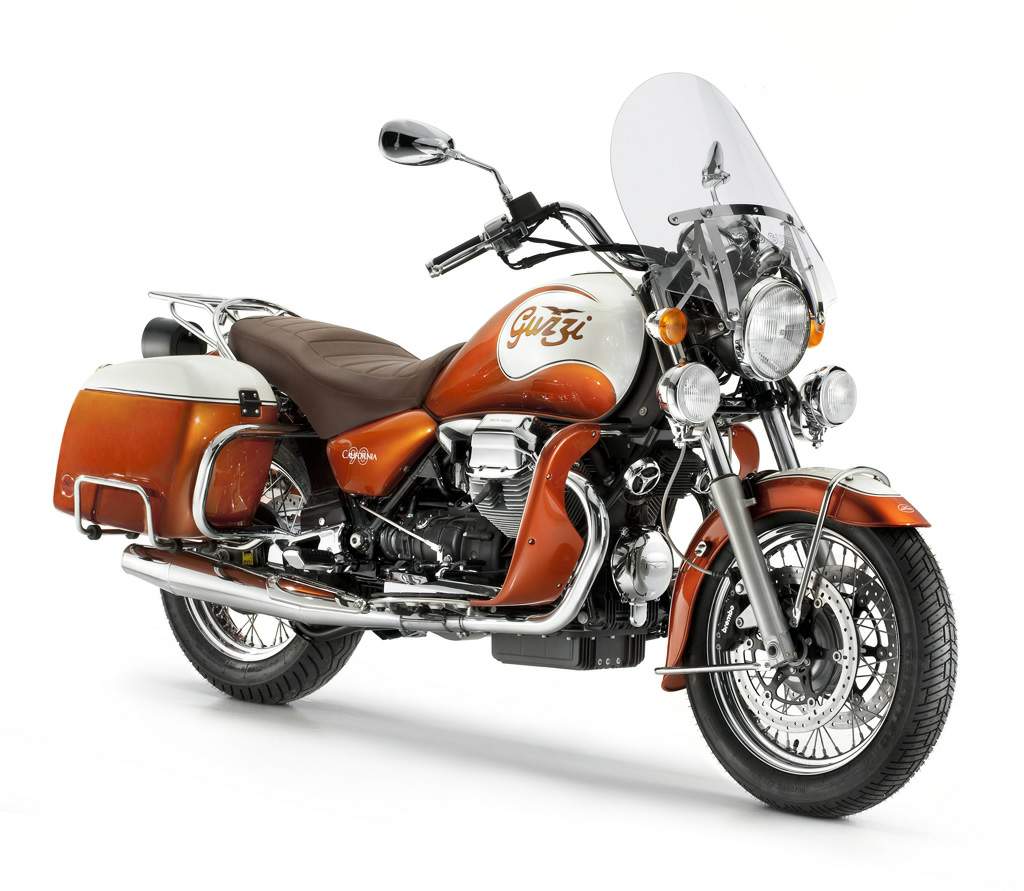

Moto Guzzi California 90 Limited Edition (2012) technical specifications

Moto Guzzi California 90 Limited Edition is produced in 2012. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder., displacement 1064 cc / 64.9 cu-in , produces power 55 kW / 74 hp @ 6400 rpm and 88 Nm / 64.9 lb-ft @ 5000 rpm. Moto Guzzi California 90 Limited Edition weighs 250.8 kg / 553.0 lbs. Moto Guzzi California 90 Limited Edition has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	California 90 Limited Edition
Years:	2012
Engine:	Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Capacity:	1064 cc / 64.9 cu-in
Bore x Stroke:	92 x 80 mm
Cooling System:	Air cooled
Compression Ratio:	9.8:1
Lubrication:	Forced lobes, with geared pump and pressure regulator
Exhaust:	2 into 2 exhaust; three-way catalyzer with Lambda sensor (Euro 3)
Induction:	Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 nozzle holders of 40 mm with injectors Weber IW 031
Ignition:	Magneti Marelli IAW 15RC electronic digital ignition with inductive spark
Starting:	Electric
Max Power:	55 kW / 74 hp @ 6400 rpm
Max Torque:	88 Nm / 64.9 lb-ft @ 5000 rpm
Clutch:	Single disc, dry, with mechanical control
Transmission:	5 Speed
Final Drive:	Shaft
Gear Ratio:	1st 14/28 = 1 : 2 2st 18/25 = 1 : 1,389 3rd 21/22 = 1 : 1,048 4th 23/20 = 1 : 0,870 5th 28/21 = 1 : 0,750
Frame:	Detachable tubular duplex cradle in special high-strengh steel
Front Suspension:	45mm Marzocchi hydraulic telescopic fork, adjustable separately
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	swing arm with 2 hydraulic shock absorbers, exstension adjustable
Rear Wheel Travel:	96 mm / 3.8 in
Front Brakes:	2x 320mm discs 4 piston calipers
Rear Brakes:	Single 282mm disc 2 piston caliper
Front Tyre:	110/90 VB18
Rear Tyre:	140/70 VB17
Rake:	29.0°
Trail:	116 mm / 4.6 in
Dimensions:	Height 1389 mm / 54.7 in Length 2362 mm / 93.0 in Width 813 mm / 32.0 in
Wheelbase:	1560 mm / 61.4 in
Seat Height:	780 mm / 30.7 in
Ground Clearance:	190 mm / 7.5 in
Dry Weight:	250.8 kg / 553.0 lbs
Fuel Capacity:	19 Litres / 5.0 US gal
