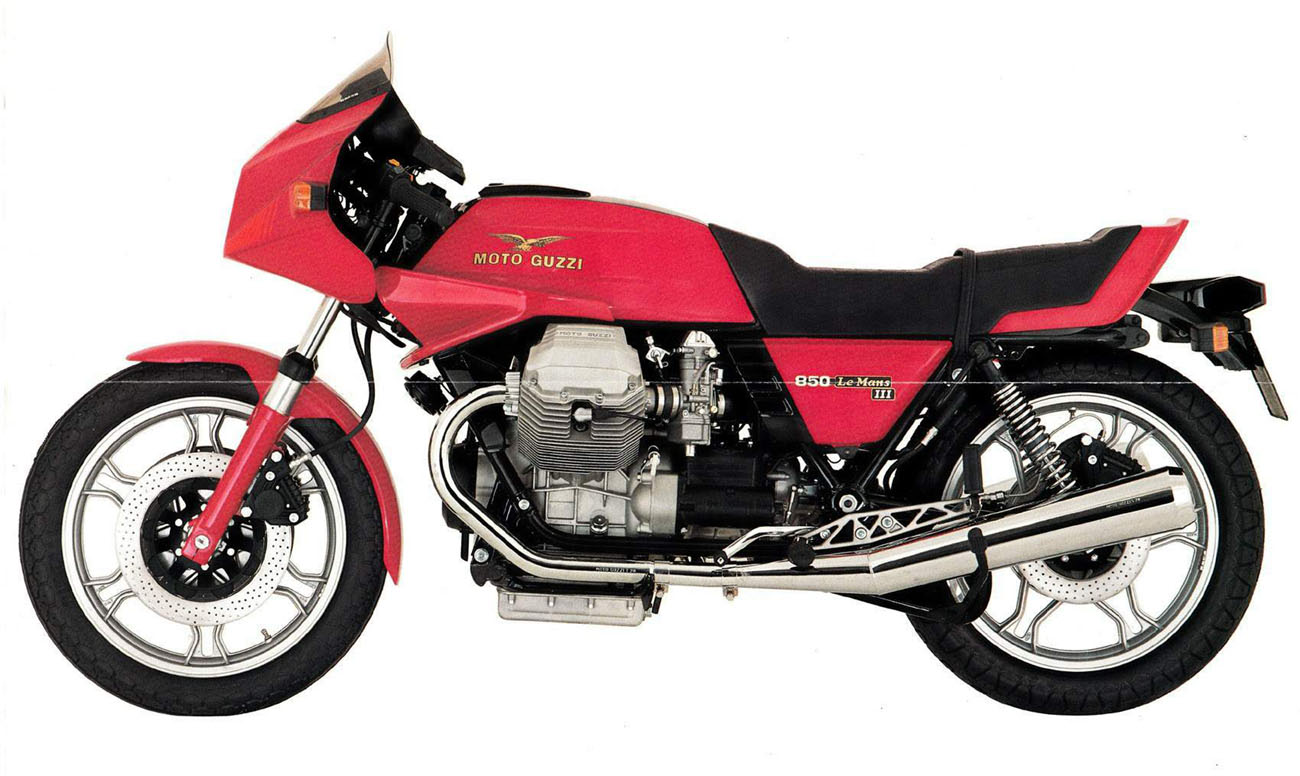

Moto Guzzi 850 Le Mans Mark III (1983) technical specifications
Moto Guzzi 850 Le Mans Mark III is produced in 1983. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder, displacement 844 cc / 51.5 cu-in , produces power 76 hp / 56 kW @ 7700 rpm and 74.5 Nm / 54.9 lb-ft @ 6200 rpm. Moto Guzzi 850 Le Mans Mark III top speed is 132 mph. Moto Guzzi 850 Le Mans Mark III weighs 206 kg / 454 lbs. Moto Guzzi 850 Le Mans Mark III has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 850 Le Mans Mark III |
| Years: | 1983 |
| Engine: | Four stroke, 90° V twin, longitudinally mounted, OHV pushrod, 2 valves per cylinder |
| Capacity: | 844 cc / 51.5 cu-in |
| Bore x Stroke: | 83 x 78 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.8:1 |
| Lubrication: | Pressure pump |
| Induction: | 2x 36mm Dell'Orto carburetors with accelerator pump, with air filtering and inlet silencer |
| Ignition: | Battery and coil |
| Starting: | Electric |
| Max Power: | 76 hp / 56 kW @ 7700 rpm |
| Max Torque: | 74.5 Nm / 54.9 lb-ft @ 6200 rpm |
| Clutch: | Dry with double disc |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Frame: | Duplex cradle, disasemblable |
| Front Suspension: | 35mm Telescopic air assisted forks |
| Front Wheel Travel: | 140 mm / 5.5 in |
| Rear Suspension: | Dual charged shocks, spring preload adjustable |
| Rear Wheel Travel: | 94 mm / 3.7 in |
| Wheels: | Light alloy casting |
| Front Brakes: | 2x 300mm discs 2 piston calipers |
| Rear Brakes: | Single 242mm disc 2 piston caliper |
| Front Tyre: | 100/90 V18 |
| Rear Tyre: | 110/90 V18 |
| Dry Weight: | 206 kg / 454 lbs |
| Fuel Capacity: | 25 Litres / 6.0 US gal |
| Consumption Average: | 43.5 mpg |
| Standing ¼ Mile: | 12.6 sec / 106.3 mph |
| Top Speed: | 132 mph |
| Road Test: | Ducati 900SS vs Le Mans III |
