Matchless G80, G80C, G80 CS, G80S (1946-66) technical specifications

Matchless G80, G80C, G80 CS, G80S technical specifications

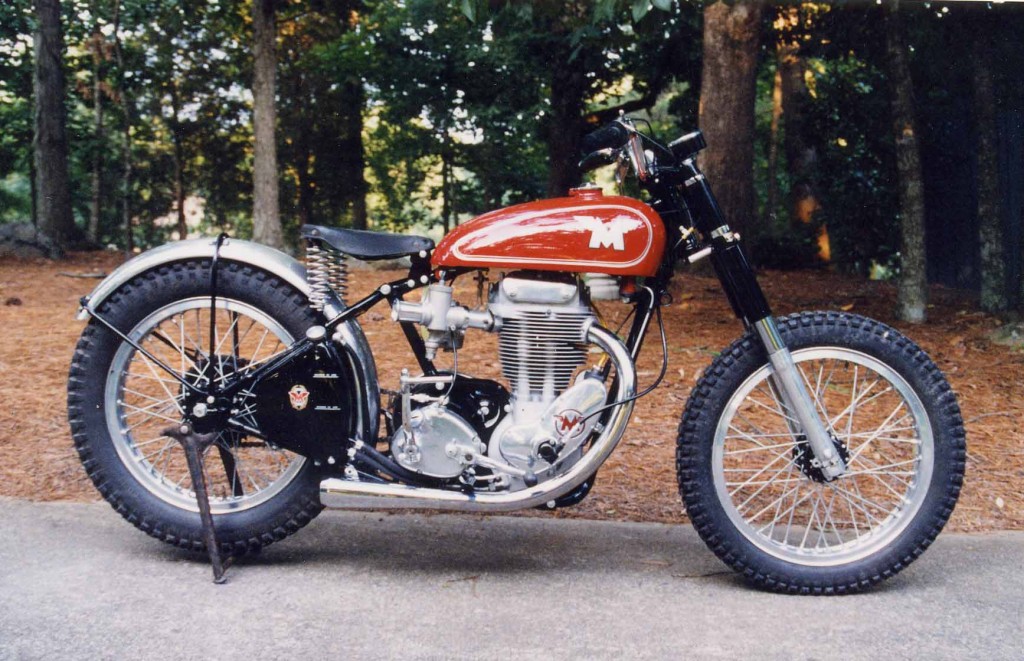

Matchless G80, G80C, G80 CS, G80S is produced in 1946-66. Engine is Four stroke, single cylinder, pushrod, displacement 498 cc / 30.3 cub in. , produces power 21 kW / 28 hp @ 5600 rpm. Matchless G80, G80C, G80 CS, G80S top speed is 126 km/h / 78 mph. Matchless G80, G80C, G80 CS, G80S weighs 177 kg / 390 lbs. Matchless G80, G80C, G80 CS, G80S has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: G80, G80C, G80 CS, G80S
Years: 1946-66
Engine: Four stroke, single cylinder, pushrod
Capacity: 498 cc / 30.3 cub in.
Bore x Stroke: 82.5 x 93 mm
Cooling System: Air cooled
Compression Ratio: 1946 onwards: 5.9:1 From 1956: 7.3:1
Lubrication: Dry sump with external oil tank
Exhaust: Single, right side
Fuel System: Amal 27 mm carburetor
Ignition: Magneto
Starting: Kick
Max Power: 21 kW / 28 hp @ 5600 rpm
Transmission: 4-Speed
Final Drive: Chain
Frame: Duplex frame
Front Suspension: G80L: Teledraulic fork G80: Girder fork
Rear Suspension: G80: None, springloaded saddle G80S : Swingarm, springloaded
Front Brakes: Drum
Rear Brakes: Drum
Wheels: Steel, wire spokes
Wheelbase: 1397 mm / 55.0 in.
Dry Weight: 177 kg / 390 lbs
Top Speed: 126 km/h / 78 mph
