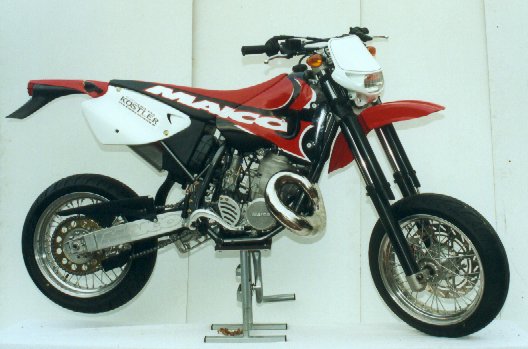

Maico Supermoto 320 (2003-2007) technical specifications
Maico Supermoto 320 is produced in 2003-2007. Engine is Single cylinder, two stroke, displacement 318 cc / 19.4 cub in , produces power 41.8 kW / 56 hp. Maico Supermoto 320 weighs 109 kg / 240 lbs. Maico Supermoto 320 has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Supermoto 320 |
| Years: | 2003-2007 |
| Engine: | Single cylinder, two stroke |
| Capacity: | 318 cc / 19.4 cub in |
| Bore x Stroke: | 76 x 70 mm |
| Cooling System: | Liquid cooled |
| Lubrication: | Wet sump |
| Exhaust: | Single, upswept |
| Fuel System: | Bing 40 oval |
| Ignition: | 12V 130W SEM |
| Starting: | Kick |
| Max Power: | 41.8 kW / 56 hp |
| Clutch: | Wet, multi plate |
| Transmission: | 5-Speed |
| Final Drive: | Chain |
| Frame: | Chrom Molybdän Rohr |
| Front Suspension: | WP 48 |
| Front Wheel Travel: | 305 mm / 12.0 in. |
| Rear Suspension: | MAICO Twin link Reiger shock |
| Rear Wheel Travel: | 320 mm / 12.6 in |
| Front Brakes: | Single disc, 260 mm, 2-piston caliper |
| Rear Brakes: | Single disc, 220 mm , 1-piston caliper |
| Wheels: | Alloy, wire spokes |
| Front Rim: | 3.50 x 17 in. |
| Rear Rim: | 4.25 x 17 in. |
| Front Tyre: | 120/70-17 |
| Rear Tyre: | 150/60-17 |
| Wheelbase: | 1480 mm / 58.3 in. |
| Ground Clearance: | 358 mm / 14.1 in. |
| Seat Height: | 930 mm / 36.6 in. |
| Dry Weight: | 109 kg / 240 lbs |
| Fuel Capacity: | 9.5 L / 2.5 US gal |
