KTM RC 200 (2016) technical specifications

KTM RC 200 technical specifications

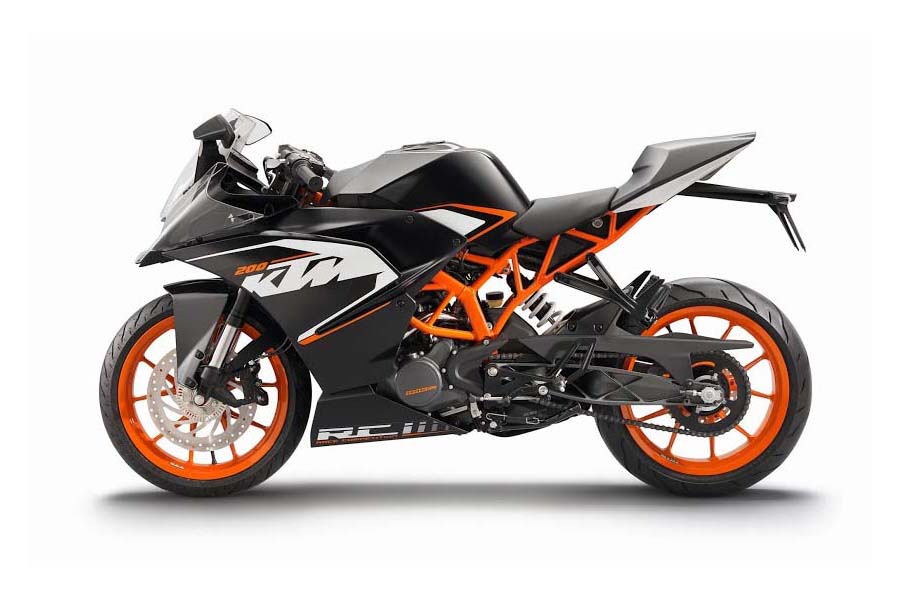

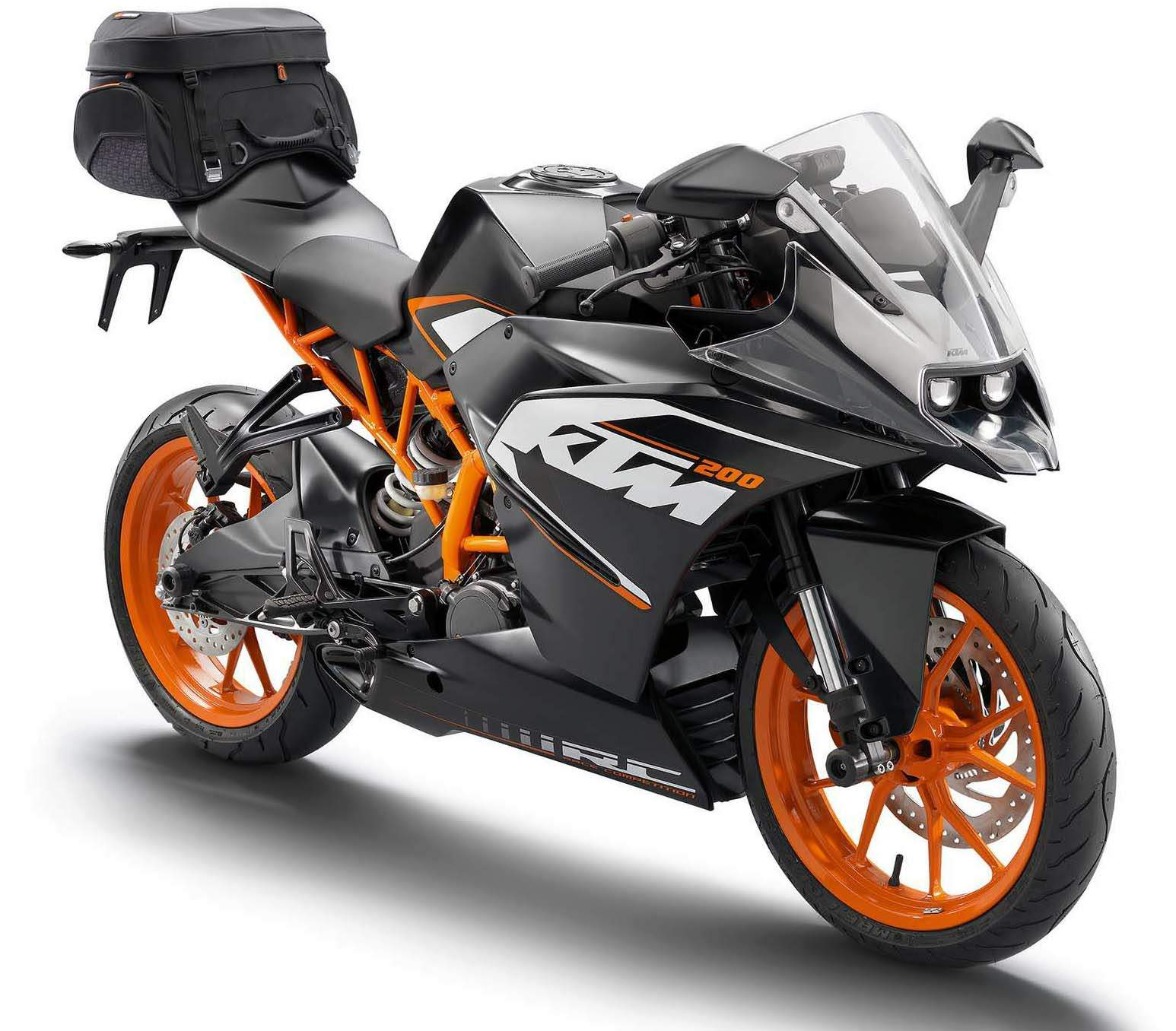

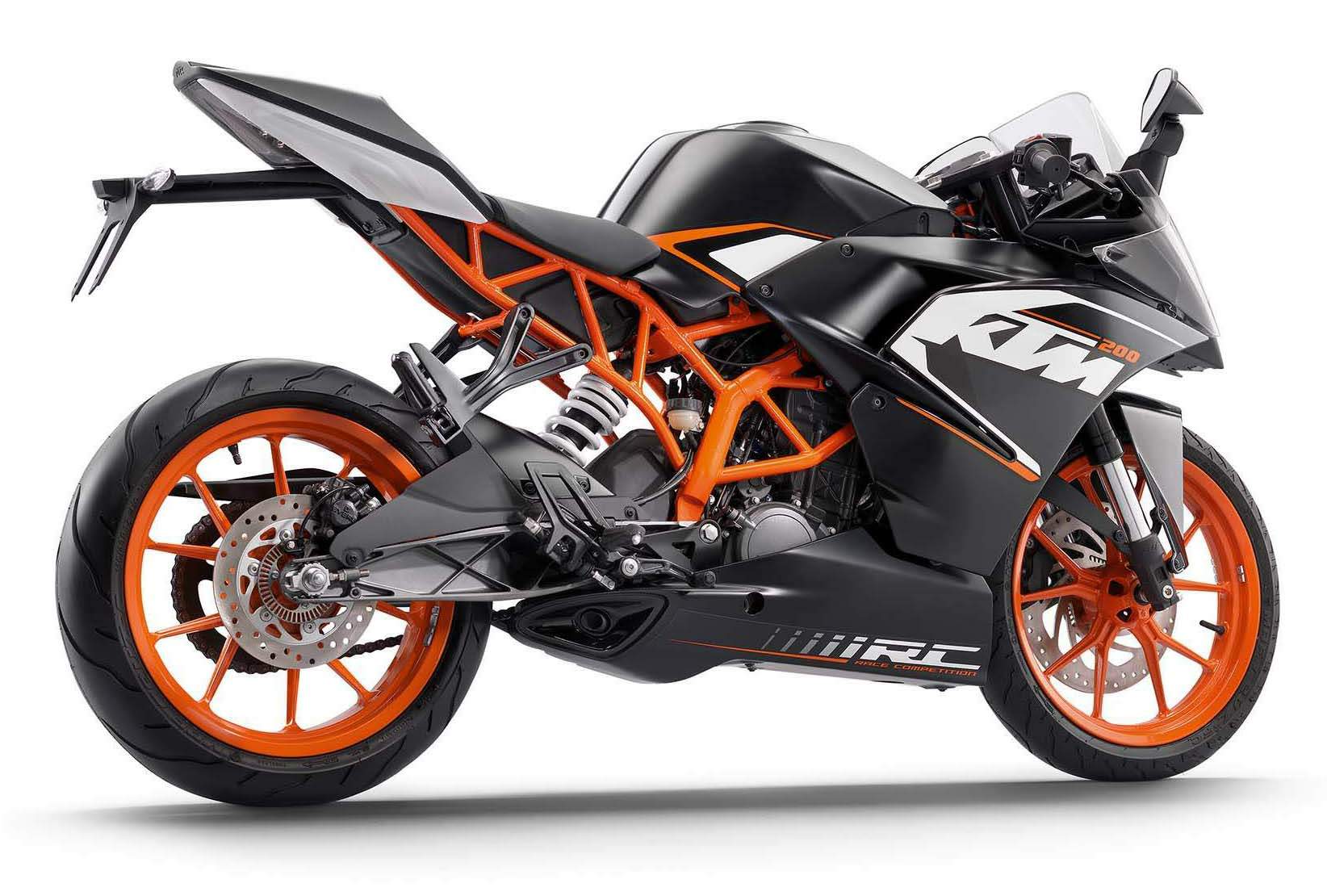

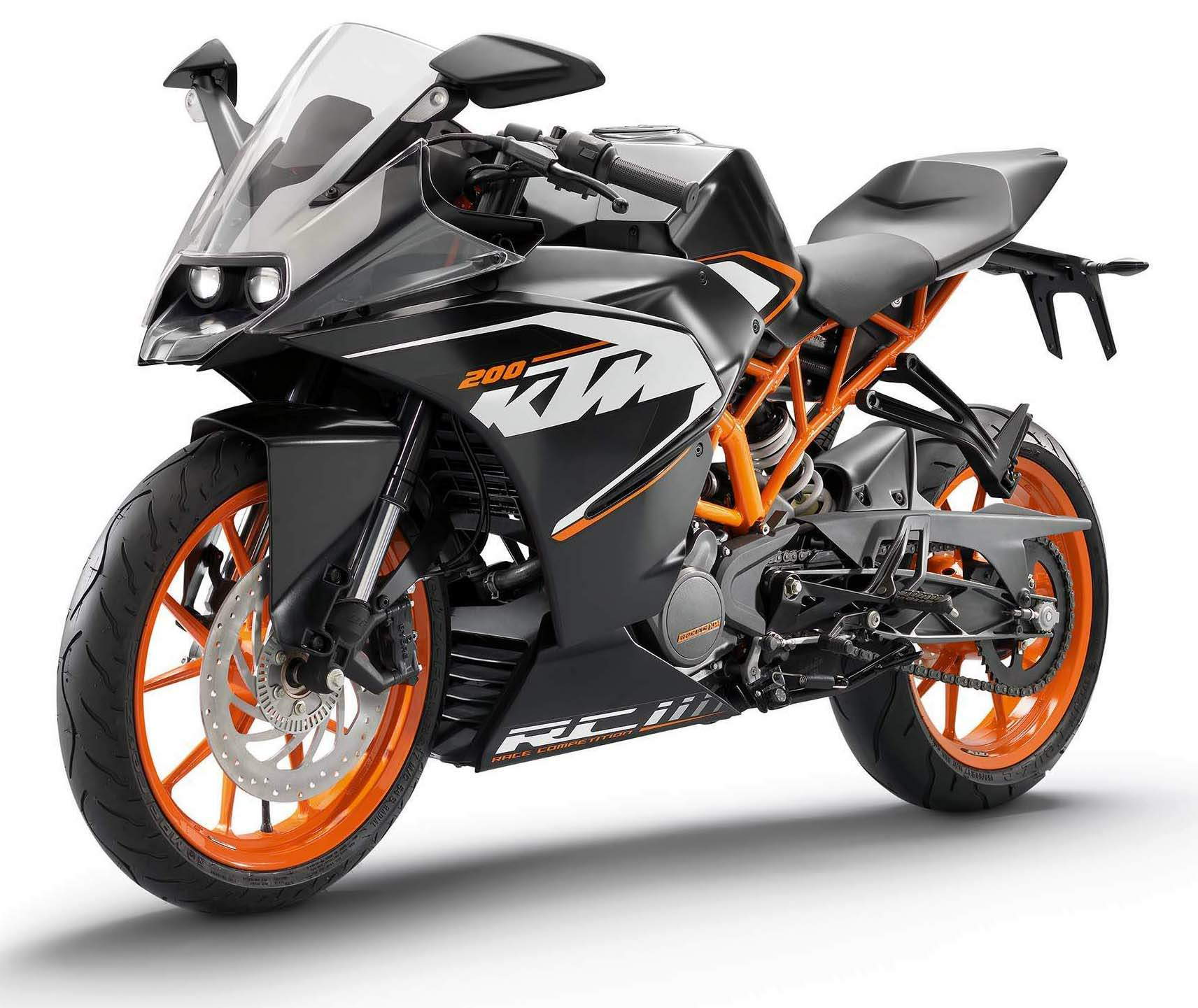

KTM RC 200 is produced in 2016. Engine is Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder,, displacement 199.5 cc / 12.1 cu-in , produces power 25.4 hp / 18.6 kW @ 10000 rpm and 14 lb-ft / 19.2 Nm @8000 rpm. KTM RC 200 weighs 137.0 kg / 303 lbs. KTM RC 200 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: RC 200
Years: 2016
Engine: Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder,
Capacity: 199.5 cc / 12.1 cu-in
Bore x Stroke: 72 x 49 mm
Cooling System: Liquid Cooled
Compression Ratio: 14.5:1
Induction: Bosch Injection
Engine Lubrication: Forced oil lubrication with 2 Eaton pumps
Ignition system: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starting: Electric
Max Power: 25.4 hp / 18.6 kW @ 10000 rpm
Max Torque: 14 lb-ft / 19.2 Nm @8000 rpm
Clutch: Wet multi-disc clutch / mechanically operated
Transmission: 6 Speed
Final Drive: Chain 5/8 x 1/4” X‑Ring
Primary Gear Ratio: 30:80
Secondary Gear Ratio: 15:45
Frame: Tubular space frame made from steel, powder-coated
Front Suspension: WP Suspension Up Side Down
Font Wheel Travel: 125 mm / 4.9 in
Rear Suspension: WP Monoshock
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: Single 300 mmdisc
Rear Brakes: Single 230 mm disc
Front Tyre: 95/75-R17
Rear Tyre: 115/75-R17
Rake: 65 °
Trail: 100 mm / 3.9 in
Seat Height: 820 mm / 32.3 in
Wheelbase: 1210 mm / 47.6 in
Ground Clearance: 179 mm / 7.0 in
Dry Weight: 137.0 kg / 303 lbs
Fuel Capacity: 10 Litres / 2.6 US gal
