KTM Freeride 250R (2016-17) technical specifications

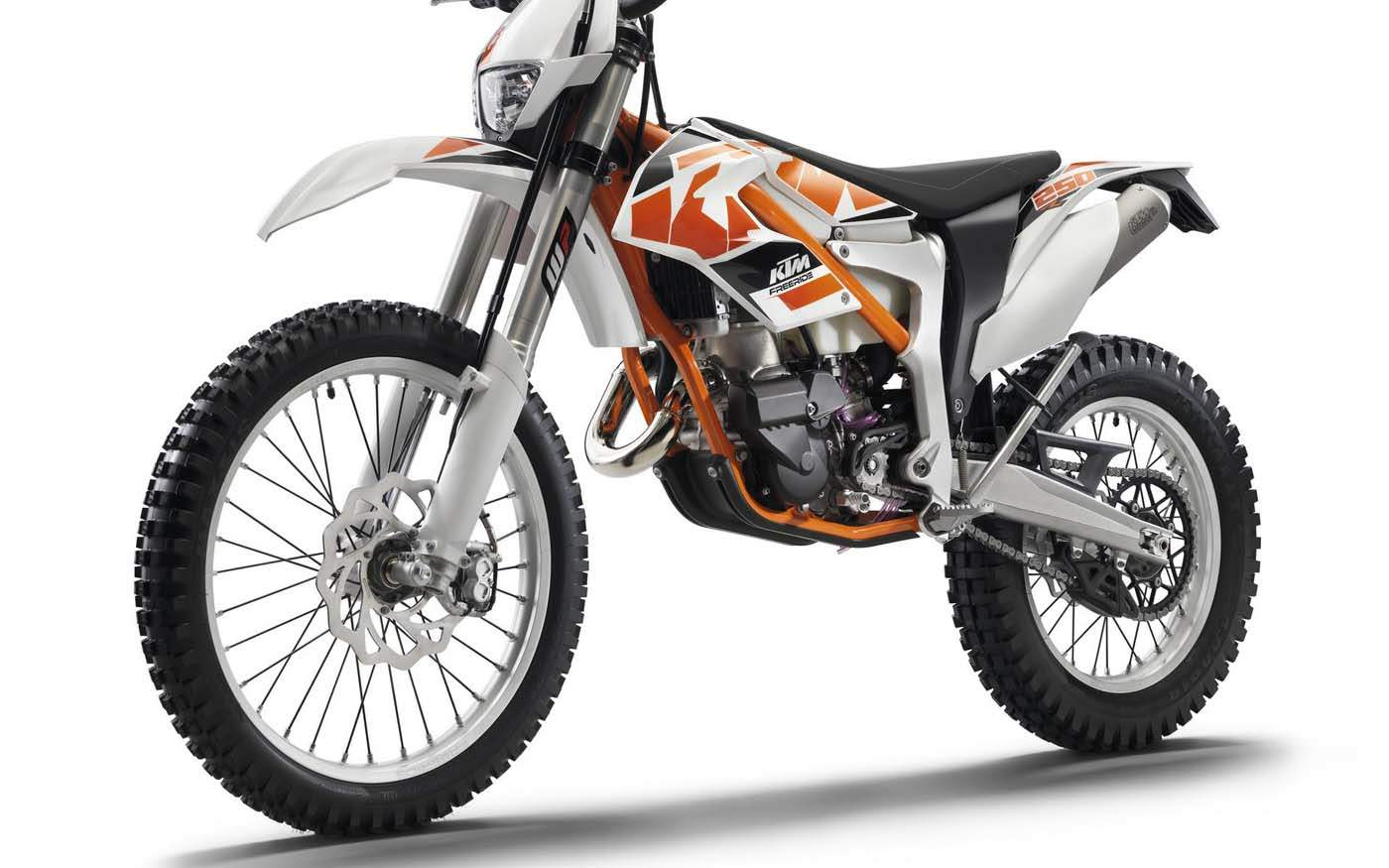

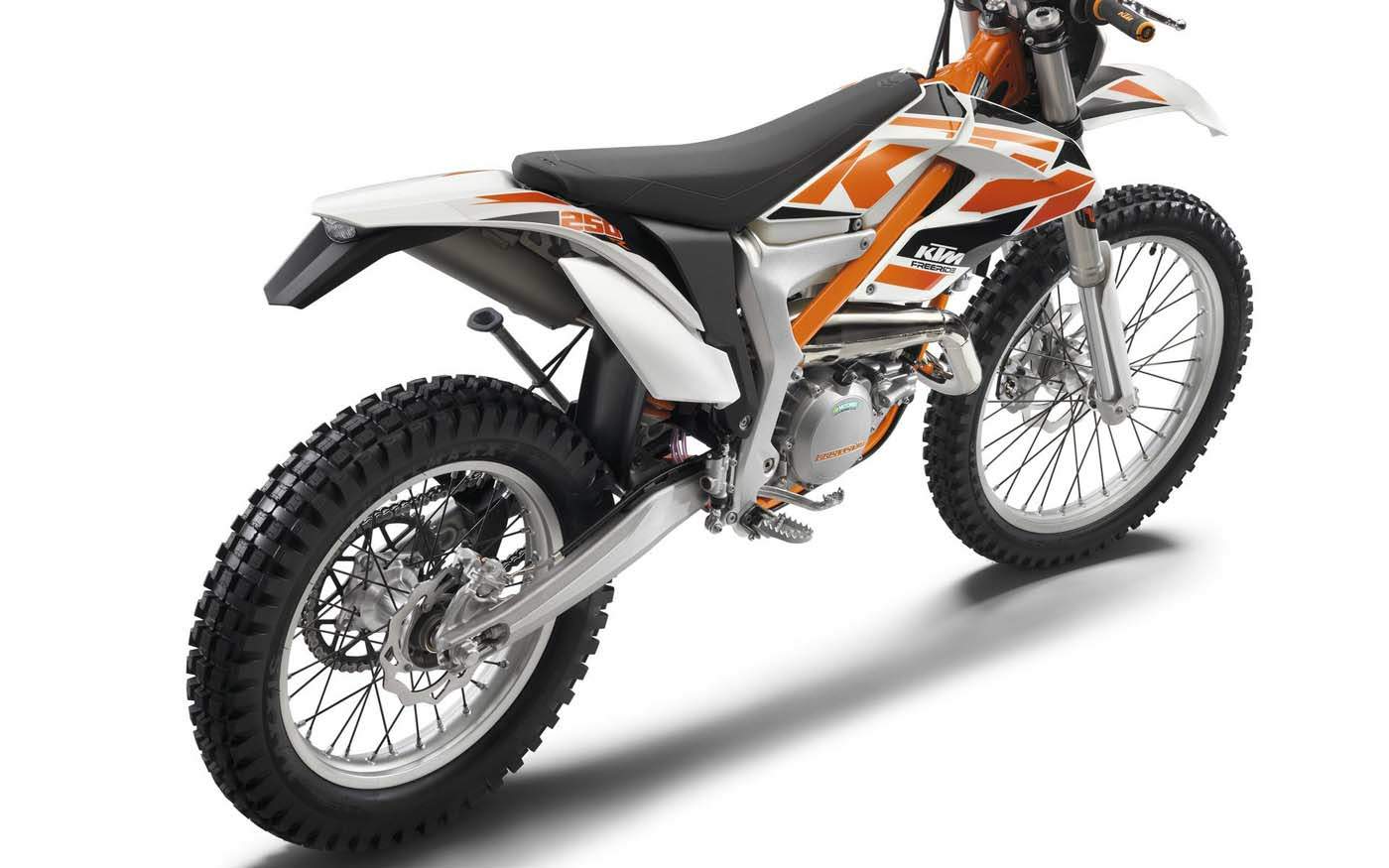

KTM Freeride 250R is produced in 2016-17. Engine is Two stroke, single cylinder, displacement 249 cc / 15.2 cu-in , produces power NA and NA. KTM Freeride 250R weighs 92.5 kg / 204 lbs. KTM Freeride 250R has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Freeride 250R |
| Years: | 2016-17 |
| Engine: | Two stroke, single cylinder |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 66.4 X 72 mm |
| Cooling System: | Liquid Cooled |
| Compression Ratio: | 12.3:1 |
| Induction: | Carburettor |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Starting: | Electric |
| Max Power: | NA |
| Max Torque: | NA |
| Clutch: | Wet multi-disc clutch, Brembo hydraulics |
| Transmission: | 6 Speed, claw shifted |
| Final Drive: | Chain 5/8 x 1/4" X Ring |
| Primary Ratio: | 26:72 |
| Frame: | Perimeter steel-aluminium composite frame |
| Front Suspension: | WP Suspension4357 MXMA |
| Front Wheel Travel: | 250 mm / 9.8 in |
| Rear Suspension: | WP-PDS shock absorber, |
| Rear Wheel Travel: | 280 mm / 11.0 in |
| Front Brakes: | Single 260mm disc 2 piston caliper |
| Rear Brakes: | Single 210mm disc 1 piston caliper |
| Front Tyre: | 80/100-21 |
| Rear Tyre: | 110/90-19 |
| Rake: | 23.0° |
| Wheelbase: | 1418 mm / 55.8 in |
| Seat Height: | 915 mm / 36.0 in |
| Steering Head Angle: | 67° |
| Ground Clarence: | 325 mm / 12.7 in |
| Dry Weight: | 92.5 kg / 204 lbs |
| Fuel Capacity: | 7.0 Litres / 1.85 US gal |
