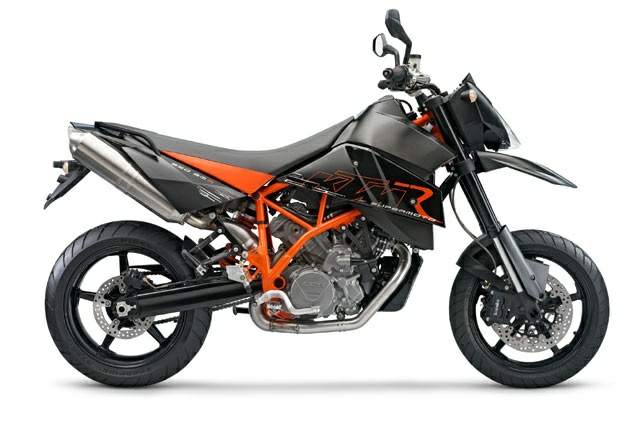

KTM 950 Supermoto R (2007-08) technical specifications

KTM 950 Supermoto R is produced in 2007-08. Engine is Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder, displacement 942 cc / 57.4 cu-in , produces power 98 hp / 72 kW @ 8500 rpm and 95 Nm / 70.1 lb-ft @ 6500 rpm. KTM 950 Supermoto R top speed is 137 mph. KTM 950 Supermoto R weighs 191 kg / 421 lbs. KTM 950 Supermoto R has 1 photos.

Technical specifications

+ Add to 'Compare list'

Model:	950 Supermoto R
Years:	2007-08
Engine:	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Capacity:	942 cc / 57.4 cu-in
Bore x Stroke:	100 x 60 mm
Cooling System:	Liquid cooling
Compression Ratio:	11.5;1
Lubrication:	Pressure lubrication with 2 Eaton pumps
Engine Oil:	Synthetic, 15w-50
Induction:	2X 43mm Keihin constant pressure
Spark Plug:	NGK, NGK CR 8 EK
Ignition:	Denso battery ignition
Starting:	Electric
Max Power:	98 hp / 72 kW @ 8500 rpm
Max Torque:	95 Nm / 70.1 lb-ft @ 6500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Tubular cromoly spaced frame. powered coated
Front Suspension:	48mm WP Upside down adjustable
Front Wheel Travel:	200 mm / 7.8 in
Rear Suspension:	WP shock, fully adjustable
Rear Wheel Travel:	210 mm / 8.2 in
Front Brakes:	2x 305mm discs 4 piston calipers
Rear Brakes:	Single 240mm disc 1 piston caliper
Front Tyre:	120/70 -ZR17
Rear Tyre:	180/55 -ZR17
Rake:	24.4°
Trail:	109 mm / 4.3 in
Wheelbase:	1505 mm / 59.3 in
Seat Height:	875 mm / 34.45 in
Ground Clearance:	195 mm / 7.7 in
Dry Weight:	191 kg / 421 lbs
Fuel Capacity:	15 Litres / 3.9 gal
Standing ¼ Mile:	11.4 sec / 116.5 mph
Top Speed:	137 mph
