Technical specifications
|
| Model: |

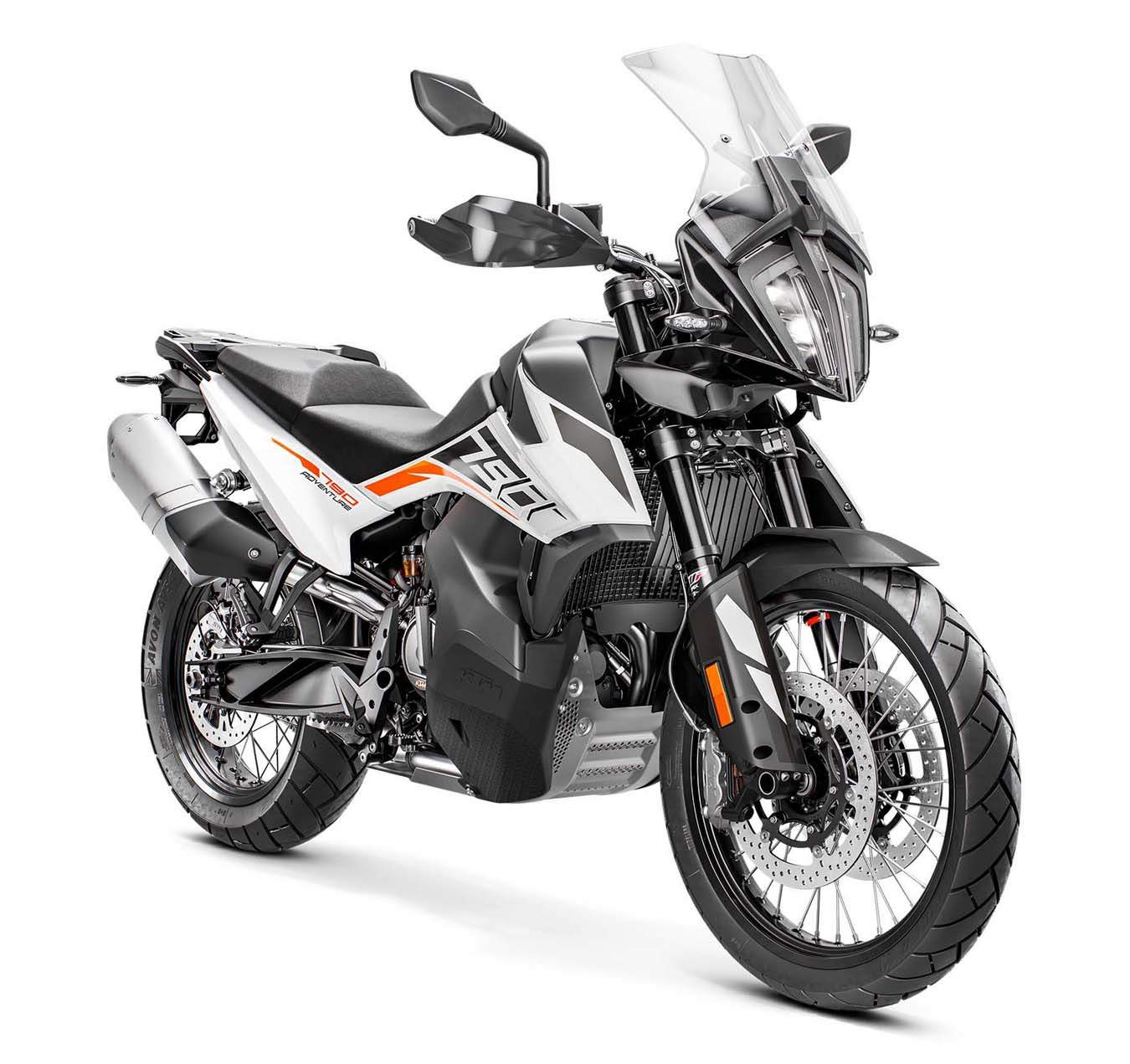

790 Adventure |
| Years: |
2020 |
|
Engine:
|
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
|
|
Capacity:
|
799 cc / 48.7 cu-in
|
|
Bore x Stroke:
|
88 mm x 65.7 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
|
|
Exhaust:
|
Stainless steel primary and secondary silencer
|
|
Lubrication:
|
Pressure Lubrication with Two Oil Pumps
|
|
Induction:
|
DKK Dell’Orto, 46 mm Throttle Body
|
|
Ignition:
|
Bosch EMS with Ride-By-Wire
|
|
Starting:
|
Electric, 12V 10Ah
|
|
Max Power:
|
94hp / 70 kW @
|
|
Max Torque:
|
88 Nm / 65 lb-ft @
|
|
Clutch:
|
PASC (Power Assisted Slipper Clutch), Mechanically Operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
CroMoly Tubular Steel, Engine as Stressed Member, Subframe: CroMoly Steel Trellis
|
|
Handlebar:
|
Aluminum, Tapered, Ø 26/22 mm
|
|
Front Suspension:
|
APEX 43mm WP upside-down forks.
|
|
Front Wheel Travel:
|
200 mm / 7.9 in
|
|
Rear Suspension:
|
WP monoshock
|
|
Rear Wheel Travel:
|
200 mm / 7.9 in
|
|
Front Brakes:
|
2x 320mm discs. ABS
|
|
Rear Brakes:
|
Single 260mm disc. ABS
|
|
Front Wheel:
|
2.50 x 21”,
|
|
Rear Wheel:
|
4.50 x 18”
|
|
Front Tyre:
|
90/90-21
|
|
Rear Tyre:
|
150/70-18
|
|
Steering Head Angle:
|
25.9º
|
|
Wheel base:
|
1509 mm ± 15 mm / 59.4 ± 0.6 in
|
|
Seat Height:
|
850 / 830 mm; 33.5 / 32.7 in
|
|
Ground Clearance:
|
233 mm / 9.2 in
|
|
Dry Weight:
|
189 kg / 416.7 lbs
|
|
Wet Weight:
|
203 kg / 448 lbs
|
|
Fuel Capacity:
|
20 Litres / 5.3 US gal
|
