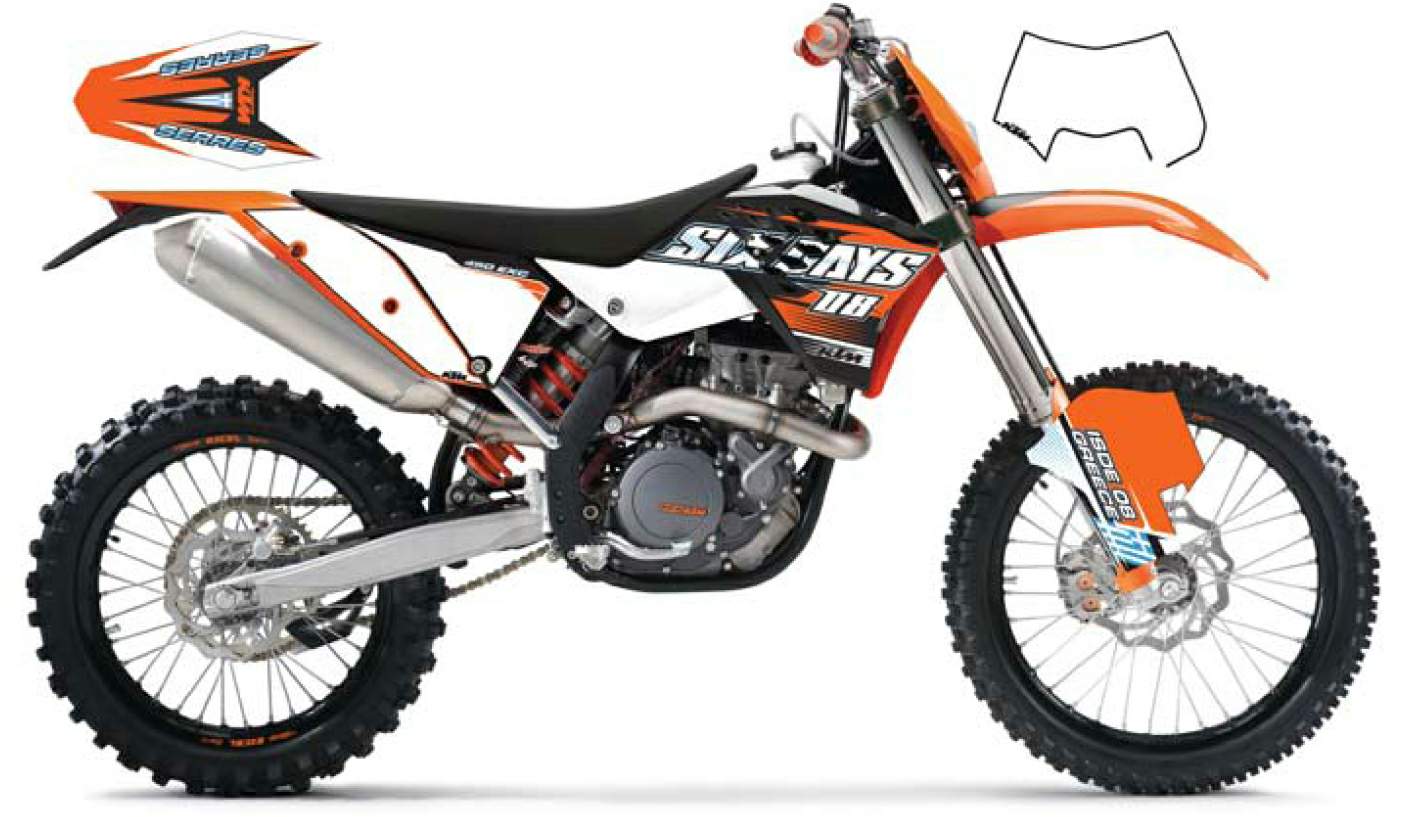

KTM 530 EXC Six Days (2009) technical specifications
KTM 530 EXC Six Days is produced in 2009. Engine is Four stroke, single cylinder, SOHC, 4 valves per cylinder, displacement 510.4 cc / 31.1 in KTM 530 EXC Six Days weighs 114 kg / 251 lbs. KTM 530 EXC Six Days has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 530 EXC Six Days |
| Years: | 2009 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Capacity: | 510.4 cc / 31.1 in |
| Bore x Stroke: | 95 x 72 mm |
| Coompression Ratio: | 11.9:1 |
| Cooling System: | Liquid cooled |
| Lubrication: | Pressure circulation lubrication with two rotor pumps |
| Induction: | Keihin MX FCR 3900J |
| Spark Plug: | NGK LKAR 8AI - 9 |
| Ignition: | CDI Kokusan 4K-3 |
| Battery: | YTX5L-BS 12V 4Ah, maintenance free |
| Starting: | Electric & kick |
| Clutch: | Wet, multi-disc |
| Transmission: | 6 Speed |
| Primary Drive Ratio: | 33:76 |
| Gear Ratios: | 1st 14:34 / 2nd 17:31 / 3rd 19:28 / 4th 22:26 / 5th 24:23 / 6th 26:21 |
| Final Drive Ratio: | 15:45 |
| Final Drive: | Chain, 5/8 x 1/4" |
| Frame: | Central tube chrome-moly-steel frame |
| Front Suspension: | WP 4860 MXMA PA usd fork |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | WP Suspension PDS 5018 DCC, aluminium swing arm |
| Rear Wheel Travel: | 335 mm / 13.2 in |
| Front Brakes: | Single 260 mm disc, floating caliper |
| Rear Brakes: | Single 220 mm disc, floating caliper |
| Front Tyre: | 90/90 - 21 M/C 54M M+S TT, Metzeler MCE 6 Days Extreme |
| Rear Tyre: | 140/80 - 18 M/C 70M M+S TT, Metzeler MCE 6 Days Extreme |
| Steering Head Angle: | 63.5° |
| Wheelbase: | 1475 mm / 58.1 in |
| Ground Clearance: | 380 mm / 15.1 in |
| Seat Height: | 925 mm / 36.4 in |
| Dry Weight: | 114 kg / 251 lbs |
| GVWR: | 335 kg / 739 lbs |
| Engine Oil Capacity: | 0.60 L / 0.63 US qt / 0.50 Imp qt, full synthetic oil (Motorex Power Synt 4T 10W/50) |
| Fuel Capacity: | 9.0 L / 2.4 US gal / 2.0 Imp gal |
| Fuel Reserve: | 2 L / 2.1 US qt / 1.8 Imp qt |
| Review: | 1000PS |
