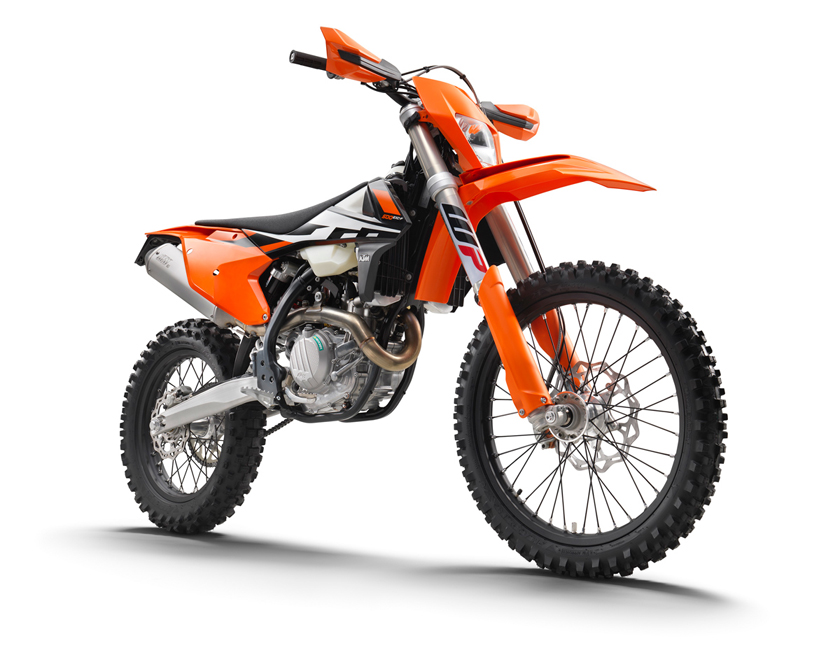

KTM 450 EXC-F (2017-18) technical specifications

KTM 450 EXC-F is produced in 2017-18. Engine is Four stroke, single cylinder, SOHC, 4 valves per cylinder, displacement 449.3 cc / cu-in KTM 450 EXC-F weighs 106 kg / 233.7 lbs. KTM 450 EXC-F has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	450 EXC-F
Years:	2017-18
Engine:	Four stroke, single cylinder, SOHC, 4 valves per cylinder
Capacity:	449.3 cc / cu-in
Bore x Stroke:	95 x 63.4 mm
Compression Ratio:	11.9:1
Lubrication:	Pressure lubrication with 2 rotor pumps
Induction:	Keihin MX FCR 39 carburetor
Ignition:	Keihin EMS
Starting:	Electric
Clutch:	Wet, DDS multi-disc clutch, Brembo hydraulics
Transmission:	6 Speed
Primary Drive Ratio:	31:76
Secondary Gear Ratio:	14:52
Final Drive:	Chain X-Ring 5/8 x 1/4″
Frame:	25CrMo4 steel central-tube frame
Front Suspension:	WP 4860 MA upside-down fork
Front Wheel Travel:	300 mm / 11.8 in
Rear Suspension:	WP Xplor PDS shock absorber
Rear Wheel Travel:	310 mm / 1.2 in
Front Brakes:	Single 260 mm disc, floating caliper
Rear Brakes:	Single 220mm disc, floating caliper
Front Tyre:	90/90 - 21
Rear Tyre:	140/80 - 18
Steering Head Angle:	63.5°
Wheelbase:	1482 mm / 58.3 in
Seat Height:	960 mm / 37.8 in
Ground Clearance:	355 mm / 14.0 in
Dry Weight:	106 kg / 233.7 lbs
Fuel Capacity:	8.5 Litres / 2.2 US gal
