KTM 390 Adventure R (2025) technical specifications

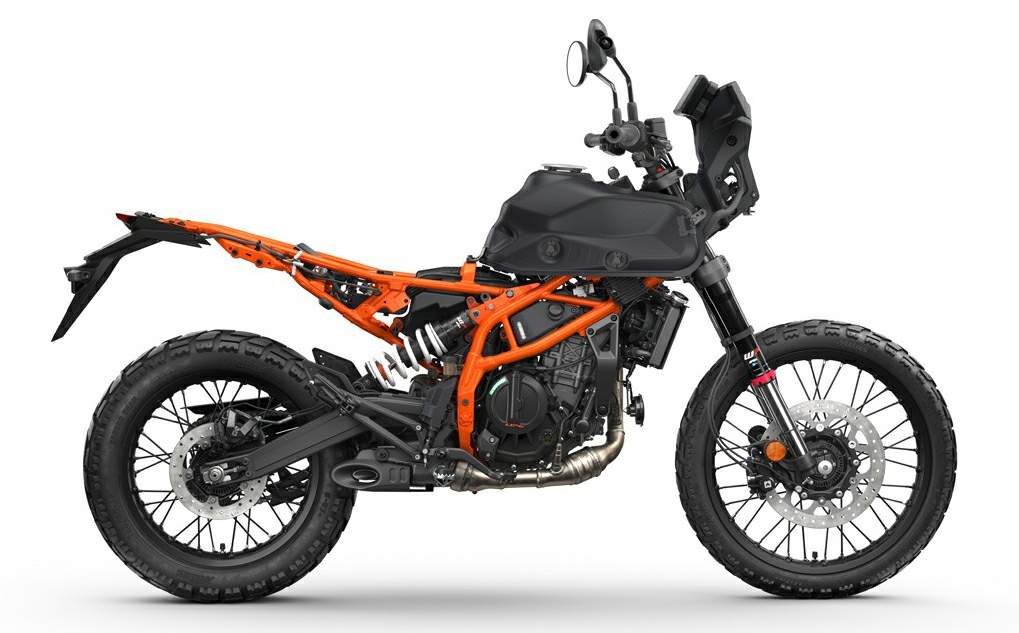

KTM 390 Adventure R is produced in 2025. Engine is Four stroke, single cylinder, DOHC with finger followers, 4 valves, displacement 398.7 cc / 24.3 cu-in , produces power 33 kW / 44.3 hp @ 8500 rpm and 39 Nm / 28.7 lb-ft @ 7000 rpm. KTM 390 Adventure R wet weight is 165 kg / 364 lbs. KTM 390 Adventure R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	390 Adventure R
Years:	2025
Engine:	Four stroke, single cylinder, DOHC with finger followers, 4 valves
Capacity:	398.7 cc / 24.3 cu-in
Bore x Stroke:	89 x 64 mm
Cooling System:	Liquid Cooled
Compression Ratio:	12.6:1
Induction:	Bosch fuel injection, 46 mm throttle body
Emission:	EURO 5+
Lubrication:	Wet sump
EMS:	Bosch EMS with RBW
Starting:	Electric
Max Power:	33 kW / 44.3 hp @ 8500 rpm
Max Torque:	39 Nm / 28.7 lb-ft @ 7000 rpm
Clutch:	PASC slipper clutch, mechanically operated
Transmission:	6 Speed
Primary Drive:	86:33
Final Drive:	Chain 520-X Ring
Frame:	Steel trellis frame, powder coated, with bolt-on subframe
Front Suspension:	43mm WP APEX 43, compression and rebound adjustble, 30 clicks
Front Wheel Travel:	230 mm / 9.1 in
Rear Suspension:	WP APEX Split Piston, preload with top ring and rebound, 20 clicks
Rear Wheel Travel:	230 mm / 9.1 in
Front Brakes:	Single 320 mm disc, Bybre axial calipers, two piston
Rear Brakes:	Single 240 mm disc, Bybre floating 1 piston caliper
ABS:	Bosch 10.3 Modular with Offroad mode
Wheels:	Wire spoke, aluminium rims
Front Wheel:	21 x 1.85
Rear Wheel:	18 x 2.5
Front Tyre:	90/90 x R21 M/C 54T M+S
Rear Tyre:	140/80 x R18 M/C 70T M+S
Steering Head Angle:	63.1?
Seat Height:	870 mm / 34.3 in
Wheelbase:	1481 mm / 58.3 in
Wet Weight:	165 kg / 364 lbs
Fuel Capacity:	14 L / 3.7 US gal
