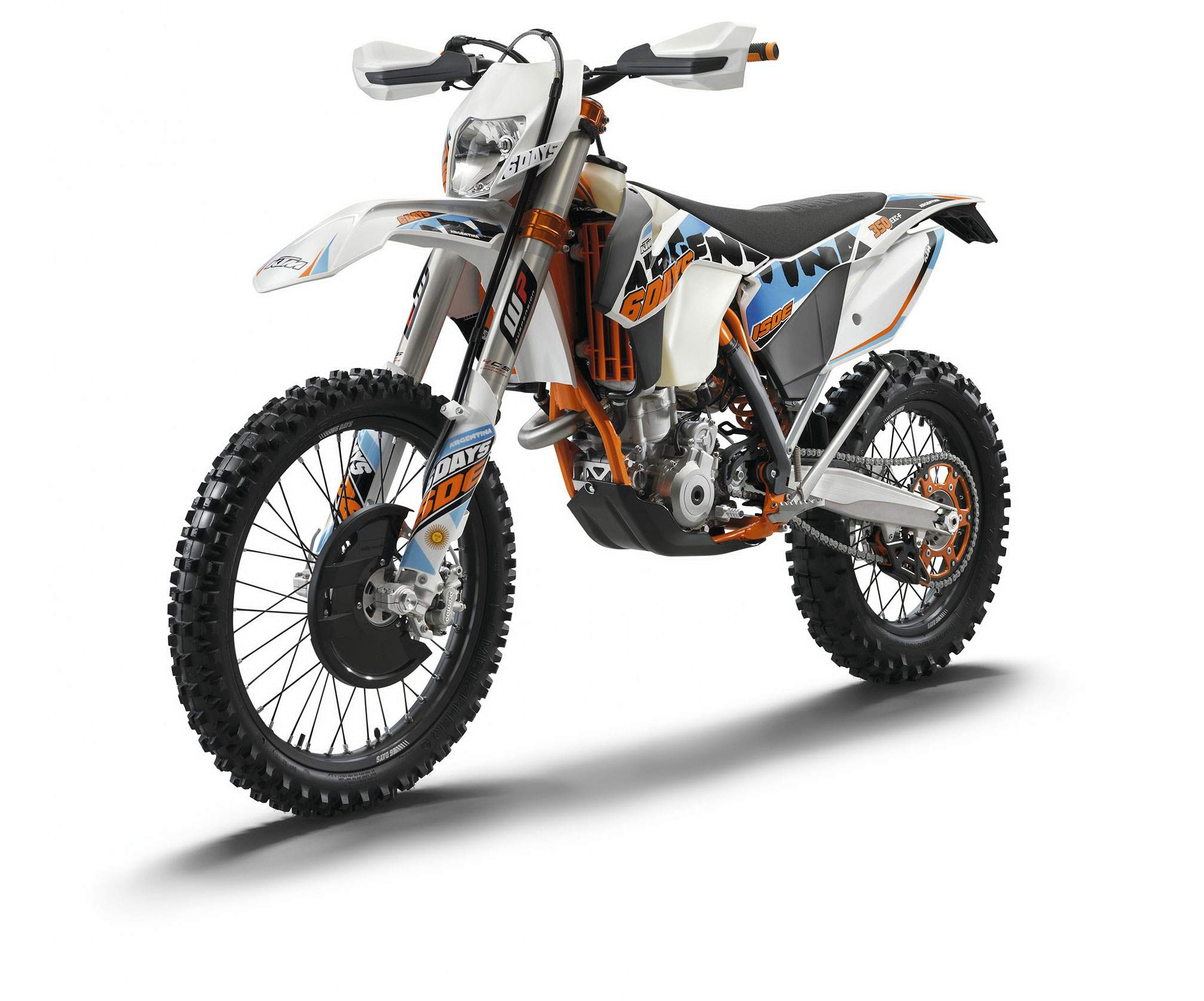

KTM 350 EXC-F Enduro (2015-16) technical specifications
KTM 350 EXC-F Enduro is produced in 2015-16. Engine is Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinde, displacement 349.7 cc / 21.3 cu in KTM 350 EXC-F Enduro weighs 107.5 kg / 237 lbs. KTM 350 EXC-F Enduro has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 350 EXC-F Enduro |
| Years: | 2015-16 |
| Engine: | Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinde |
| Capacity: | 349.7 cc / 21.3 cu in |
| Bore x Stroke: | 88 x 57.5 mm |
| Compression Ratio: | 12.3:1 |
| Cooling System: | Liquid cooled |
| Lubrication: | Twin oil pumps |
| Induction: | Keihin EFI, flow restrictor 42 mm |
| Spark Plug: | NGK LMAR9AI-8 |
| Ignition: | Keihin EMS |
| Starting: | Kick- and (EXC-E electric starter) |
| Battery: | YTX4L-BS, 12V 3Ah, maintenance free |
| Clutch: | Wet multi-disc clutch, Brembo hydraulics |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Gear Ratios: | 1st 14:32 / 2nd 16:26 / 3rd 20:25 / 4th 22:23 / 5th 25:22 / 6th 26:20 |
| Primary Drive Ratio: | 24:73 |
| Final Drive Ratio: | 14:52 (13:52) |
| Frame: | Central double-cradle-type 25CrMo4, subframe aluminium |
| Front Suspension: | WP Suspension Up Side Down 4860 MXMA PA |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | WP Suspension PDS 5018 DCC |
| Rear Wheel Travel: | 335 mm / 13.1 in |
| Front Brakes: | Single 260 mm disc, 2 piston caliper |
| Rear Brakes: | Single 220 mm disc, 1 piston caliper |
| Front Tyre: | 90/90 - 21 M/C 54M M+S TT |
| Rear Tyre: | 140/80 - 18 M/C 70M M+S TT |
| Steering Head Angle: | 63.5° |
| Wheelbase: | 1482 mm / 58.3 in |
| Seat Height: | 970 mm / 38.19 in |
| Ground Clearance: | 345 mm / 13.58 in |
| Dry Weight: | 107.5 kg / 237 lbs |
| GVWR: | 335 kg / 739 lbs |
| Engine Oil Capacity: | 1.2 Litres / 1.3 US qt / 1.1 Imp qt |
| Fuel Capacity: | 9 Litres / 2.4 US gal / 2.0 Imp gal |
