KTM 300 EXC CHAMPION EDITION (2025) technical specifications

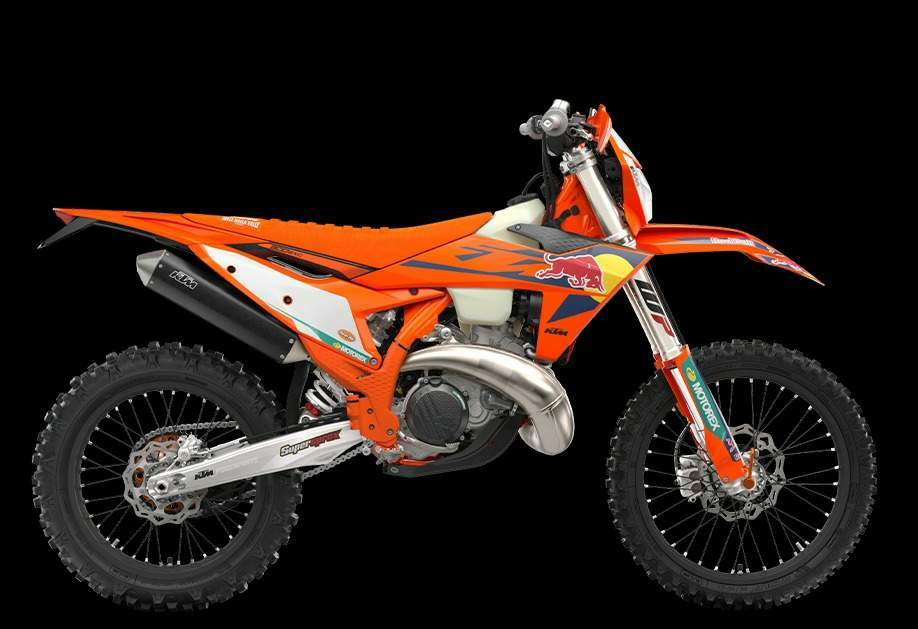

KTM 300 EXC CHAMPION EDITION is produced in 2025. Engine is Two stroke, two stroke, single cylinder, with reed intake and exhaust control, displacement 293.2 cc / 17.9 cu-in KTM 300 EXC CHAMPION EDITION has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 300 EXC CHAMPION EDITION |
| Years: | 2025 |
| Engine: | Two stroke, two stroke, single cylinder, with reed intake and exhaust control |
| Capacity: | 293.2 cc / 17.9 cu-in |
| Bore x Stroke: | 72 x 72 mm |
| Lubrication: | Electronically Regulated Oil Pump |
| Cooling System: | Liquid cooled |
| Induction: | Keihin EFI, 39 mm throttle body |
| Ignition: | Vitesco Technologies EMS |
| Starting: | Electric |
| Clutch: | Wet, DDS multi-disc clutch, Brembo hydraulics |
| Transmission: | 6 Speed |
| Primary Drive: | 26:72 |
| Secondary Gear Ratio: | 13:45 |
| Final Drive: | X-Ring 520 |
| Frame: | Central double-cradle-type 25CrMo4 steel |
| Front Suspension: | 48 mm WP XACT-USD |
| Front Wheel Travel: | 300 mm / 11.8 in |
| Rear Suspension: | WP XACT Monoshock with PDS, Aluminium-reinforced polyamide |
| Rear Wheel Travel: | 310 mm / 12.2 in |
| Front Brakes: | Single 260 mm disc, 2 piston caliper |
| Rear Brakes: | Single 220 mm disc, 1 piston caliper |
| Front Wheel: | 21 x 1.6 in |
| Rear Wheel: | 18 x 2.15 in |
| Front Tyre: | 80/100-21 |
| Rear Tyre: | 110/100-18 |
| Steering Head Angle: | 63.9? |
| Wheelbase: | 1489 mm / 58.6 in |
| Ground Clearance: | 347 mm / 13.7 in |
| Seat Height: | 963 mm / 37.9 in |
| Weight without fuel: | 104.6 kg / 230.6 lbs |
| Fuel Capacity: | 9 Litres / 2.4 US gal |
