Technical specifications
|

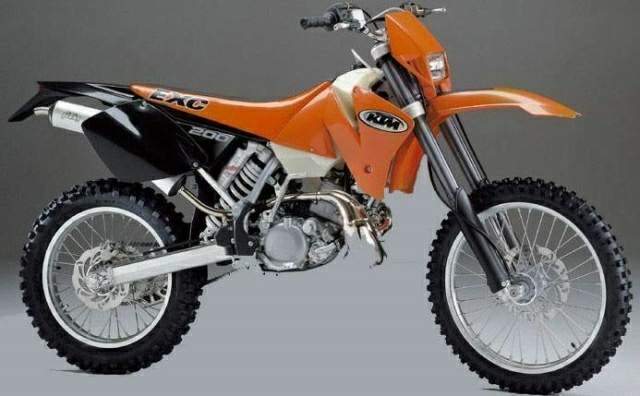

| Model: |
200 EXC |
| Years: |
1999-2002 |
|
Engine:
|
Single cylinder, 2-stroke
|
|
Capacity:
|
193 cc / 11.8 cu in
|
|
Bore x Stroke:
|
64 x 60 mm
|
|
Compression Ratio:
|
12.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Oil:
|
1:40 mixture, 2-stroke, Shell Racing X
|
|
Induction:
|
Keihin PWK 39 AGI flat slide
|
|
Spark Plug:
|
NGK BR8EG
|
|
Ignition:
|
Kokusan 2K-3 digital
|
|
Starting:
|
Kick
|
|
Clutch:
|
Wet, multi-plate, hydraulically operated
|
|
Transmission:
|
6 Speed
|
|
Primary Drive Ratio:
|
23/73
|
|
Gear Ratios:
|
1st 12:33 / 2nd 15:31 / 3rd 17:28 / 4th 19:26 / 5th 22:25 or 17:17 / 6th 22:20
|
|
Final Drive Ratio:
|
14/48
|
|
Final Drive:
|
Chain, 5/8 x 1/4"
|
|
Frame:
|
Central chrome-moly-steel frame
|
|
Front Suspension:
|
Marzocchi Magnum 45 fork
|
|
Front Wheel Travel:
|
285 mm / 11.2 in
|
|
Rear Suspension:
|
WP Progressive Damping System shock absorber, aluminium swingarm
|
|
Rear Wheel Travel:
|
320 mm / 12.6 in
|
|
Front Brakes:
|
Disc brake with carbon-steel brake disc Ø 260 mm (10.2 in), brake caliper floated
|
|
Rear Brakes:
|
Disc brake with carbon-steel brake disc Ø 220 mm (8.7 in), brake caliper floated
|
|
Front Tyre:
|
90/90 - 21" 54R
|
|
Rear Tyre:
|
120/90 - 18" 65R
|
|
Steering Head Angle:
|
63o
|
|
Wheelbase:
|
1461 mm / 57.3 in
|
|
Ground Clearance:
|
385 mm / 15.2 in
|
|
Seat Height:
|
925 mm / 36.4 in
|
|
Dry Weight:
|
97 kg / 214 lbs
|
|
Fuel Capacity:
|
9.5 L or 12 L / 2.5 US gal or 3.2 US gal / 2.1 Imp gal or 2.6 Imp gal
|
