Technical specifications
|
| Model: |

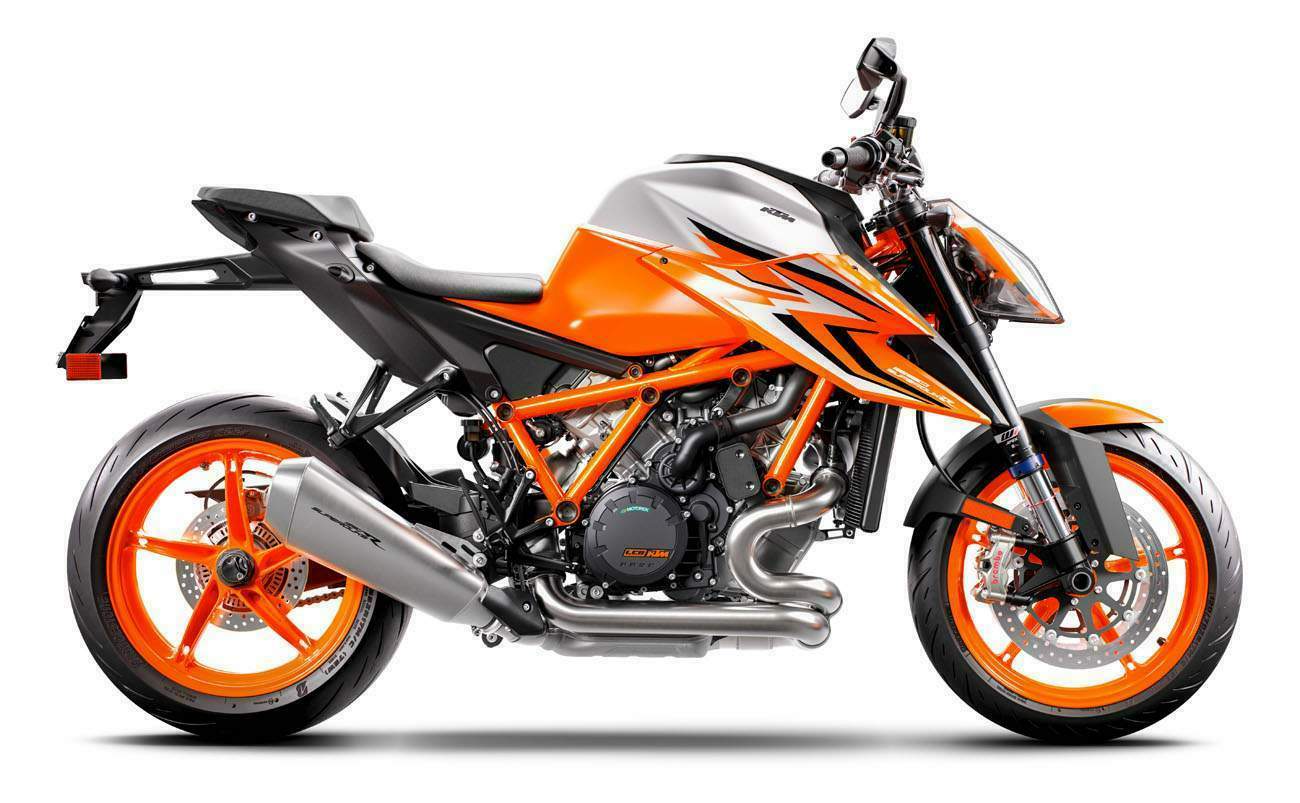

1290 Super Duke R Evo |
| Years: |
2022 |
|
Production:
|
500 Units
|
|
Engine:
|
Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
1301 cc / 79.3 cu-in
|
|
Bore x Stroke:
|
108 x 71 mm
|
|
Compression Ratio:
|
-
|
|
Cooling System:
|
Liquid cooled
|
|
Exhaust:
|
Akrapovič "slip-on line" exhaust system, Made from titanium with a carbon fiber end cap
|
|
Emission:
|
EURO5
|
|
Lubrication:
|
Forced oil lubrication with 3 oil pumps
|
|
Ignition:
|
Keihin EMS with RBW and cruise control, double ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
132 kW / 180 hp
|
|
Max Torque:
|
140 Nm / 103 lb-ft
|
|
Clutch:
|
PASC (TM) slipper clutch, hydraulically actuated
|
|
Transmission:
|
6-speed
|
|
Final Drive:
|
525 X-Ring
|
|
Frame:
|
Chrome-moly tubular space frame, powder-coated
|
|
Subframe:
|
Carbon fiber
|
|
Front Suspension:
|
48 mm USD WP Semi-active Suspension (GEN.2)
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
WP Semi-active Rear Shock (GEN.2)
|
|
Rear Wheel Travel:
|
140 mm / 5.5 in
|
|
Front Brakes:
|
2 x 320 mm Brembo Stylema Monobloc four piston, radially mounted caliper
|
|
Rear Brakes:
|
Single 240 mm disc
|
|
ABS System:
|
Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)
|
|
Wheels:
|
7 spoke forged wheels
|
|
Front Rim:
|
3.5 x 17
|
|
Rear Rim:
|
6.00 x 17
|
|
Front Tyre:
|
Michelin Power Cup2
|
|
Rear Tyre:
|
Michelin Power Cup2
|
|
Steering Head Angle:
|
64.6°
|
|
Seat Height:
|
837 mm / 32.9 in
|
|
Ground Clearance:
|
160 mm / 6.2 in
|
|
Dry Weight:
|
180 kg / 396.8 lbs
|
|
Fuel Capacity:
|
16 Litres / 4.2 US gal
|
